商品編號: TACHII-SJP-H3PA
TACHII-SJP, Jeep Cable for Monitoring at Studios, SJP series, 優質攝影棚廣播系統 (數位影像+聲音+電源) 多種組合傳輸電纜線
Please use as monitor corresponding to HDTV in broadcasting studios.

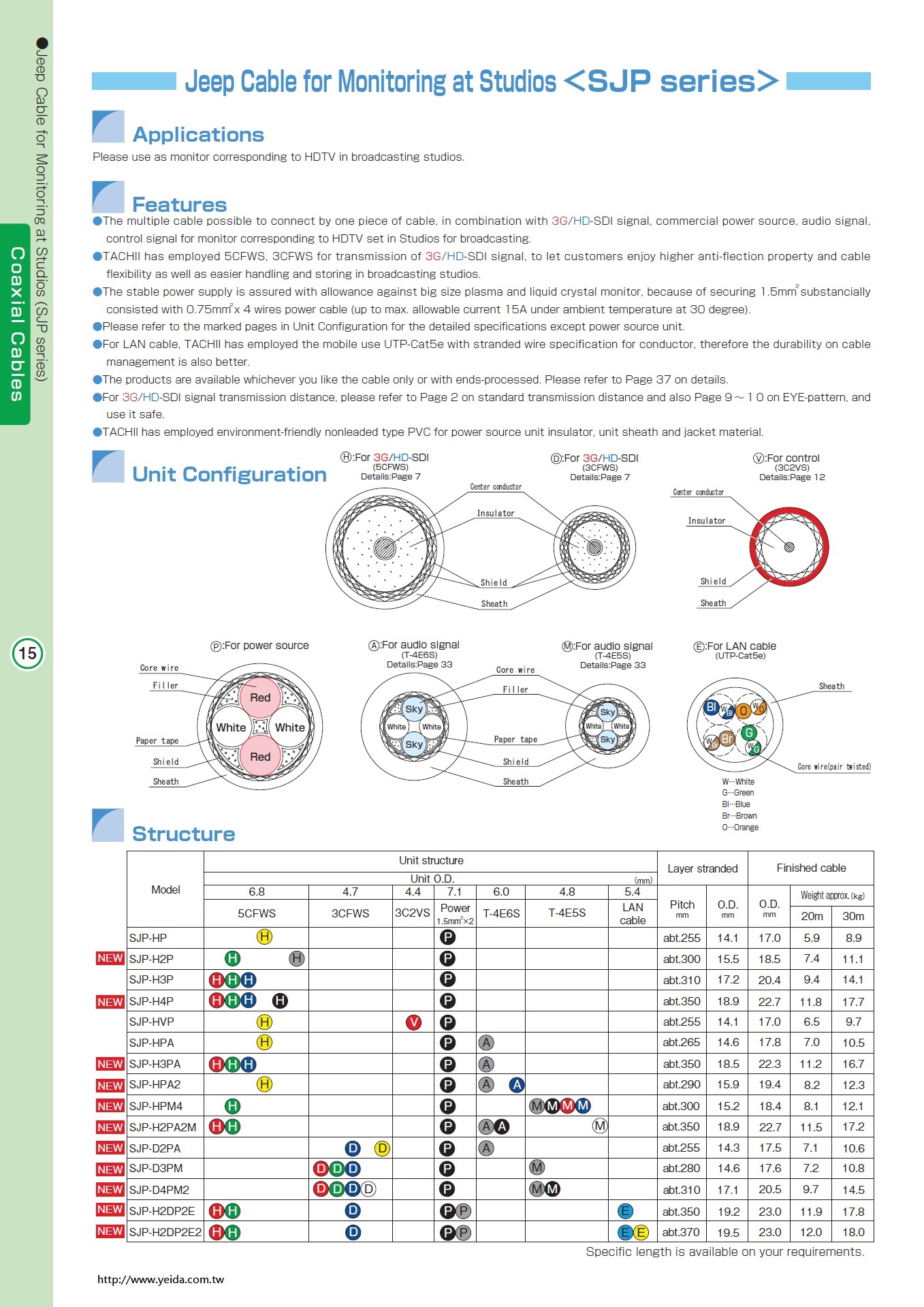

Jeep Cable for Monitoring at Studios<SJP series>
Applications
Please use as monitor corresponding to HDTV in broadcasting studios.
Features
●The multiple cable possible to connect by one piece of cable, in combination with 3G/HD-SDI signal, commercial power source, audio signal,
control signal for monitor corresponding to HDTV set in Studios for broadcasting.
●TACHII has employed 5CFWS, 3CFWS for transmission of 3G/HD-SDI signal, to let customers enjoy higher anti-flection property and cable
flexibility as well as easier handling and storing in broadcasting studios.
●The stable power supply is assured with allowance against big size plasma and liquid crystal monitor, because of securing 1.5mm substancially
consisted with 0.75mm x 4 wires power cable (up to max. allowable current 15A under ambient temperature at 30 degree).
●Please refer to the marked pages in Unit Configuration for the detailed specifications except power source unit.
●For LAN cable, TACHII has employed the mobile use UTP-Cat5e with stranded wire specification for conductor, therefore the durability on cable
management is also better.
●The products are available whichever you like the cable only or with ends-processed. Please refer to Page 37 on details.
●For 3G/HD-SDI signal transmission distance, please refer to Page 2 on standard transmission distance and also Page 9~10 on EYE-pattern, and
use it safe.
●TACHII has employed environment-friendly nonleaded type PVC for power source unit insulator, unit sheath and jacket material.
