F11SSV-APD 75 Ohm Coaxial Cable Drop Cable

F11SSV-APD

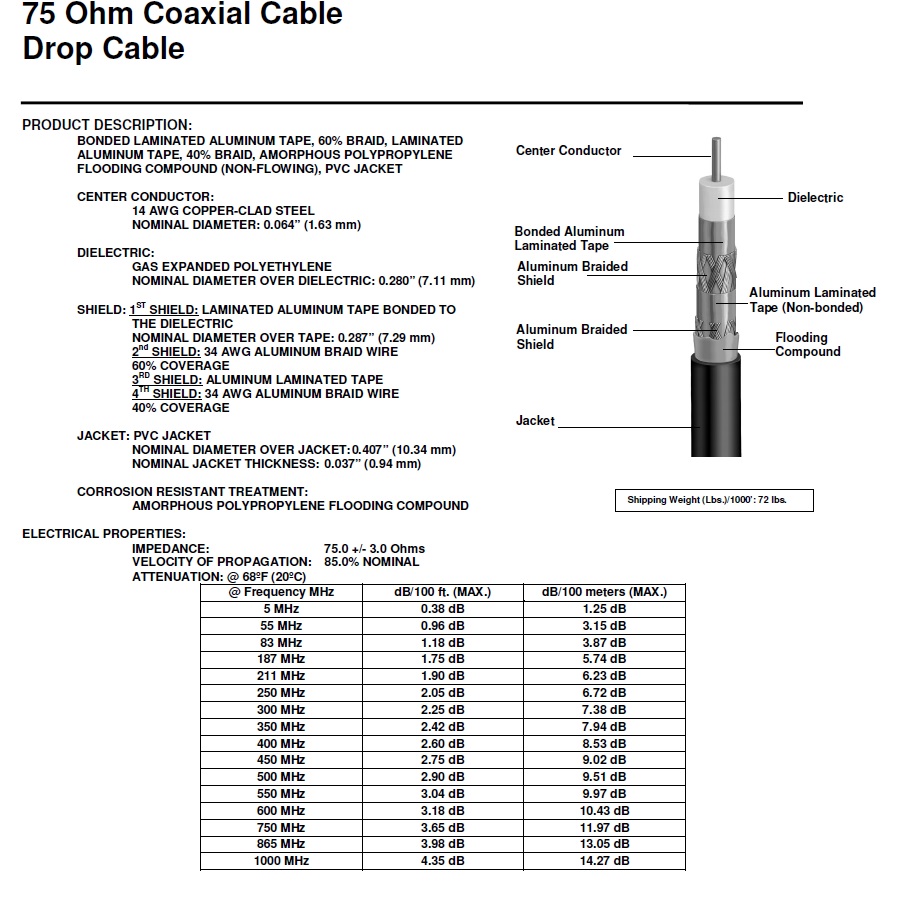

Commscope RG11 F11SSV-APD 75 Ohm Coaxial Cable Drop Cable

PRODUCT DESCRIPTION:

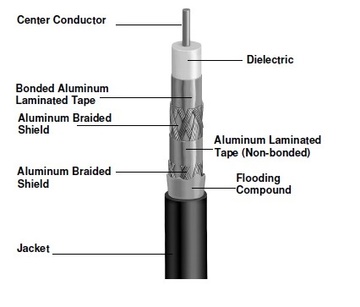

BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, LAMINATED ALUMINUM TAPE, 40% BRAID, AMORPHOUS POLYPROPYLENE FLOODING COMPOUND (NON-FLOWING), PVC JACKET

CENTER CONDUCTOR:
14 AWG COPPER-CLAD STEEL NOMINAL DIAMETER: 0.064” (1.63 mm)

DIELECTRIC:
GAS EXPANDED POLYETHYLENE NOMINAL DIAMETER OVER DIELECTRIC: 0.280” (7.11 mm)

SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC NOMINAL DIAMETER OVER TAPE: 0.287” (7.29 mm) 2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE 60% COVERAGE 3RD SHIELD: ALUMINUM LAMINATED

TAPE 4TH SHIELD:
34 AWG ALUMINUM BRAID WIRE 40% COVERAGE

JACKET:
PVC JACKET NOMINAL DIAMETER OVER JACKET: 0.407” (10.34 mm) NOMINAL JACKET THICKNESS: 0.037” (0.94 mm) CORROSION RESISTANT TREATMENT: AMORPHOUS POLYPROPYLENE FLOODING COMPOUND

ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION: @ 68ºF (20ºC)

@ Frequency MHz		dB/100 ft. (MAX.)		dB/100 meters (MAX.)
5 MHz		0.38 Db		1.25 dB
55 MHz		0.96 dB		3.15 dB
83 MHz		1.18 dB		3.87 dB
187 MHz		1.75 dB		5.74 dB
211 MHz		1.90 dB		6.23 dB
250 MHz		2.05 dB		6.72 dB
300 MHz		2.25 dB		7.38 dB
	350 MHz	2.42 dB	7.94 dB
	400 MHz	2.60 dB	8.53 dB
	450 MHz	2.75 dB	9.02 dB
	500 MHz	2.90 dB	9.51 dB
	550 MHz	3.04 dB	9.97 dB
	600 MHz	3.18 dB	10.43 dB
	750 MHz	3.65 dB	11.97 dB
	865 MHz	3.98 dB	13.05 dB
	1000 MHz	4.35 dB	14.27 dB
