    Airport Lighting Airport Pavement Cable 600V 機場路面照明電纜
    看原圖
    		30209011

    商品編號: Kabel-Pavement

    Airport Lighting Airport Pavement Cable 600V 機場    路面照明電纜

    Airport Pavement Cable 600V

    Airport Pavement Cable 600V

    Applications

    These cables are used as airport pavement cable for secondary electrical circuits.

    這些電纜用作輔助電路機場道面線。

    Standards

    FAA 150/5345-30

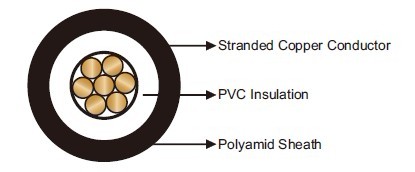

    Construction

    Conductor: Stranded copper conductor.
    Insulation: PVC.
    Sheath: Polyamid (nylon).

    Technical Data

    Rated Voltage Uo/U (Um)

    600V

    Operating Temperatures

    -45℃~+85℃

    Minimum Bending Radius

    5×OD

    Abrasion Resistant

    Yes

    UV Resistant

    Yes

    Oil Resistant

    Yes

    Dimensions and Weight

    Construction

    Nominal Insulation
    Thickness

    Nominal Sheath
    Thickness

    Nominal Overall
    Diameter

    Nominal Weight

    No. ×mm²/AWG

    mm

    mm

    mm

    kg/km

    1×4 mm²

    0.6

    0.15

    4.1

    48

    1×12

    0.6

    0.15

    3.8

    41

    1×10

    0.8

    0.15

    4.9

    66
