    MIL-W-5086/1 Unshielded Aircraft Wire PVC/nylon PVC尼龍被覆軍規航空飛機用線
    看原圖
    		30206251

    商品編號: Kebel-A-M5086-1

    MIL-W-5086/1 Unshielded     Military Aircraft Wire PVC/nylon PVC尼龍被覆軍規航空飛機用電線

    Military Cable

    MIL-W-5086/1 Unshielded Aircraft Wire

    Application and Description:
    These PVC insulated single-core MIL-W-5086/1 wires are used in electrical or electronic applications. These cables should be considered for use in any application where it may be exposed to chemicals, but-through, impact, abrasion, or other abuse. This wire offers excellent resistance to moisture, fuels, hydraulic fluids, and other common industrial solvents.

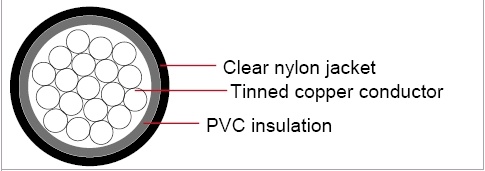

    Construction:

    Conductor: Stranded soft annealed tinned copper

    Insulation: Polyvinyl chloride (PVC)

    Jacket: Clear nylon jacket

    Characteristics:

    Temperature Rating: 105°C

    Voltage Rating: 600 volts

    Mil-Spec Wire

    Color Code:10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size Conductor Stranding Conductor Diam. Nom. O.D. Approx LBS/MFT
        in mm in mm
    22 19/34 0.032 0.813 0.068 1.727 4
    20 19/32 0.041 1.041 0.078 1.981 6
    18 19/30 0.051 1.295 0.088 2.235 8.3
    16 19/29 0.059 1.499 0.098 2.489 10.3
    14 19/27 0.072 1.829 0.117 2.972 15.7
    12 37/28 0.093 2.362 0.137 3.48 23.7
    10 37/26 0.112 2.845 0.159 4.039 35
