    MIL-W-5086/2 Unshielded Aircraft Wire 軍規航空飛機用線
    看原圖
    		30206252

    商品編號: Kebel-A-M5086-2

    MIL-W-5086/2 Unshielded Military Aircraft Wire nylon or Impregnated glass braid, 尼龍或浸漬玻璃絲編織軍規航空飛機用電線

    Military Cable

    MIL-W-5086/2 Unshielded Aircraft Wire

    Application and Description:
    These PVC insulated single-core MIL-W-5086/2 wires are used in electrical or electronic applications. These cables should be considered for use in any application where it may be exposed to chemicals, but-through, impact, abrasion, or other abuse. This wire offers excellent resistance to moisture, fuels, hydraulic fluids, and other common industrial solvents.

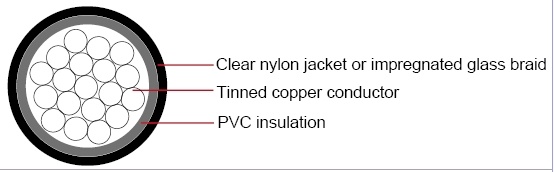

    Construction:



    Conductor: Stranded soft annealed tinned copper

    Insulation: Polyvinyl chloride (PVC)

    Jacket: 22 AWG – 10 AWG: Clear nylon

    8 AWG – 4/0 AWG: Impregnated glass braid

    Characteristics

    Temperature Rating: 105°C

    Voltage Rating: 600 volts

    Mil-Spec Wire

    Color Code:

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size Conductor Stranding Conductor Diam. Nom. O.D. Approx LBS/MFT
        in mm in mm
    22 19/34 0.032 0.813 0.073 1.854 4.2
    20 19/32 0.041 1.041 0.083 2.108 6.2
    18 19/30 0.051 1.295 0.093 2.362 8.6
    16 19/29 0.059 1.499 0.103 2.616 10.7
    14 19/27 0.072 1.829 0.126 3.2 16.7
    12 37/28 0.093 2.362 0.143 3.632 25
    10 37/26 0.112 2.845 0.189 4.801 40.1
    8 133/29 0.169 4.293 0.239 6.071 66
    6 33/27 0.213 5.41 0.293 7.442 104.6
    4 133/25 0.269 6.833 0.349 8.865 160.1
    2 665/30 0.327 8.306 0.42 10.668 245
    1 817/30 0.38 9.652 0.467 11.862 304
    1/0 1045/30 0.413 10.49 0.525 13.335 392
    2/0 1330/30 0.475 12.065 0.587 14.91 493
    3/0 1661/30 0.535 13.589 0.64 16.256 604
    4/0 2104/30 0.6 15.24 0.725 18.415 770
