    MIL-W-25038/1 Military Cable軍規線
    看原圖
    		30206260

    商品編號: Kebel-A-M25038-1

    MIL-W-25038/1 Military Cable軍規線

    Military Cable

    MIL-W-25038/1

    Application and Description:

    These Composite Inorganic Dielectric insulated single-core MIL-W-25038/1 cables are used for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. This heavy-duty, non-asbestos construction offers excellent mechanical performance and abrasion resistance.

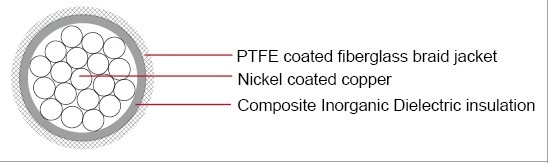

    Construction:



    Conductor: Stranded 27% nickel coated copper conductor

    Insulation: Composite Inorganic Dielectric Insulation

    Jacket: Polytetrafluoroethylene (PTFE) coated fiberglass braid jacket

    Identification: Surface printed per MIL-W-25038

    Characteristics:

    Temperature Range: -55°C +260°C
    Voltage Rating: 600 volts

    Color coded: MIL-STD-104

    Dimensions and Weight:


    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max. O.D.

    Min. O.D.

    Max. Resistance @ 20°C OHMS/MFT

    Approx LBS/MFT


    in

    mm

    in

    mm

    in

    mm





    22

    19/34

    0.031

    0.790

    0.116

    2.946

    0.100

    2.540

    23.700

    10.0

    20

    19/32

    0.040

    1.020

    0.125

    3.175

    0.109

    2.769

    14.600

    12.0

    18

    19/30

    0.050

    1.270

    0.135

    3.429

    0.119

    3.023

    9.400

    15.0

    16

    19/29

    0.056

    1.420

    0.147

    3.734

    0.127

    3.226

    6.850

    19.0

    14

    19/27

    0.072

    1.830

    0.170

    4.318

    0.150

    3.810

    4.320

    25.0

    12

    19/25

    0.090

    2.290

    0.185

    4.699

    0.165

    4.191

    2.780

    35.0

    10

    49/27

    0.122

    3.099

    0.230

    5.842

    0.210

    5.334

    1.680

    55.0

    8

    133/29

    0.190

    4.039

    0.280

    7.112

    0.256

    6.502

    0.936

    85.0

    6

    133/27

    0.200

    5.080

    0.342

    8.687

    0.318

    8.077

    0.591

    127.0

    4

    133/25

    0.253

    6.426

    0.407

    10.338

    0.383

    9.728

    0.375

    192.0

    2

    665/30

    0.315

    8.001

    0.484

    12.294

    0.460

    11.684

    0.241

    291.0

    1

    817/30

    0.350

    8.890

    0.533

    13.538

    0.497

    12.624

    0.196

    347.0

    1/0

    1035/30

    0.395

    10.033

    0.573

    14.554

    0.537

    13.640

    0.153

    415.0

    2/0

    1330/30

    0.446

    11.328

    0.635

    16.129

    0.595

    15.113

    0.120

    520.0

    3/0

    1672/30

    0.505

    12.827

    0.700

    17.780

    0.660

    16.764

    0.096

    648.0

    4/0

    2109/30

    0.562

    14.275

    0.770

    19.558

    0.730

    18.542

    0.077

    793.0
