    MIL-W-25038/3 Military Cable 軍規鐵氟龍航空飛機用線
    看原圖
    		30206262

    商品編號: Kebel-A-M25038-3

    MIL-W-25038/3 PTFE     Military Cable 軍規鐵氟龍航空飛機用線

    Military Cable

    MIL-W-25038/3

    Application and Description:

    These PTFE insulated single-core MIL-W-25038/3 cables are used in such aerospace applications as engine compartments, fire detection circuits, flight-critical circuits, and fly-by-wire systems. MIL-W-25038/3 (Thermazone IIIK) wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. MIL-W-25038/3(Thermazone IIIG) wires also meet or exceed the requirements of MIL-W-25083/3, but provide this performance at a lower cost through the use of an innovative insulation system.

    Construction:

    Conductor: 12-18 AWG: Stranded 27% Nickel coated copper conductor

    20-22 AWG: Stranded 27% Nickel coated high-strength copper alloy conductor

    Insulation:

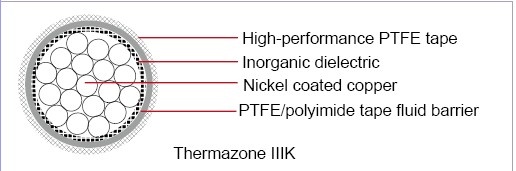

    Thermazone IIIK:

    Outer: PTFE/polyimide tape fluid barrier.

    Inner: Inorganic dielectric

    Thermazone IIIG:

    Outer: PTFE-coated fiberglass fluid barrier.

    Inner: Inorganic dielectric

    Jacket: Fused High-Performance Polytetrafluoroethylene (PTFE) Tape Jacket

    Identification: Surface printed per MIL-W-25038

    Characteristics:

    Temperature Range: -55°C +260°C

    Voltage Rating: 600 volts

    Color coded: MIL-STD-104

    Dimensions and Weight:



    M25038/3 Thermazone IIIK



    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max. O.D.

    Min. O.D.

    Max. Resistance @ 20°C OHMS/MFT

    Approx LBS/MFT





    in

    mm

    in

    mm

    in

    mm



    22

    19/34

    0.031

    0.787

    0.054

    1.372

    0.040

    1.016

    23.700

    4.2

    20

    19/32

    0.040

    1.016

    0.083

    2.108

    0.048

    1.219

    15.300

    9.00

    18

    19/30

    0.050

    1.270

    0.097

    2.464

    0.065

    1.651

    8.500

    10.5

    16

    19/29

    0.056

    1.422

    0.103

    2.616

    0.068

    1.727

    6.660

    13.5

    14

    19/27

    0.072

    1.829

    0.123

    3.124

    0.097

    2.464

    4.320

    19.5

    12

    19/25

    0.090

    2.286

    0.142

    3.607

    0.100

    2.540

    2.780

    28.0


    M25038/3 Thermazone IIIG

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max. O.D.

    Min. O.D.

    Max. Resistance @ 20°C OHMS/MFT

    Approx LBS/MFT


    in

    mm

    in

    mm

    in

    mm





    22

    19/34

    0.031

    0.787

    0.075

    1.905

    0.055

    1.397

    23.700

    4.2

    20

    19/32

    0.040

    1.016

    0.083

    2.108

    0.048

    1.219

    15.300

    9.0

    18

    19/30

    0.050

    1.270

    0.097

    2.464

    0.065

    1.651

    8.500

    10.5

    16

    19/29

    0.056

    1.422

    0.103

    2.616

    0.068

    1.727

    6.660

    13.5

    14

    19/27

    0.072

    1.829

    0.123

    3.124

    0.097

    2.464

    4.320

    19.5

    12

    19/25

    0.090

    2.286

    0.142

    3.607

    0.100

    2.540

    2.780

    28.0
