    M81381/7 FEP -55°C + 200°C 600V Military Cable 鍍銀鐵氟龍耐高溫軍規航空飛機用線
    看原圖
    		30206318

    商品編號: Kebel-A-M81381-7

    M81381/7 FEP     -55°C + 200°C 600V Military Cable 鍍銀鐵氟龍耐高溫軍規航空飛機用線

    M81381/7

    Application and Description:

    These FEP/polyimide/FEP tape insulated single-core M81381/7 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

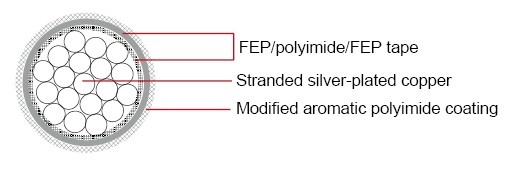

    Construction:

    Conductor: Stranded silver-plated copper conductor

    Insulation: FEP/polyimide/FEP tape insulation

    Insulation Wall Thickness: 0.0065”

    Jacket: modified aromatic polyimide coating

    Characteristics:

    Temperature Range: -55°C + 200°C

    Voltage Rating: 600 volts

    Color Code: MIL-STD-104 (See page 42 )

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max.

    Conductor Diam.

    Min.

    Max. O.D.

    Min. O.D.

    Maximum Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT





    in

    mm

    in

    mm

    in

    mm

    in

    mm



    26

    19/38

    0.019

    0.480

    0.018

    0.460

    0.034

    0.864

    0.031

    0.787

    38.40

    1.2

    24

    19/36

    0.024

    0.610

    0.023

    0.580

    0.037

    0.940

    0.034

    0.864

    24.30

    1.8

    22

    19/34

    0.030

    0.760

    0.029

    0.740

    0.044

    1.118

    0.041

    1.041

    15.10

    2.7

    20

    19/32

    0.038

    0.970

    0.037

    0.940

    0.052

    1.321

    0.049

    1.245

    9.19

    4.2

    18

    19/30

    0.048

    1.220

    0.046

    1.170

    0.062

    1.575

    0.059

    1.499

    5.79

    6.3

    16

    19/29

    0.054

    1.370

    0.052

    1.320

    0.068

    1.727

    0.065

    1.651

    4.52

    8.0

    14

    19/27

    0.068

    1.730

    0.065

    1.650

    0.082

    2.083

    0.078

    1.981

    2.88

    12.5

    12

    37/28

    0.087

    2.210

    0.084

    2.130

    0.101

    2.565

    0.097

    2.464

    1.90

    19.1

    10

    37/26

    0.110

    2.790

    0.106

    2.690

    0.124

    3.150

    0.120

    3.048

    1.19

    29.4
