    M81381/12 FEP nickel-plated Military Cable 鍍鎳鐵氟龍耐高溫軍規航空飛機用線
    看原圖
    		30206334

    商品編號: Kebel-A-M81381-12

    M81381/12 FEP nickel-plated Military Cable 鍍鎳鐵氟龍耐高溫軍規航空飛機用線

    M81381/12

    Application and Description:

    These FEP/polyimide/FEP tape insulated single-core M81381/12 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

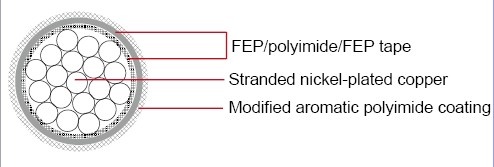

    Construction:



    Conductor: Stranded nickel-plated copper conductor

    Insulation: FEP/polyimide/FEP tape insulation

    Insulation Wall Thickness: 0.0065” (10 AWG and smaller) ,or polyamide braid(8 AWG and larger) (0.0084” or 0.0154” )

    Jacket: Modified aromatic polyimide coating

    Characteristics:

    Temperature Range: -55°C + 200°C

    Voltage Rating: 600 volts

    Color Code: MIL-STD-104 (See page 42 )

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:


    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max.

    Conductor Diam.

    Min.

    Max. O.D.

    Min. O. D.

    Maximum Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT


    in

    mm

    in

    mm

    in

    mm

    in

    mm





    24

    19/36

    0.024

    0.610

    0.023

    0.580

    0.045

    1.143

    0.040

    1.016

    25.90

    1.9

    22

    19/34

    0.031

    0.790

    0.029

    0.740

    0.050

    1.270

    0.045

    1.143

    16.00

    2.8

    20

    19/32

    0.039

    0.990

    0.037

    0.940

    0.058

    1.473

    0.053

    1.346

    9.77

    4.2

    18

    19/30

    0.049

    1.240

    0.046

    1.170

    0.068

    1.727

    0.063

    1.600

    6.10

    6.5

    16

    19/29

    0.055

    1.400

    0.052

    1.320

    0.074

    1.880

    0.068

    1.727

    4.76

    8.1

    14

    19/27

    0.059

    1.750

    0.065

    1.650

    0.087

    2.210

    0.081

    2.057

    3.00

    12.0

    12

    37/28

    0.089

    2.260

    0.084

    2.130

    0.107

    2.718

    0.100

    2.540

    1.98

    19.0

    10

    37/26

    0.112

    2.840

    0.106

    2.690

    0.129

    3.277

    0.122

    3.099

    1.24

    29.0

    8

    133/29

    0.169

    4.290

    0.158

    4.010

    0.206

    5.232

    0.188

    4.775

    0.70

    61.8

    6

    133/27

    0.212

    5.380

    0.198

    5.030

    0.251

    6.375

    0.228

    5.791

    0.44

    95.1

    4

    133/25

    0.268

    6.810

    0.250

    6.350

    0.306

    7.772

    0.280

    7.112

    0.28

    148.0

    2

    665/30

    0.340

    8.640

    0.320

    8.130

    0.378

    9.601

    0.350

    8.890

    0.18

    235.0
