    M81381/21 FEP tin-plated Military Cable 鍍錫鐵氟龍耐高溫軍規航空飛機用線
    看原圖
    		30206335

    商品編號: Kebel-A-M81381-21

    M81381/21 FEP tin-plated Military Cable 鍍錫鐵氟龍耐高溫軍規航空飛機用線

    M81381/21

    Application and Description:

    These FEP/polyimide/FEP tape insulated single-core M81381/21 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

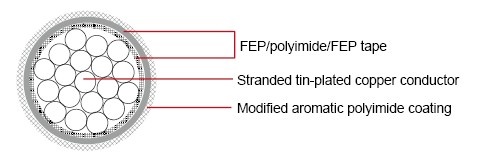

    Construction:

    Conductor: Stranded tin-plated copper conductor

    Insulation: FEP/polyimide/FEP tape insulation

    Insulation Wall Thickness: 0.0065”

    Jacket: modified aromatic polyimide coating

    Characteristics:

    Temperature Range: -55°C + 150°C

    Voltage Rating: 600 volts

    Color Code: MIL-STD-104 (See page 42 )

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max.

    Conductor Diam.

    Min.

    Max. O.D.

    Min. O.D.

    Maximum Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT





    in

    mm

    in

    mm

    in

    mm

    in

    mm



    26

    19/38

    0.021

    0.530

    0.018

    0.460

    0.034

    0.864

    0.030

    0.762

    41.30

    1.2

    24

    19/36

    0.026

    0.660

    0.023

    0.580

    0.038

    0.965

    0.034

    0.864

    26.20

    1.9

    22

    19/34

    0.033

    0.840

    0.029

    0.740

    0.045

    1.143

    0.041

    1.041

    16.20

    2.9

    20

    19/32

    0.041

    1.040

    0.037

    0.940

    0.053

    1.346

    0.048

    1.219

    9.88

    4.2

    18

    19/30

    0.051

    1.300

    0.046

    1.170

    0.063

    1.600

    0.058

    1.473

    6.23

    6.4

    16

    19/29

    0.058

    1.470

    0.052

    1.320

    0.069

    1.753

    0.064

    1.626

    4.81

    8.2

    14

    19/27

    0.073

    1.850

    0.065

    1.650

    0.083

    2.108

    0.077

    1.956

    3.06

    12.5

    12

    37/28

    0.090

    2.290

    0.084

    2.130

    0.102

    2.591

    0.097

    2.464

    2.02

    20.4

    10

    37/26

    0.114

    2.900

    0.106

    2.690

    0.125

    3.175

    0.120

    3.048

    1.26

    32.0
