    M81381/22 FEP Tin coated copper Military Cable 鍍錫鐵氟龍耐高溫軍規航空飛機用線
    看原圖
    		30206336

    商品編號: Kebel-A-M81381-22

    M81381/22 FEP Tin coated copper Military Cable 鍍錫鐵氟龍耐高溫軍規航空飛機用線

    M81381/22

    Application and Description:

    These FEP/polyimide/FEP tape insulated single-core M81381/22 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

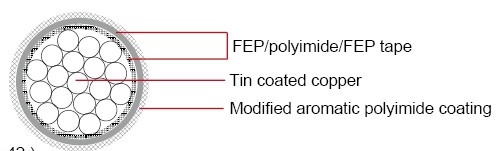

    Construction:



    Conductor: Tin coated copper

    Insulation: FEP/polyimide/FEP tape insulation

    Insulation Wall Thickness:

    0.0065”(10 AWG and smaller), or polyamide braid (8 AWG and larger), (0.0084” or 0.0170” )

    Jacket: modified aromatic polyimide coating

    Characteristics:

    Temperature Range: -55°C + 150°C

    Voltage Rating: 600 volts

    Color Code: MIL-STD-104 (See page 42 )

    10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Max.



    Conductor Diam.

    Min.

    Max. O.D.

    Min. O.D.

    Maximum Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT




    in

    mm

    in

    mm

    in

    mm

    in

    mm



    24

    19/36

    0.026

    0.660

    0.023

    0.580

    0.044

    1.118

    0.040

    1.016

    26.2

    2.1

    22

    19/34

    0.033

    0.840

    0.029

    0.740

    0.049

    1.245

    0.045

    1.143

    16.2

    3.0

    20

    19/32

    0.041

    1.040

    0.037

    0.940

    0.058

    1.473

    0.053

    1.346

    9.88

    4.5

    18

    19/30

    0.051

    1.300

    0.046

    1.170

    0.068

    1.727

    0.063

    1.600

    6.23

    6.7

    16

    19/29

    0.058

    1.470

    0.052

    1.320

    0.074

    1.880

    0.068

    1.727

    4.81

    8.4

    14

    19/27

    0.073

    1.850

    0.035

    1.650

    0.089

    2.261

    0.081

    2.057

    3.06

    13.0

    12

    37/28

    0.090

    2.290

    0.084

    2.130

    0.107

    2.718

    0.100

    2.540

    2.02

    20.0

    10

    37/26

    0.114

    2.900

    0.106

    2.690

    0.130

    3.302

    0.122

    3.099

    1.26

    31.0

    8

    133/29

    0.173

    4.390

    0.158

    4.010

    0.206

    5.230

    0.188

    4.780

    0.70

    61.8

    6

    133/27

    0.217

    5.510

    0.198

    5.030

    0.251

    6.380

    0.228

    5.790

    0.45

    95.1

    4

    133/25

    0.274

    6.960

    0.250

    6.350

    0.306

    7.770

    0.280

    7.110

    0.28

    148.0

    2

    665/30

    0.340

    8.640

    0.320

    8.130

    0.378

    9.600

    0.350

    8.890

    0.14

    235.0
