    MIL-W-76B type HW heavy wall PVC tinned copper Military Cable 600V,2500 V 鍍錫高壓軍規電子線
    看原圖
    		30206345

    商品編號: Kebel-A-M76B-HW

    MIL-W-76B type HW heavy wall PVC tinned copper Military Cable     -55ºC to +90ºC 600V,2500 V 鍍錫高壓軍規電子線

    MIL-W-76B type HW

    Application and Description:

    These chemical and moisture resistant PVC insulated single-core MIL-W-76B type HW purpose heavy wall cables are used for internal wiring of electrical and electronic equipment. It is also resistant to water, oil, acids, solvents and fungus.

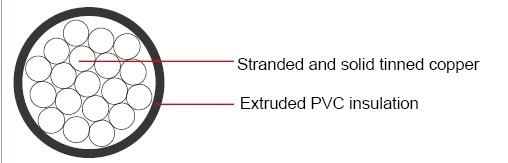

    Construction:

    Conductor: Stranded Tinned Copper

    Insulation: Chemical and moisture resistant PVC.

    Characteristics:

    Temperature Range: -55ºC to +90ºC

    Voltage Rating:

    2500 Volt RMS - 22AWG to 16AWG

    600 Volt RMS - 14AWG

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Conductor Diam.

    Nom. O.D.

    Approx LBS/MFT





    in

    mm

    in

    mm



    22

    7/30

    0.030

    0.762

    0.092

    2.337

    6.0

    20

    10/30

    0.037

    0.940

    0.099

    2.515

    7.6

    18

    16/30

    0.045

    1.143

    0.107

    2.718

    10.3

    16

    19/29

    0.059

    1.499

    0.120

    3.048

    12.9

    14

    19/27

    0.073

    1.854

    0.163

    4.140

    22.1

    12

    19/25

    0.092

    2.337

    0.182

    4.623

    32.1

    10

    37/26

    0.115

    2.921

    0.205

    5.207

    43.6

    8

    133/29

    0.166

    4.216

    0.258

    6.553

    74.8

    6

    133/27

    0.210

    5.334

    0.300

    7.620

    101.3
