FAA L-824 Type B Shielded 5kV 銅帶鎧裝隔離耐高壓機場照明電纜

30203507

商品編號: Caledon-FAAL-824-S

FAA L-824 Type B Shielded 5kV 銅帶鎧裝隔離耐高壓機場照明電纜

★★★★商品說明★★★★

FAA L-824 Type B Shielded 5kV

FAA L-824 Type B Shielded 5kV Airport Lighting Cables

Applications

FAA L-824 Type B Shielded 5kV cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

這些電纜用於互連變壓器和機場照明系統的串聯電路中的電流調節器，適合於固定應用如滑行道，跑道，導航設備，以及阻塞照明，可安裝在導管和直埋

Standards

FAA L-824 Type B
ICEA S-93-639 / NEMA WC74

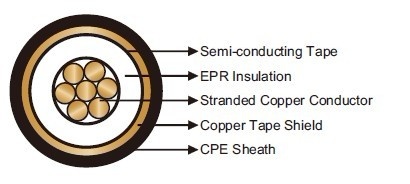

Construction

Conductor: Stranded tinned copper conductor.
Insulation: EPR.
Semi-Conductor: Helically applied semi-conducting tape.
Shield: Tinned copper tape.
Separator: Separation tape.
Sheath: CPE.

Technical Data

Rated Voltage Uo/U (Um)	5kV
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-40℃~+85℃
Minimum Bending Radius	12×OD
Halogen Free	Yes
Abrasion Resistant	Yes
UV Resistant	Yes
Oil Resistant	Yes

Dimensions and Weight

Construction	No. of Strand	Nominal Insulation Thickness		Nominal Sheath Thickness		Nominal Overall Diameter		Nominal Weight	Nominal Weight
No. ×mm²/ AWG	-	mm	inches	mm	inches	mm	inches	kg/km	lbs/kft
1×6mm²	7	2.3	0.09	1.2	0.05	11.1	0.44	194	130
1×8	7	2.3	0.09	1.2	0.05	11.7	0.46	225	151
