GXL American Standard Automotive Cable XLPE絕緣1芯美國標準汽車用電纜線

30202587

商品編號: Caledon-GXL

GXL American Standard Automotive Cable XLPE絕緣1芯美國標準汽車用電纜線

Standard Compliance SAE J1128

★★★★商品說明★★★★

American Standard Automotive Cable

GXL

Applications

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

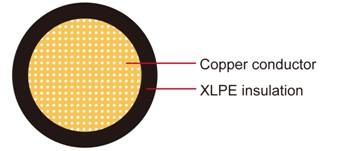

Construction

GXL

Conductor	Soft-annealed copper according to ASTM B3
Insulation	Polyethylene crosslinked (XLPE)
Standard Compliance	SAE J1128

Technical Parameters

Operating temperature: –40 °C to +125 °C

Conductor				Insulation		Cable
Size	Nominal Cross-section	No. and Dia. of Wires	Diameter max.	Thickness Wall min.	Thickness Wall nom.	Overall Diameter max.	Weight approx.
AWG	mm2	No./mm	mm	mm	mm	mm	kg/km
20	1 x 0.50	19/0.20	0.97	0.41	0.58	2.40	9
18	1 x 0.80	19/0.23	1.17	0.41	0.58	2.50	12
18	1 x 0.80	16/0.25	1.17	0.41	0.58	2.50	12
16	1 x 1.00	19/0.24	1.45	0.41	0.58	2.90	17
14	1 x 2.00	19/0.36	1.80	0.41	0.58	3.20	25
12	1 x 3.00	19/0.45	2.29	0.46	0.66	3.80	38
10	1 x 5.00	19/0.57	2.87	0.56	0.79	4.70	58

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
