商品編號: Caledon-FL4G11Y

FL4G11Y Germany Standard Automotive Cable EVA絕緣PUR被覆多芯德國標準汽車用電纜線

良好的柔韌性和良好的反向彎曲強度

★★★★商品說明★★★★

Germany Standard Automotive Cable

FL4G11Y

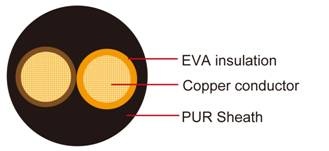

This EVA insulated , PUR sheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

Conductor	Cu-ETP1 tinned according to DIN EN 13602
Insulation	Ethylene vinyl acetate (EVA)
Sheath	Polyurethane (PUR)
Sheath colour	black
Standard Compliance	ISO 6722 Class C

Operating temperature: –40 °C to +125 °C

良好的柔韌性和良好的反向彎曲強度。導線與3和4芯的為附加功能。也適合於發動機艙內佈線。

	Conductor			Insulation		Cable
Nominal Cross-section	No. and Dia. of Wires	Diameter max.	Electrical Resistance at 20°C max.	Thickness Wall nom.	Diameter of Core	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	kg/km
2 x 0.50	28/0.16	1.00	40.10	0.35	1.65	0.55	4.10	4.50	27
2 x 0.50	28/0.16	1.00	40.10	0.35	1.65	0.90	5.00	5.30	34
2 x0.75	40/0.16	1.10	27.10	0.5	2.20	0.90	5.90	6.45	49
3 x0.50	28/0.16	1.00	40.10	0.35	1.65	0.80	5.00	5.40	39
4 x0.50	28/0.16	1.00	40.10	0.35	1.65	0.60	5.00	5.40	42

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
