商品編號: Caledon-FL6Y2G

FLYY-FEP-Silicone Multicore Core Germany Standard Automotive Cable FEP絕緣Silicone被覆 2芯德國標準汽車用電纜線

★★★★商品說明★★★★

Germany Standard Automotive Cable

FL6Y2G

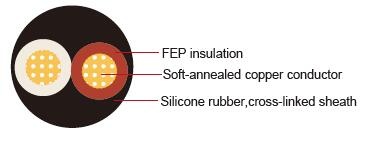

Automotive FEP insulated, silicon rubber sheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

Conductor	Cu-ETP1 or bare according to DIN EN 13602
Insulation	Fluorinated ethylene propylene(FEP) insulation
Sheath	Siliconne rubber,cross-linked according to ISO 14572 class F
Standard Compliance	ISO 6722 Class F

Operating temperature: –40 °C to +210 °C

	Conductor			Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.	Electrical resistance at 20°C max.	Thickness Wall nom.	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	(mm)	mΩ/m	(mm)	(mm)	mm	mm	kg/km
2x0.35	12/0.21	0.8	52	0.4	0.53	4.6	5	32
2x0.25	24/0.16	0.7	86.5	0.4	0.53	3.4	3.8	24

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
