FLYY-PVC-TPE Multicore Core Germany Standard Automotive Cable PVC絕緣TPE被覆多芯德國標準汽車用電纜線

30202569

商品編號: Caledon-FLR11Y

FLYY-PVC-TPE Multicore Core Germany Standard Automotive Cable PVC絕緣TPE被覆多芯德國標準汽車用電纜線

★★★★商品說明★★★★

Germany Standard Automotive Cable

FLR11Y

Applications

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting , charging, lighting, signal and instrument panel circuits.

這聚氯乙烯絕緣低張力汽車電纜在摩托車等機動車輛用於啟動，充電，照明，信號和儀表盤電路。

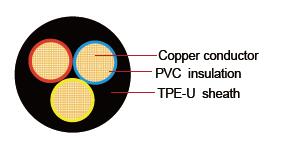

Construction

Conductor	Cu-ETP1 or bare according to DIN EN 13602
Insulation	PVC Outer
Sheath	TPE-U
Standard Compliance	ISO 6722 Class B

Technical Parameters

Operating temperature: –40 °C to +105 °C

Special Properties

Flame retardant

Highly resistant against acids,lyes,petrol and diesel
高耐酸，鹼液，汽油和柴油

	Conductor Construction			Insulation		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Electrical resistance at 20°C max.	Nominal thickness	Diameter of core	Sheath wall thickness	Overall Diameter Min.	Overall Diameter Max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	kg/km
2x0.75	42/0.16	1.2	24.7	0.4	1.9	0.8	5.2	5.6	47
3x1	32/0.21	1.5	18.5	0.35	2.0	0.7	5.6	6.0	54
3x1.5	30/0.26	1.7	13.3	0.4	2.4	0.75	6.5	6.9	71

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
