    FLRYW-B Germany Standard Automotive Cable –50°C to 125°C Cold resistant 耐熱寒單芯德國標準汽車用電纜線
    看原圖
    30202344




    商品編號: Caledon-FLRYW-B

    FLRYW-B Germany Standard Automotive Cable –50°C to 125°C Cold resistant 耐熱寒單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRYW-B

    Applications

    This PVC insulated single-core cable is used as low-tension electric wire for automobiles.

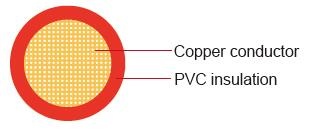

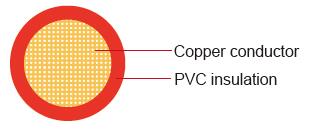

    Construction

    FLYW
    ConductorCu-ETP1 bare according to DIN EN13602
    InsulationPVC
    Standard ComplianceISO 6722 Calss C

    Technical Parameters

    Operating temperature: –50°C to 125°C

    Special properties

    Heat resistant cable, Flame retardant, Extra flexibility

    Flexible conductor with PVC Thin wall insulation with increase mechanical strength

    耐熱電纜,阻燃,更高的柔軟性
    軟導體與PVC超薄牆體保溫與提高機械強度



     Conductor ConstructionInsulationCable
    Nominal
    cross- section
    No. and Dia. of WiresDiameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thicknessOverall Diameter Min.Overall Diameter Max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmg/km
    1x0.3512 /0.210.954.40.21.21.45
    1x0.5016/0.211.037.10.221.41.66
    1x0.7524/0.211.224.70.241.71.99
    1x1.0032/0.211.3518.50.241.92.111
    1x1.2516/0.331.714.90.242.12.312
    1x1.5030/0.261.712.70.242.22.417
    1 x2.0028/0.32.09.420.282.52.824
    1 x2.5050/0.262.27.60.282.73.028
    1 x3.0045/0.32.46.150.323.3.434
    1 x4.0056/0.32.754.70.323.43.744
    1 x5.0065/0.333.3.940.323.94.250
    1 x6.0084/0.33.33.140.324.04.364
    1 x8.0050/0.464.32.380.324.65.082
    1 x10.0038/0.44.51.820.485.45.8113
    1 x12.0096/0.45.41.520.485.86.5120
    1 x16.00126/0.45.51.160.526.57.0171
    1 x20.00152/0.46.90.9550.527.07.8192
    1 x25.00196/0.47.00.7430.527.98.7255



    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
