    FLRYDY Germany Standard Automotive Cable PVC –40°C to 105°C 耐熱單芯附纏繞隔離德國標準汽車用電纜線
    看原圖
    30202379




    商品編號: Caledon-FLRYDY

    FLRYDY Germany Standard Automotive Cable PVC –40°C to 105°C 耐熱單芯附纏繞隔離德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRYDY

    Applications

    This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits.

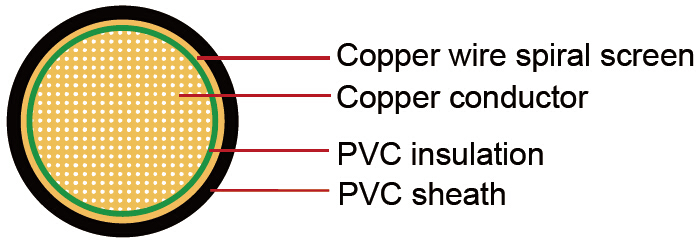

    Construction

    FLR13Y
    ConductorCu-ETP1 bare according to DIN EN13602
    Insulation

    PVC

    ScreenCopper wire spiral shield
    SheathPVC
    Standard Compliance

    ISO 6722 Class B

    Special properties

    Flame retardant

    Flexible conductors with PVC thin wall insulation with increased mechanical strength

    Technical Parameters

    Operating temperature: –40°C to +105°C

     Conductor ConstructionInsulationCable
    Nominal cross- sectionNo. and Dia. of WiresDiameter of Conductor max.Electrical resistance at 20°C max.Nominal thicknessDiameter of coreSheath wall thicknessOverall Diameter Min.Overall Diameter Max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmmmmmkg/km
    1x07524/0.211.224.70.31.750.32.52.720
    1x1.0032/0.211.3518.50.31.950.32.72.923
    1x1.5030/0.261.712.70.32.250.33.03.229



    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
