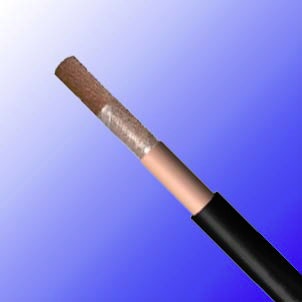

    Coil End Lead Cable to BS 6195 type 4 PETP-EPR-CSP 英國標準規範電子線
    看原圖
    		30200975




    商品編號: Caledon-BS6195-4

    Coil End Lead Cable to BS 6195 type 4 PETP-EPR-CSP 英國標準規範電子線



    ★★★★商品說明★★★★

    Coil End Lead Cable to BS 6195 type 4

    Application and Description

    These cables are designed as power leads for permanent connection to coil winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use as an alternative to tri-rated and bi-rated cable in certain applications.

    Cable Construction

    Coil End Lead Cable to BS 6195
    Fine bare copper strands
    Stranding to BS 6360 Class 5 or IEC 60228 Class 5
    PETP(Polyethylene Terephthalate) tape separator
    EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation, type FR1 (for type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655
    CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath to BS 6899, black

    Technical Characteristics

    Working voltageType 4A: 300/500V
     Type 4C: 600/1000V
     Type 4D: 1900/3300V
     Type 4E: 3800/6600V
     Type 4F: 6350/11000V
    Minimum bending radius4xOverall diameter
    Operating temperature-20 oC to +90 oC

    Cable Parameter

    AWG (No of Strands/Strand Diameter)No. of Cores x Nominal Cross Sectional AreaNominal Thickness of InsulationNominal Overall DiameterNominal Weight
    #xmm^2mmmmkg/km
    TYPE 4A
    18(24/32)1x0.750.83.516
    17(32/32)1x10.83.719
    16(30/30)1x1.50.8425
    14(50/30)1x2.50.94.637
    12(56/28)1x415.457
    10(84/28)1x616.580
    8(80/26)1x101.27.9130
    TYPE 4C
    20(16/32)1x0.51.44.517
    18(24/32)1x0.751.44.721
    17(32/32)1x11.44.924
    16(30/30)1x1.51.45.230
    14(50/30)1x2.51.45.641
    12(56/28)1x41.46.366
    10(84/28)1x61.57.593
    8(80/26)1x101.58.5136
    6(128/26)1x161.59.6206
    4(200/26)1x251.611.4300
    2(280/26)1x351.612.8406
    1(400/26)1x501.714.8573
    2/0(356/24)1x701.817.2793
    3/0(485/24)1x95219.71028
    4/0(614/24)1x1202.221.91285
    300 MCM (765/24)1x1502.324.11562
    350 MCM (944/24)1x1852.426.31914
    500MCM(1225/24)1x2402.428.32431
    (1525/24)1x3002.6333024
    (2013/24)1x4002.837.43948
    TYPE 4D
    6(128/26)1x162.812.4255
    4(200/26)1x252.813.8351
    2(280/26)1x352.815.2458
    1(400/26)1x502.817.1616
    2/0(356/24)1x702.819.2820
    3/0(485/24)1x953221097
    4/0(614/24)1x120323.51340
    300 MCM (765/24)1x150325.51635
    350 MCM (944/24)1x185327.51973
    500MCM(1225/24)1x240330.62504
    (1525/24)1x300333.83098
    (2013/24)1x400337.84045
    TYPE 4E
    6(128/26)1x16517.2384
    4(200/26)1x25518.6495
    2(280/26)1x35520613
    1(400/26)1x50522.1796
    2/0(356/24)1x70524.21020
    3/0(485/24)1x95526.31287
    4/0(614/24)1x120527.81542
    300 MCM (765/24)1x150529.81853
    350 MCM (944/24)1x185532.12225
    500MCM(1225/24)1x240535.12782
    TYPE 4F
    6(128/26)1x167.622.9566
    4(200/26)1x257.624.1680
    2(280/26)1x357.625.5810
    1(400/26)1x507.627.3997
    2/0(356/24)1x707.629.41237
    3/0(485/24)1x957.631.51520
    4/0(614/24)1x1207.633.31804
    300 MCM (765/24)1x1507.635.32131
    350 MCM (944/24)1x1857.637.32503
    500MCM(1225/24)1x2407.640.33081
