    LFMKK 250V FLAME RETARDANT, SIGNAL AND COMMUNICATION CABLE 耐燃訊號通信船舶電纜
    看原圖
    30193814




    商品編號: UNTL-LFMKK

    LFMKK 250V FLAME RETARDANT, SIGNAL AND COMMUNICATION CABLE 耐燃訊號通信船舶電纜



    ★★★★商品說明★★★★

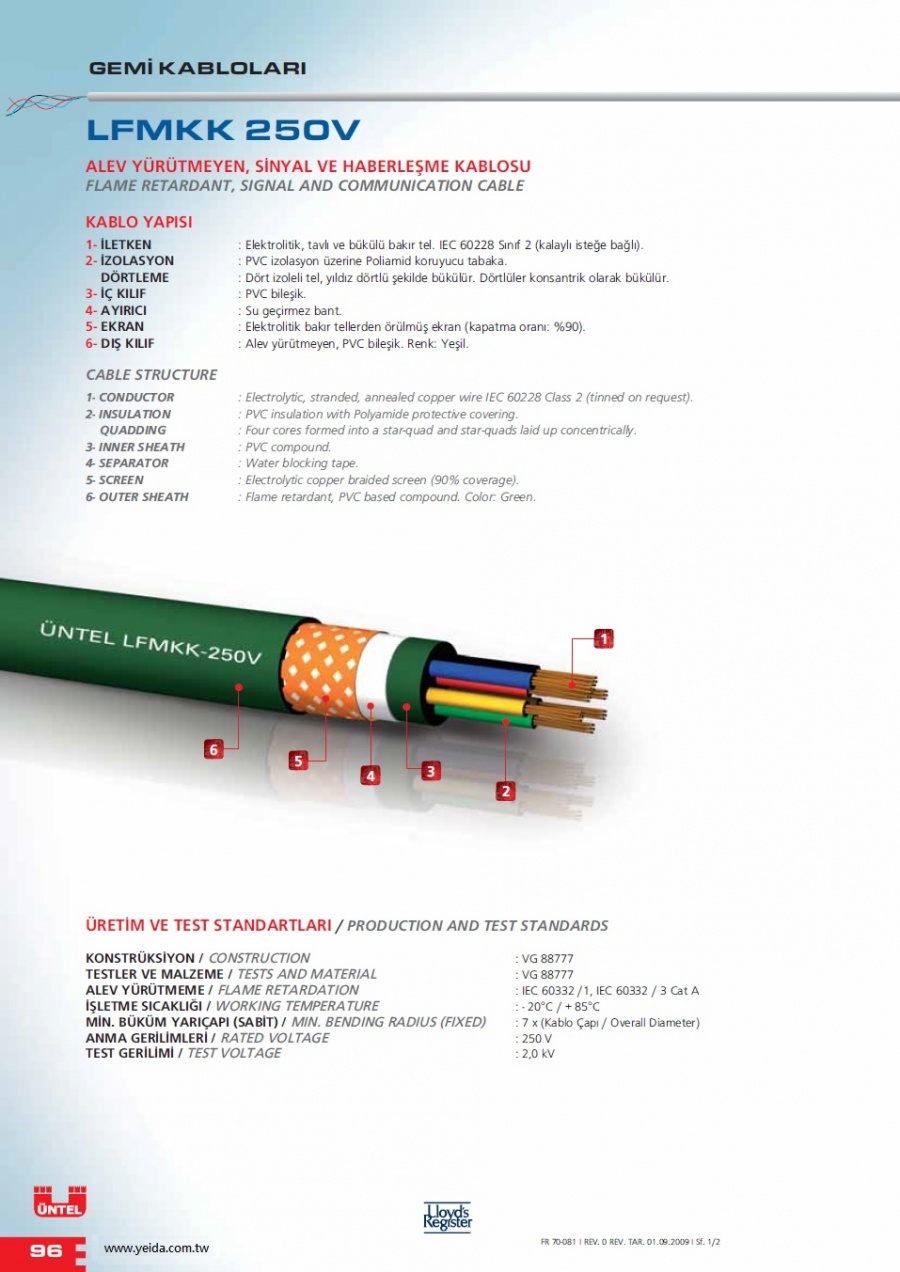

    LFMKK 250V

    FLAME RETARDANT, SIGNAL AND COMMUNICATION CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (tinned on request).
    2- INSULATION : PVC insulation with Polyamide protective covering.
    QUADDING : Four cores formed into a star-quad and star-quads laid up concentrically.
    3- INNER SHEATH : PVC compound.
    4- SEPARATOR : Water blocking tape.
    5- SCREEN : Electrolytic copper braided screen (90% coverage).
    6- OUTER SHEATH : Flame retardant, PVC based compound. Color: Green.

    PRODUCTION AND TEST STANDARDS
    CONSTRUCTION : VG 88777
    TESTS AND MATERIAL : VG 88777
    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
    WORKING TEMPERATURE : - 20°C / + 85°C
     MIN. BENDING RADIUS (FIXED) : 7 x (Kablo Çap› / Overall Diameter)
    RATED VOLTAGE : 250 V
    TEST VOLTAGE : 2,0 kV

    APPLICATION
    Mainly used above and below deck of the ship
    as control and communication cables in radio,
    radar and information systems.
    主要用於在無線電控制和通信電纜,
    雷達和信息系統。

    ENVIRONMENT
    Usable at all conditions in marine environment
    such as dry or wet locations, where electromagnetic
    protection is required as well.

    SAFETY
    Due to its flame retardant feature, the part which
    directly contacts with fire will burn but the flame
    will not spread along the cable length. Thus it
    prevents the fire spreading around.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    這些是除石油和天然氣鑽井平台的各種浮游車輛電纜。該電纜可根據IEC60092/350, IEEE45和一些其它標準來生產。我們可以鍵入我們從ABS船用電纜的批准證書,BV,DNV,GL,LR,日本海事協會,RINA,RMRS,GOST和土耳其勞埃德。
