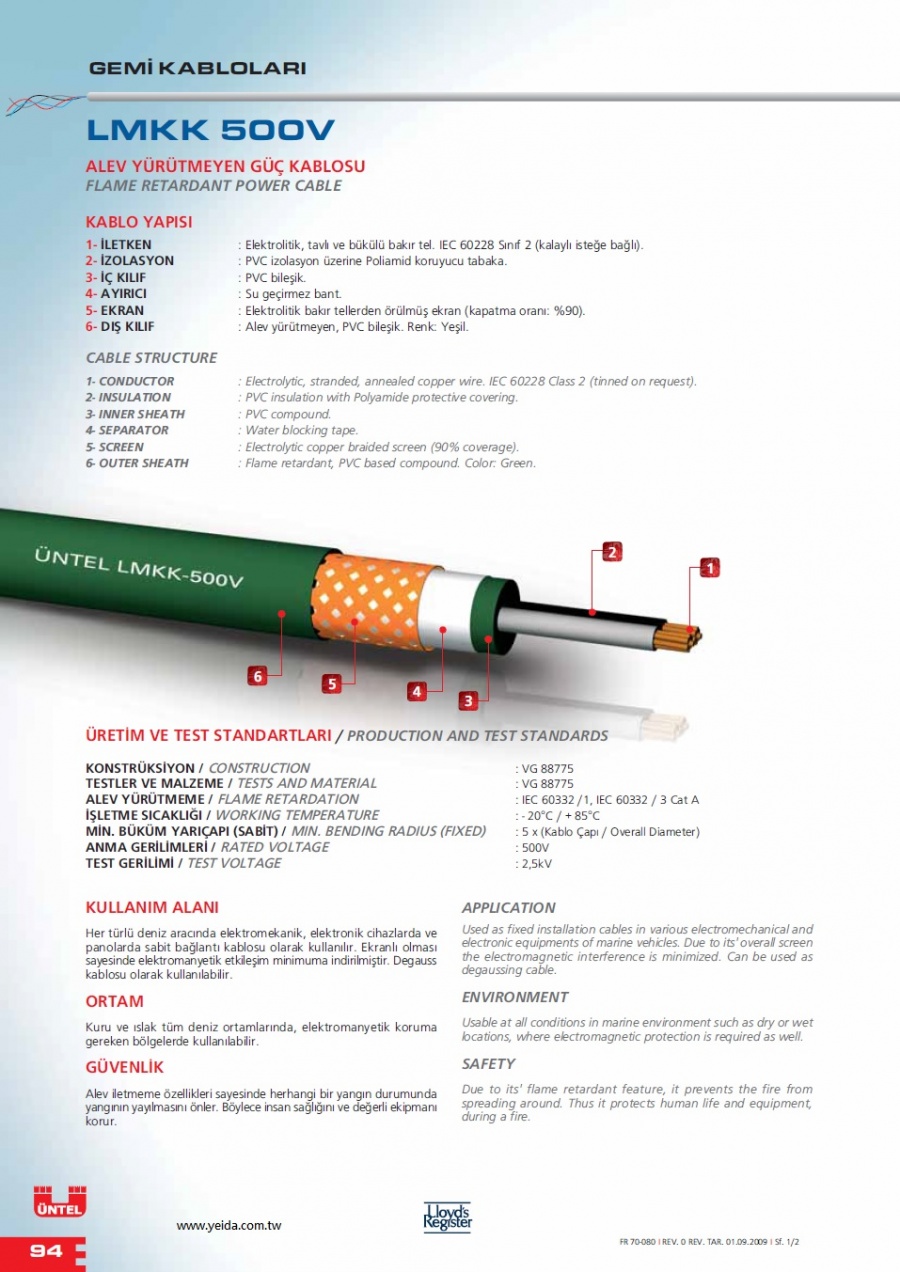

LMKK 500V

FLAME RETARDANT POWER CABLE

CABLE STRUCTURE
1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (tinned on request).
2- INSULATION : PVC insulation with Polyamide protective covering.
3- INNER SHEATH : PVC compound.
4- SEPARATOR : Water blocking tape.
5- SCREEN : Electrolytic copper braided screen (90% coverage).
6- OUTER SHEATH : Flame retardant, PVC based compound. Color: Green.

PRODUCTION AND TEST STANDARDS
CONSTRUCTION : VG 88775
TESTS AND MATERIAL : VG 88775
FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
 WORKING TEMPERATURE : - 20°C / + 85°C
 MIN. BENDING RADIUS (FIXED) : 5 x (Kablo Çap› / Overall Diameter)
 RATED VOLTAGE : 500V
TEST VOLTAGE : 2,5kV

APPLICATION
Used as fixed installation cables in various electromechanical and
electronic equipments of marine vehicles. Due to its overall screen
the electromagnetic interference is minimized. Can be used as
degaussing cable.

作為固定安裝電纜各種機電和
海洋車輛的電子設備。由於它的整體畫面
的電磁干擾被最小化。可以用作
消磁電纜。

ENVIRONMENT
Usable at all conditions in marine environment such as dry or wet
locations, where electromagnetic protection is required as well.

SAFETY
Due to its flame retardant feature, it prevents the fire from
spreading around. Thus it protects human life and equipment,
during a fire.
