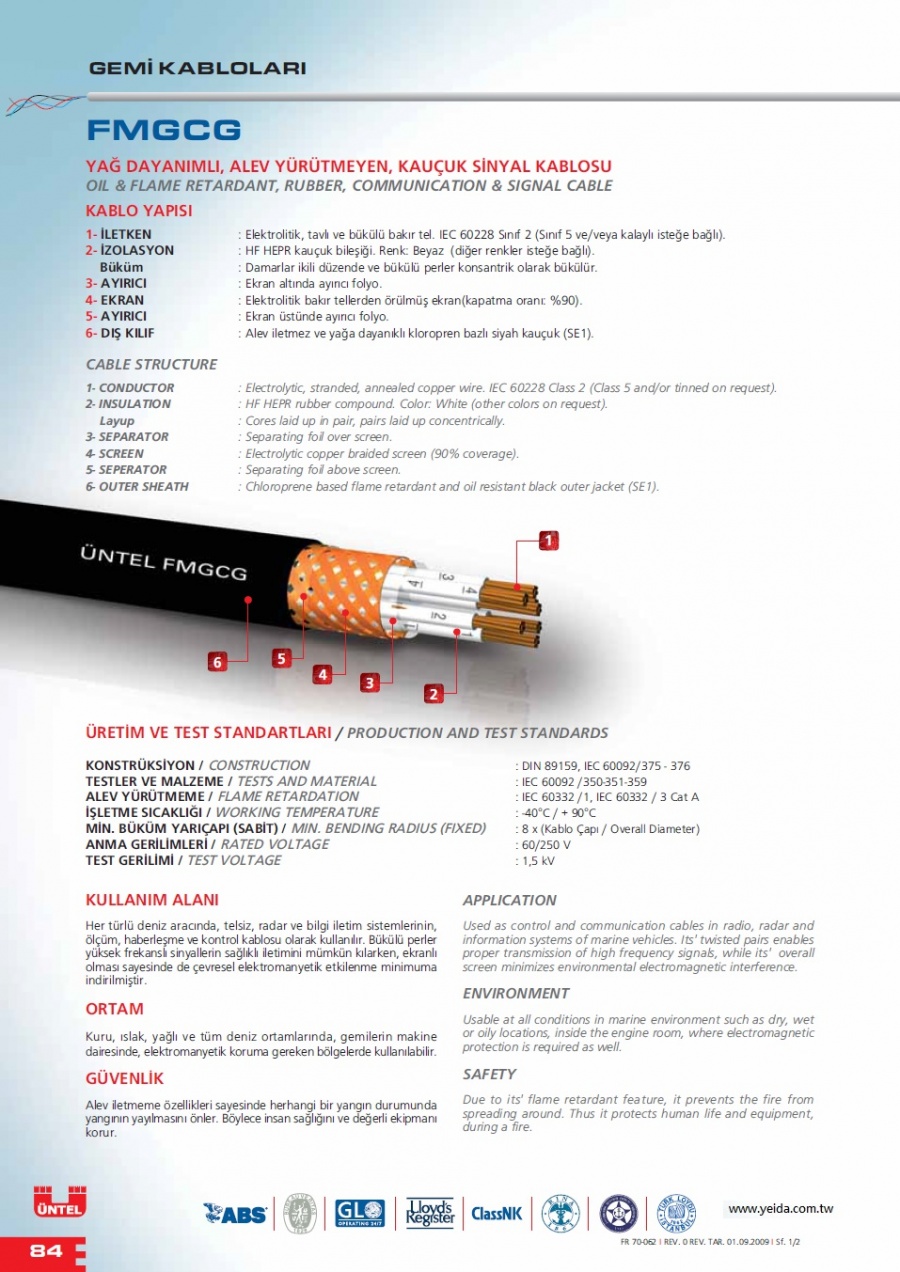

    FMGCG OIL & FLAME RETARDANT, RUBBER, COMMUNICATION & SIGNAL CABLE 耐油阻燃,橡膠,通信及信號電纜
    看原圖
    30194123




    ??蝺刻?: UNTL-FMGCG

    FMGCG OIL & FLAME RETARDANT, RUBBER, COMMUNICATION & SIGNAL CABLE ?硃?餌?嚗屆???縑?縑?蝥?/b>

    ?控 / ?唳 / ?臬? / ?祆陸 / ?? / ? / ?啣? / 瘞貉? / 蝚砌? / 敶啣? / ?澈 / ?亦? / ?航? / 皜???陸銝 / ?啣?撖 / 憭抒?€銵?/ ?啁銝剖?隡?/?唬葉?? / 瞉喟??€銵?/p>



    ??????隤芣?????

    FMGCG

    OIL & FLAME RETARDANT, RUBBER, COMMUNICATION & SIGNAL CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).
    2- INSULATION : HF HEPR rubber compound. Color: White (other colors on request).
    Layup : Cores laid up in pair, pairs laid up concentrically.
    3- SEPARATOR : Separating foil over screen.
    4- SCREEN : Electrolytic copper braided screen (90% coverage).
    5- SEPERATOR : Separating foil above screen.
    6- OUTER SHEATH : Chloroprene based flame retardant and oil resistant black outer jacket (SE1).

    PRODUCTION AND TEST STANDARDS
    CONSTRUCTION : DIN 89159, IEC 60092/375 - 376
    TESTS AND MATERIAL : IEC 60092 /350-351-359
    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
    WORKING TEMPERATURE : -40簞C / + 90簞C
    MIN. BENDING RADIUS (FIXED) : 8 x (Kablo ?ap??/ Overall Diameter)
    RATED VOLTAGE : 60/250 V
    TEST VOLTAGE : 1,5 kV

    APPLICATION
    Used as control and communication cables in radio, radar and
    information systems of marine vehicles. Its twisted pairs enables
    proper transmission of high frequency signals, while its overall
    screen minimizes environmental electromagnetic interference.
    ?其??∠??鳴??琿??批?€縑?餌???br>瘚瑟?頠?靽⊥蝟餌絞???蝯?撖衣
    擃靽∟??迤蝣箏頛賂???擃?br>撅??€憭抒?摨血皜??啣??蝤僕?整€?/p>

    ENVIRONMENT
    Usable at all conditions in marine environment such as dry, wet
    or oily locations, inside the engine room, where electromagnetic
    protection is required as well.

    SAFETY
    Due to its flame retardant feature, it prevents the fire from
    spreading around. Thus it protects human life and equipment,
    during a fire.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    ???舫?單硃?予?嗆除?賭?撟喳??蝔格筑皜貉?頛蝥€府?餌??舀?EC60092/350, IEEE45??鈭摰?皞?????隞仿?交???ABS?寧?餌?????賂?BV嚗NV嚗L嚗R嚗?祆絲鈭???RINA嚗MRS嚗OST???喳??敺瑯€?/p>
