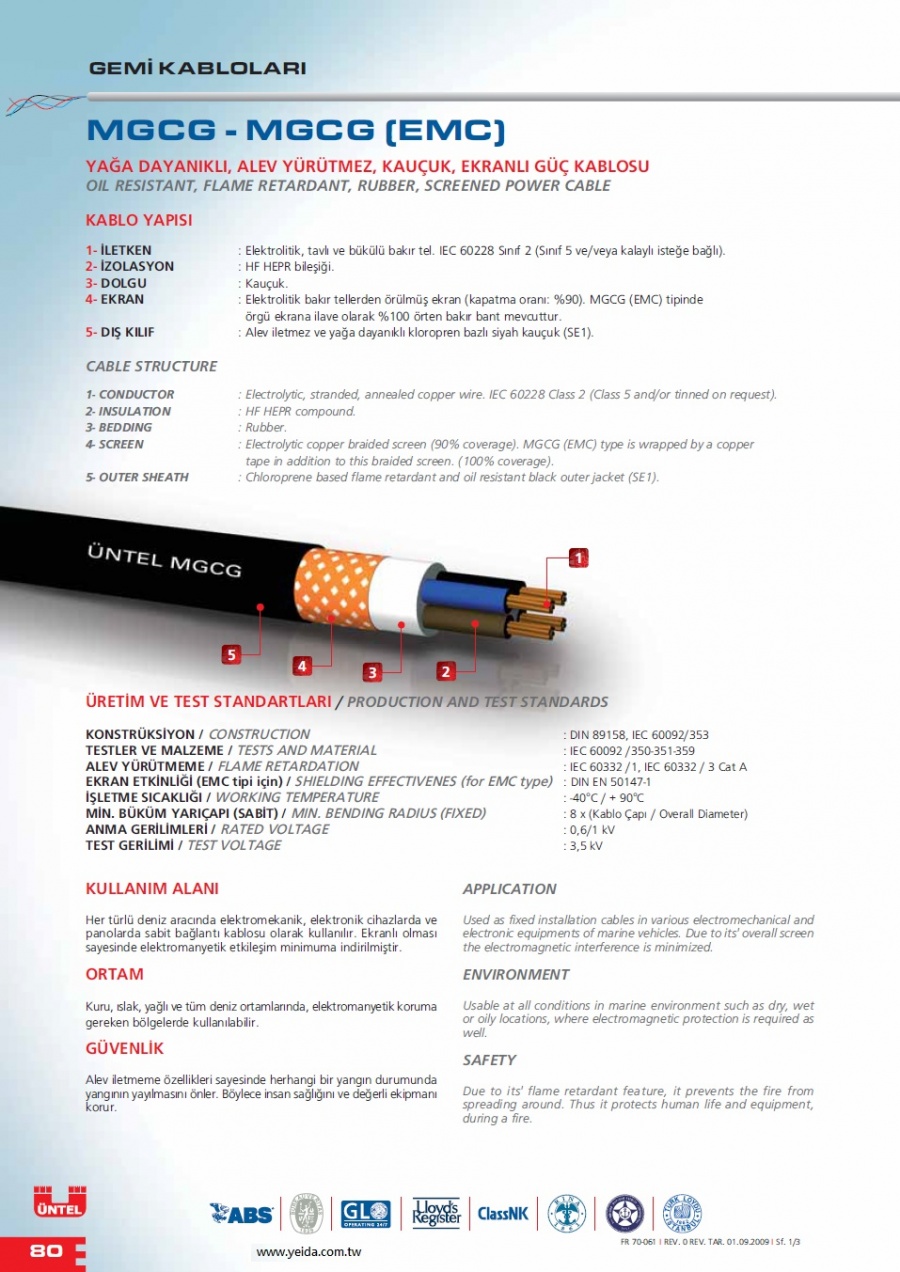

    MGCG – MGCG (EMC) OIL RESISTANT, FLAME RETARDANT, RUBBER, SCREENED POWER CABLE 耐油,阻燃,橡膠,屏蔽電源線
    看原圖
    30194127




    商品編號: UNTL-MGCG-M

    MGCG – MGCG (EMC) OIL RESISTANT, FLAME RETARDANT, RUBBER, SCREENED POWER CABLE 耐油,阻燃,橡膠,屏蔽電源線



    ★★★★商品說明★★★★

    OIL RESISTANT, FLAME RETARDANT, RUBBER, SCREENED POWER CABLE

    耐油,阻燃,橡膠,屏蔽電源線

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).
    2- INSULATION : HF HEPR compound.
    3- BEDDING : Rubber.
    4- SCREEN : Electrolytic copper braided screen (90% coverage). MGCG (EMC) type is wrapped by a copper
    tape in addition to this braided screen. (100% coverage).
    5- OUTER SHEATH : Chloroprene based flame retardant and oil resistant black outer jacket (SE1).

    PRODUCTION AND TEST STANDARDS
    CONSTRUCTION : DIN 89158, IEC 60092/353
    TESTS AND MATERIAL : IEC 60092 /350-351-359
    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
    SHIELDING EFFECTIVENES (for EMC type) : DIN EN 50147-1
    WORKING TEMPERATURE : -40°C / + 90°C
    MIN. BENDING RADIUS (FIXED) : 8 x (Kablo Çap› / Overall Diameter)
    RATED VOLTAGE : 0,6/1 kV
    TEST VOLTAGE : 3,5 kV

    APPLICATION
    Used as fixed installation cables in various electromechanical and
    electronic equipments of marine vehicles. Due to its overall screen
    the electromagnetic interference is minimized.

    ENVIRONMENT
    Usable at all conditions in marine environment such as dry, wet
    or oily locations, where electromagnetic protection is required as
    well.

    SAFETY
    Due to its flame retardant feature, it prevents the fire from
    spreading around. Thus it protects human life and equipment,
    during a fire.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    這些是除石油和天然氣鑽井平台的各種浮游車輛電纜。該電纜可根據IEC60092/350, IEEE45和一些其它標準來生產。我們可以鍵入我們從ABS船用電纜的批准證書,BV,DNV,GL,LR,日本海事協會,RINA,RMRS,GOST和土耳其勞埃德。
