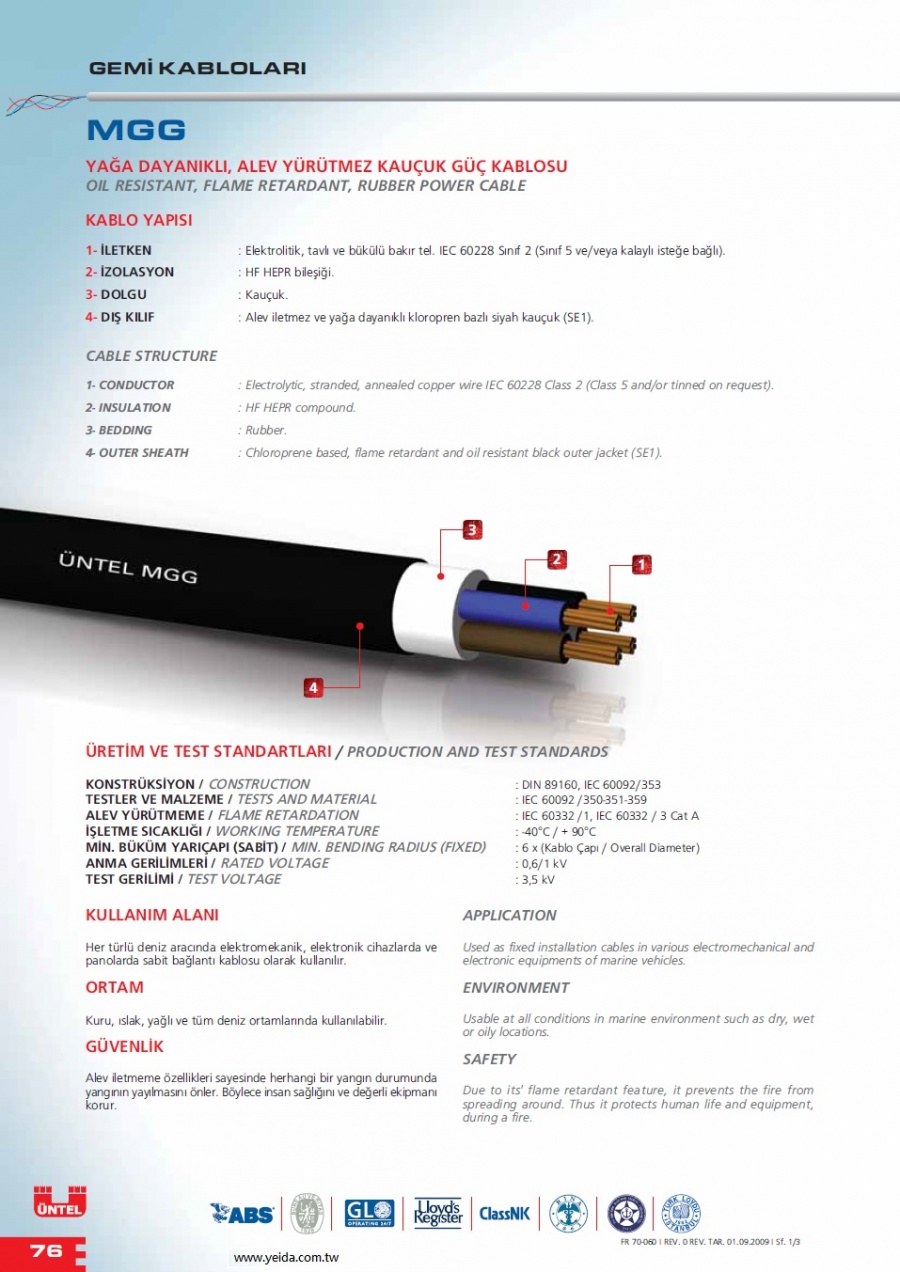

MGG

OIL RESISTANT, FLAME RETARDANT, RUBBER POWER CABLE

CABLE STRUCTURE
1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and/or tinned on request).
2- INSULATION : HF HEPR compound.
3- BEDDING : Rubber.
4- OUTER SHEATH : Chloroprene based, flame retardant and oil resistant black outer jacket (SE1).

PRODUCTION AND TEST STANDARDS
CONSTRUCTION : DIN 89160, IEC 60092/353
TESTS AND MATERIAL : IEC 60092 /350-351-359
FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 6 x (Kablo Çap› / Overall Diameter)
RATED VOLTAGE : 0,6/1 kV
TEST VOLTAGE : 3,5 kV

APPLICATION
Used as fixed installation cables in various electromechanical and
electronic equipments of marine vehicles.

ENVIRONMENT
Usable at all conditions in marine environment such as dry, wet
or oily locations.

SAFETY
Due to its flame retardant feature, it prevents the fire from
spreading around. Thus it protects human life and equipment,
during a fire.
