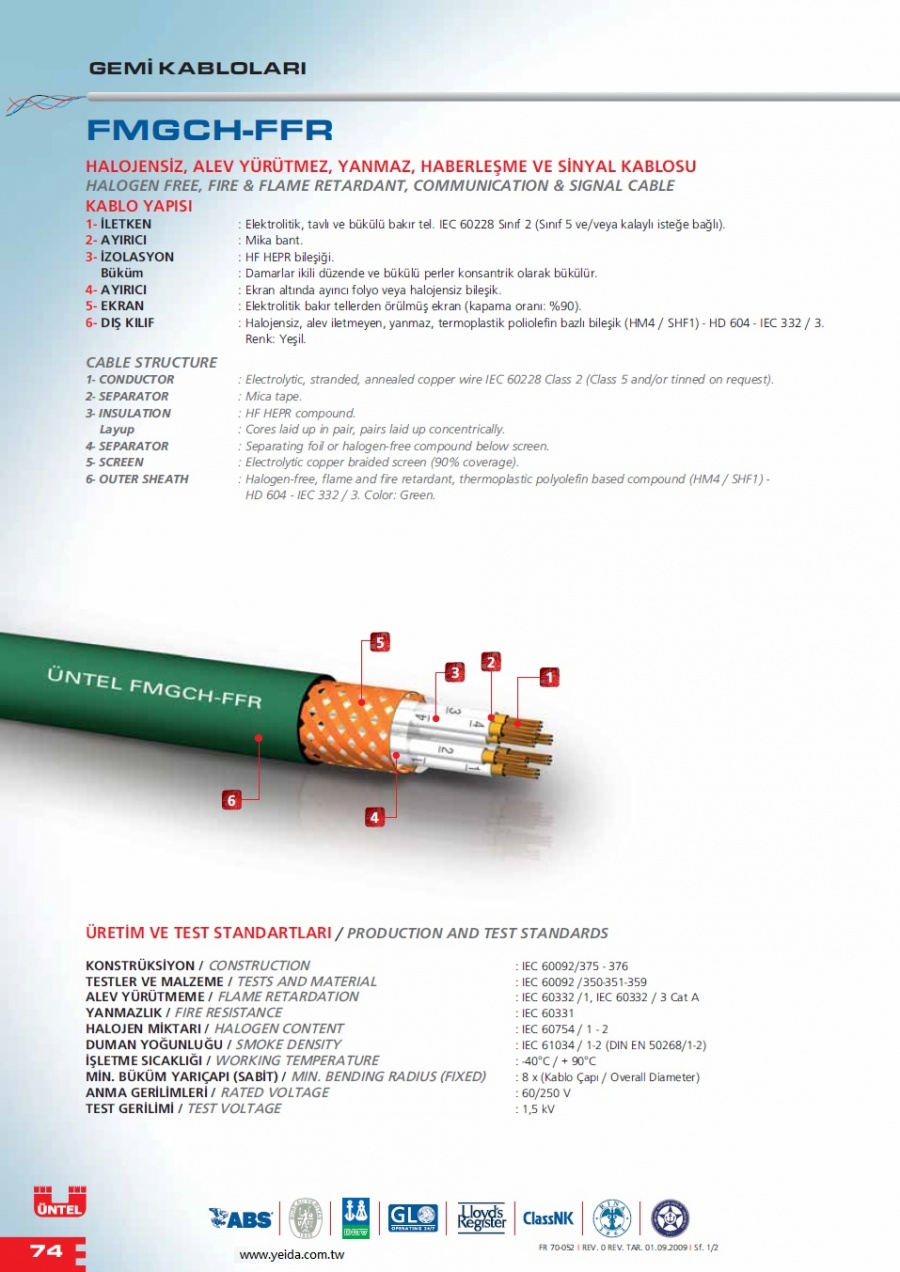

FMGCH-FFR
HALOGEN FREE, FIRE & FLAME RETARDANT, COMMUNICATION & SIGNAL CABLE
CABLE STRUCTURE
1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and/or tinned on request).
2- SEPARATOR : Mica tape.
3- INSULATION : HF HEPR compound.
Layup : Cores laid up in pair, pairs laid up concentrically.
4- SEPARATOR : Separating foil or halogen-free compound below screen.
5- SCREEN : Electrolytic copper braided screen (90% coverage).
6- OUTER SHEATH : Halogen-free, flame and fire retardant, thermoplastic polyolefin based compound (HM4 / SHF1) -
HD 604 - IEC 332 / 3. Color: Green.
PRODUCTION AND TEST STANDARDS
CONSTRUCTION : IEC 60092/375 - 376
TESTS AND MATERIAL : IEC 60092 /350-351-359
FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
FIRE RESISTANCE : IEC 60331
HALOGEN CONTENT : IEC 60754 / 1 - 2
SMOKE DENSITY : IEC 61034 / 1-2 (DIN EN 50268/1-2)
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 8 x (Kablo Çap› / Overall Diameter)
RATED VOLTAGE : 60/250 V
TEST VOLTAGE : 1,5 kV
APPLICATION
Used on marine vehicles as control and
communication cables in radio, radar and
information systems, where sustainable
connection during fire is required. Its twisted
pairs enables proper transmission of high
frequency signals, while its overall screen
minimizes environmental electromagnetic
interference.
ENVIRONMENT
Usable at all conditions in marine environment
such as dry, wet or oily locations, inside the
engine room, where electromagnetic protection
is required as well.
SAFETY
Even at direct contact with fire, it will sustain the
connection for 180min. That provides necessary
equipment (fire alarm and extinguishing systems,
water pumps, communication, radio, control
systems, lightning, etc.) to work uninterrupted
during a fire. Due to its halogen-free, low smoke
density and flame retardant features, it wont
create corrosive gases nor obstruct visibility and
prevents the fire from spreading around. Thus it
protects human life and equipment, during a
fire.
These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.
