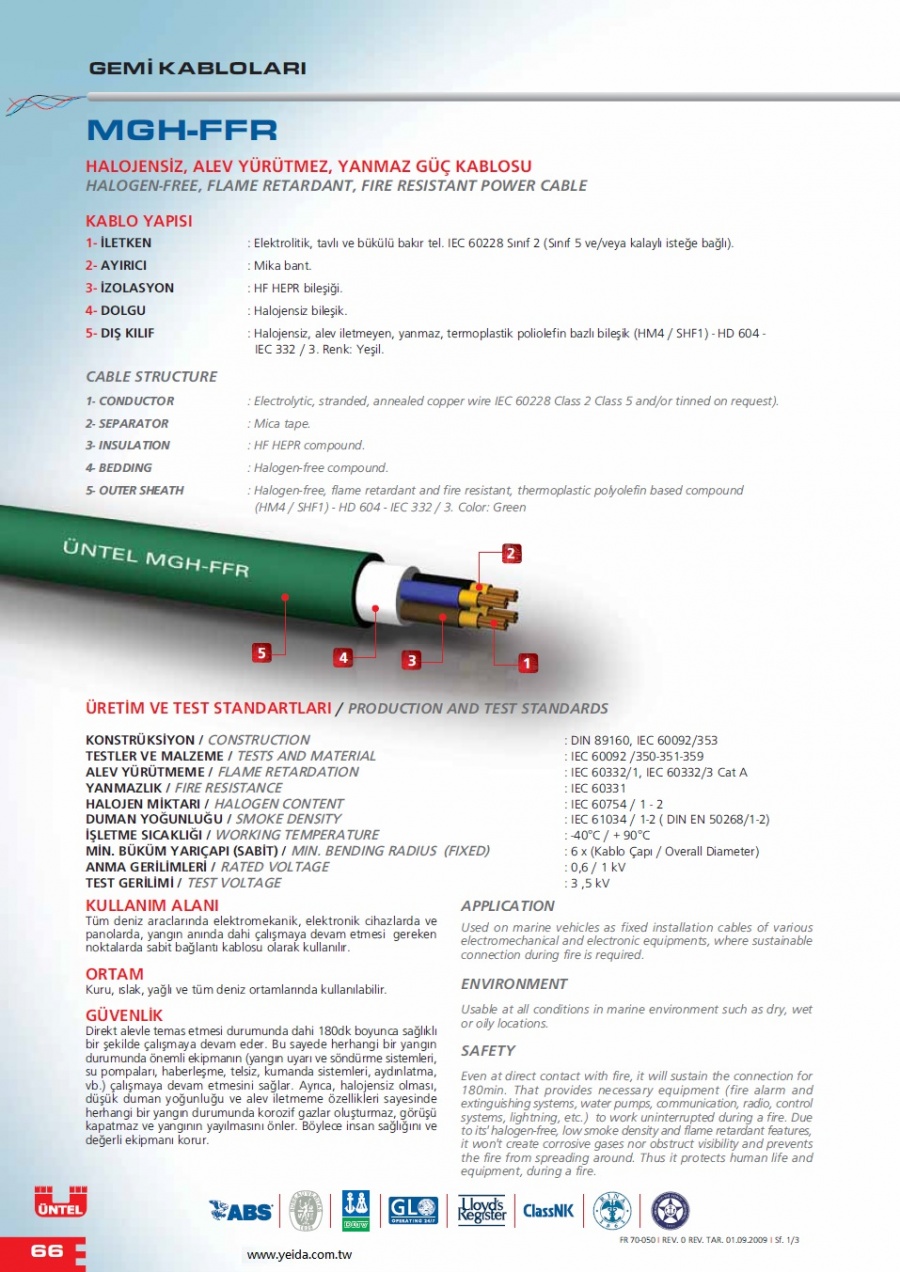

MGH-FFR
HALOGEN-FREE, FLAME RETARDANT, FIRE RESISTANT POWER CABLE
CABLE STRUCTURE
1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 Class 5 and/or tinned on request).
2- SEPARATOR : Mica tape.
3- INSULATION : HF HEPR compound.
4- BEDDING : Halogen-free compound.
5- OUTER SHEATH : Halogen-free, flame retardant and fire resistant, thermoplastic polyolefin based compound
(HM4 / SHF1) - HD 604 - IEC 332 / 3. Color: Green
PRODUCTION AND TEST STANDARDS
CONSTRUCTION : DIN 89160, IEC 60092/353
TESTS AND MATERIAL : IEC 60092 /350-351-359
FLAME RETARDATION : IEC 60332/1, IEC 60332/3 Cat A
FIRE RESISTANCE : IEC 60331
HALOGEN CONTENT : IEC 60754 / 1 - 2
SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 6 x (Kablo Çap› / Overall Diameter)
RATED VOLTAGE : 0,6 / 1 kV
TEST VOLTAGE : 3 ,5 kV
APPLICATION
Used on marine vehicles as fixed installation cables of various
electromechanical and electronic equipments, where sustainable
connection during fire is required.
ENVIRONMENT
Usable at all conditions in marine environment such as dry, wet
or oily locations.
SAFETY
Even at direct contact with fire, it will sustain the connection for
180min. That provides necessary equipment (fire alarm and
extinguishing systems, water pumps, communication, radio, control
systems, lightning, etc.) to work uninterrupted during a fire. Due
to its halogen-free, low smoke density and flame retardant features,
it wont create corrosive gases nor obstruct visibility and prevents
the fire from spreading around. Thus it protects human life and
equipment, during a fire.
These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.
