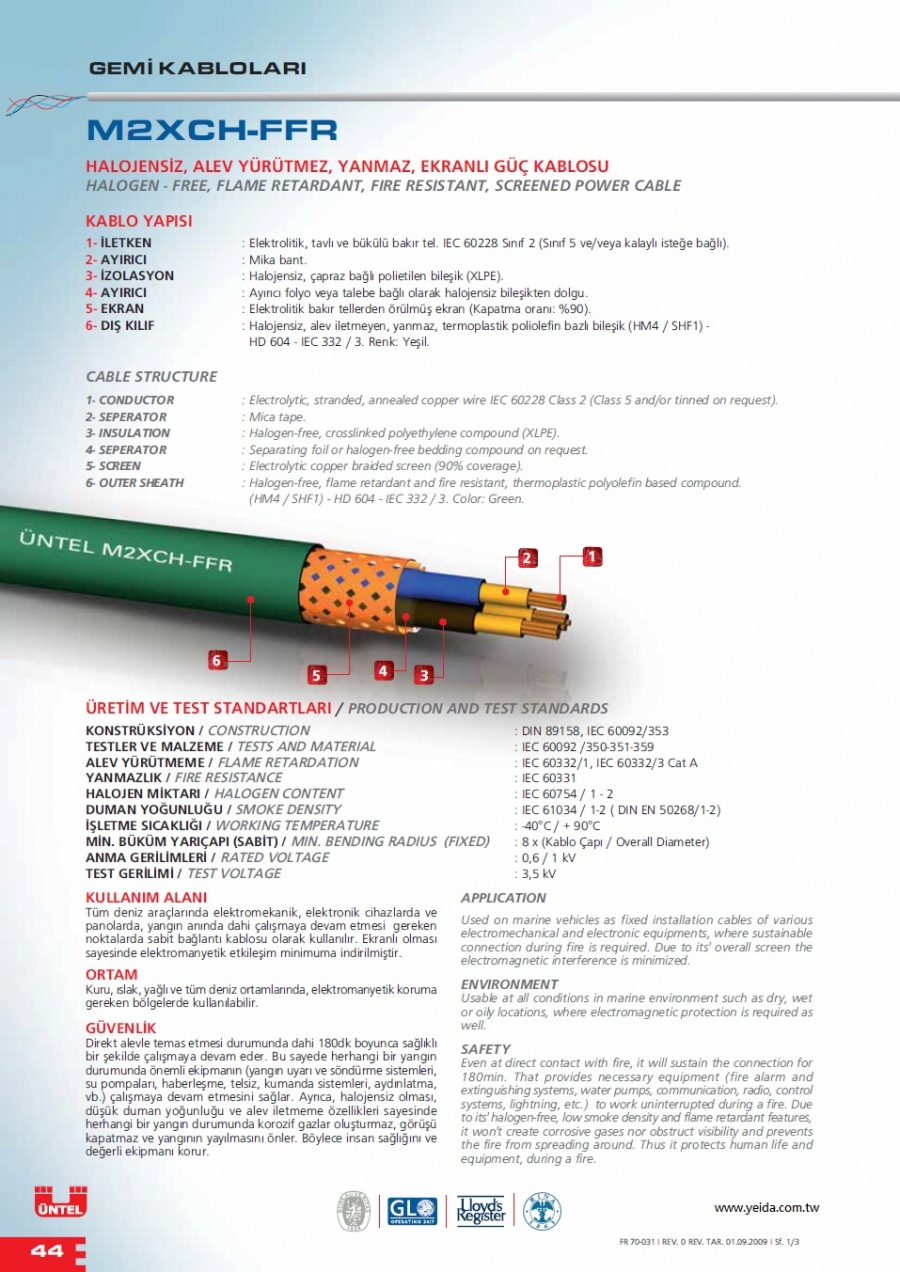

    M2XCH-FFR HALOGEN - FREE, FLAME RETARDANT, FIRE RESISTANT, SCREENED POWER CABLE 無鹵,阻燃,防火,屏蔽船舶用電源線
    看原圖
    30197428




    商品編號: UNTL-M2XCH-FFR

    M2XCH-FFR HALOGEN - FREE, FLAME RETARDANT, FIRE RESISTANT, SCREENED POWER CABLE 無鹵,阻燃,防火,屏蔽船舶用電源線



    ★★★★商品說明★★★★

    M2XCH-FFR

    HALOGEN - FREE, FLAME RETARDANT, FIRE RESISTANT, SCREENED POWER CABLE

    CABLE STRUCTURE

    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and/or tinned on request).

    2- SEPERATOR : Mica tape.

    3- INSULATION : Halogen-free, crosslinked polyethylene compound (XLPE).

    4- SEPERATOR : Separating foil or halogen-free bedding compound on request.

    5- SCREEN : Electrolytic copper braided screen (90% coverage).

    6- OUTER SHEATH : Halogen-free, flame retardant and fire resistant, thermoplastic polyolefin based compound. (HM4 / SHF1) - HD 604 - IEC 332 / 3. Color: Green.

    PRODUCTION AND TEST

    CONSTRUCTION : DIN 89158, IEC 60092/353

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332/1, IEC 60332/3

    FIRE RESISTANCE : IEC 60331

    HALOGEN CONTENT : IEC 60754 / 1 - 2

    SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)

    WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 8 x ( Overall Diameter)

    RATED VOLTAGE : 0,6 / 1 kV

     TEST VOLTAGE : 3,5 kV

    APPLICATION

    Used on marine vehicles as fixed installation cables of various electromechanical and electronic equipments, where sustainable connection during fire is required. Due to its overall screen the electromagnetic interference is minimized.

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations, where electromagnetic protection is required as well.

    SAFETY

    Even at direct contact with fire, it will sustain the connection for 180min. That provides necessary equipment (fire alarm and extinguishing systems, water pumps, communication, radio, control systems, lightning, etc.) to work uninterrupted during a fire. Due to its halogen-free, low smoke density and flame retardant features, it wont create corrosive gases nor obstruct visibility and prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
