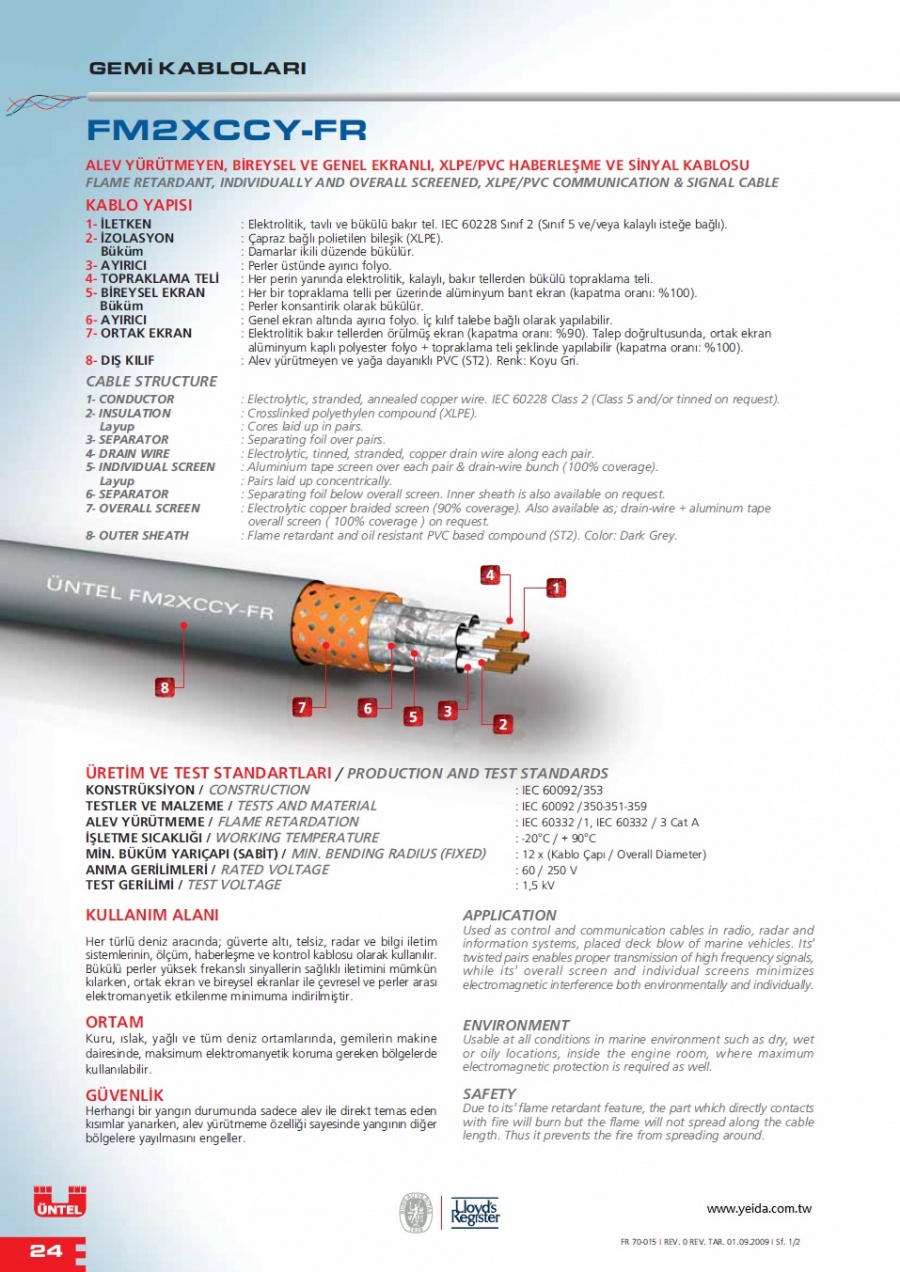

    FM2XCCY-FR FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED, XLPE/PVC COMMUNICATION & SIGNAL CABLE 阻燃,雙屏蔽船舶用通信和信號電纜
    看原圖
    30197507




    商品編號: UNTL-FM2XCCY-FR

    FM2XCCY-FR FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED, XLPE/PVC COMMUNICATION & SIGNAL CABLE 阻燃,雙屏蔽船舶用通信和信號電纜



    ★★★★商品說明★★★★

    FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED, XLPE/PVC COMMUNICATION & SIGNAL CABLE

    CABLE STRUCTURE

    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).

    2- INSULATION : Crosslinked polyethylen compound (XLPE). Layup : Cores laid up in pairs.

    3- SEPARATOR : Separating foil over pairs.

    4- DRAIN WIRE : Electrolytic, tinned, stranded, copper drain wire along each pair.

    5- INDIVIDUAL SCREEN : Aluminium tape screen over each pair & drain-wire bunch (100% coverage). Layup : Pairs laid up concentrically.

    6- SEPARATOR : Separating foil below overall screen. Inner sheath is also available on request.

    7- OVERALL SCREEN : Electrolytic copper braided screen (90% coverage). Also available as; drain-wire + aluminum tape overall screen ( 100% coverage ) on request.

    8- OUTER SHEATH : Flame retardant and oil resistant PVC based compound (ST2). Color: Dark Grey.

     PRODUCTION AND TEST STANDARDS

    CONSTRUCTION : IEC 60092/353

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    WORKING TEMPERATURE : -20°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 12 x (Kablo Çap› / Overall Diameter)

    RATED VOLTAGE : 60 / 250 V

     TEST VOLTAGE : 1,5 kV


    APPLICATION

    Used as control and communication cables in radio, radar and information systems, placed deck blow of marine vehicles. Its twisted pairs enables proper transmission of high frequency signals, while its overall screen and individual screens minimizes electromagnetic interference both environmentally and individually.
    作為在無線電,雷達和信息系統控制和通信電纜,船用放置車輛甲板的打擊。其“雙絞線使高頻信號的正確傳輸,而其”整體畫面和各個屏幕既環保且單獨最小化電磁干擾。

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations, inside the engine room, where maximum electromagnetic protection is required as well.

    可用在海洋環境中,如乾燥,潮濕或油膩的位置,機房,當需要以及最大的電磁防護中的所有條件。

    SAFETY

    Due to its flame retardant feature, the part which directly contacts with fire will burn but the flame will not spread along the cable length. Thus it prevents the fire from spreading around.
    由於其“阻燃功能,它與火直接接觸會燃燒,但火焰不會沿電纜長度傳播的一部分。因此,防止火勢蔓延左右。
