    LAPP OLFLEX TORSION FRNC Cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV風力發電用
    看原圖
    		5348513

    商品編號: LAPP-OLFLEX-TORSION-FRNC , google, yahoo, msn, belden

    LAPP-ÖLFLEX® TORSION FRNC Cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV 風力發電用線

    The special construction compensates reliably the permanent torsional movements inside of windmills between the nacelle and the tower; The high flexibility and the good dismantle and stripping properties enable easy space- saving cable installation and fast processing; Saltwater resistant for On- and Off-Shore application; FRNC = Flame Retardant Non Corrosive - Reduction of flame propagation and   density and toxicity of smoke gases   in event of fire - Minimisation of damage to buildings   and production facilities - Safety for maintenance staff resp. in   areas with high personnel concen-   tration; The copper wrapping of the screened D version protects against electromagnetic interference

    Application range

    • For fixed, flexible as well as for torsional moved applications in the field of machinery building and wind power plant engineering
    • Especially for the drip loop installation between the rotating nacelle and the stationary windmill tower to connect the generator and control units
    • As torsional moved cable for application in North America with UL WTTC Listing (Wind Turbine Tray Cable) we recommend ÖLFLEX® FORTIS which complies to the NFPA 79 standard resp. UL 2277 and UL 6140 outline
    Part number Number of cores and mm² per conductor Outer diameter in mm Copper index kg/km Weight kg/km
    ÖLFLEX® TORSION FRNC
    1150199 12 G 0,75 12,4 86.4 237
    1150377 14 G 0,75 13.0 100.8 291
    1150201 18 G 0,75 14,6 129.6 323
    1150204 25 G 0,75 17,8 180.0 480
    1150208 50 G 0,75 24,2 360.0 886

    1150373 12 G 1,0 13,2 115.2 274
    1150378 16 G 1,0 14,8 153.6 392

    1150271 3 G 1,5 9.0 43.2 131
    1150272 4 G 1,5 9,7 57.6 156
    1150273 5 G 1,5 10,6 72.0 183
    1150275 7 G 1,5 12,6 100.8 253
    1150279 12 G 1,5 15,3 172.8 386
    1150280 18 G 1,5 18,3 259.2 563
    1150374 25 G 1,5 22,8 360.0 837
    1150375 32 G 1,5 24,5 460.8 994

    1150311 3 G 2,5 10,4 72.0 181
    1150312 4 G 2,5 11,3 96.0 242
    1150313 5 G 2,5 12,4 120.0 258
    1150315 7 G 2,5 15.0 168.0 372
    1150319 12 G 2,5 18,9 288.0 567
    1150322 19 G 2,5 23,9 456.0 925
    1150376 25 G 2,5 26,8 600.0 1183

    1150350 3 G 4 11,9 115.2 254
    1150351 4 G 4 13.0 153.6 313
    1150352 5 G 4 14,3 192.0 370

    1150355 3 G 6 12,9 173.0 338
    1150356 4 G 6 14,4 230.4 401
    1150357 5 G 6 16.0 288.0 486

    1150360 3 G 10 16,6 288.0 556.1
    1150361 4 G 10 18,4 384.0 658
    1150362 5 G 10 20,5 480.0 799

    1150366 4 G 16 22,2 614.4 1061
    1150367 5 G 16 24,4 768.0 1188

    1150371 4 G 25 26,9 960.0 1526
    1150372 5 G 25 29,9 1200.0 1881

    1150369 5 G 35 33,7 1680.0 2520

    1150379 5 G 50 39,5 2400.0 3710

    Footnote:
    All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
    Copper price basis: EUR 150 / 100 kg; For utilization and definition of 'Metal price basis' and 'Metal index' see Appendix T17
    Packaging size: Coil ≤ 30 kg and ≤ 250 m, otherwise drum
    Please specify the desired packaging size (e.g. 1 x 500 m drum or 5 x 100 m coils)
    Photographs are not to scale and do not represent detailed images of the respective products.



    Technical Data

    Core identification code
    Control and connection cables: Colour coded according to VDE 0293-308, see Appendix T9 Starting at 6 cores: Black with white numbers
    Paired signal cables: DIN 47100
    　
    Approvals
    UL AWM Style 21288 cUL AWM II A/B
    　
    Specific insulation resistance
    > 20 GOhm x cm
    　
    Conductor stranding
    Extra fine wire in acc. to VDE 0295 Cl.6 / IEC 60228 Cl.6
    (For matching US conductor sizes according AWG please see technical table T16)
    　
    Minimum bending radius
    Flexible use: 10 x outer diameter
    Fixed installed: 6 x outer diameter
    　
    Rated voltage
    nach VDE: U0/U 0,6/1,0 kV
    Working voltage acc. UL: 1000V
    　
    Test voltage
    C/C: 4000 V
    　
    Protective conductor
    G = with protective conductor GN/YE
    X = without protective conductor
    　
    Range of temperature
    Flexible use: -40°C up to +90°C (UL +80°C)
    Static use: -40°C up to +90°C (UL +80°C)
    　

    Design

    • Extra fine wired conductor of plain copper
    • Core insulation of LS0H polyolefin polymer
    • Cores torsion optimized twisted into layers
    • Optional screening (D) of helically tinned copper wire wrapping
    • Outer sheath of halogen free special compound, colour black (RAL 9005)

    Approvals (Norm references)

    • UL AWM Style 21288 / cUL AWM II A/B
    • Fire behaviour : - Halogen free (IEC 60754-1) - Corrosivity of gases (IEC 60754-2) - Smoke density (IEC 61034-2) - Flame retardant (IEC 60332-1-2) - No flame propagation (IEC 60332-3-24   resp. IEC 60332-3-25)
    • Oil resistant acc. to EN 60811-2-1 and UL OIL RES I and UL OIL RES II
    • UV-resistant according ISO 4892-2
    • Ozone resistant according EN 50396

    Product features

    • Torsion-resistant up to ±150 °/mtr
    • Good weather-, abrasion-, temperature- and UV resistance
    • Resistant against a multitude of oils
    • Halogen free and highly flame retardant
    • Considering economic minimum quantities also customized designs are possible

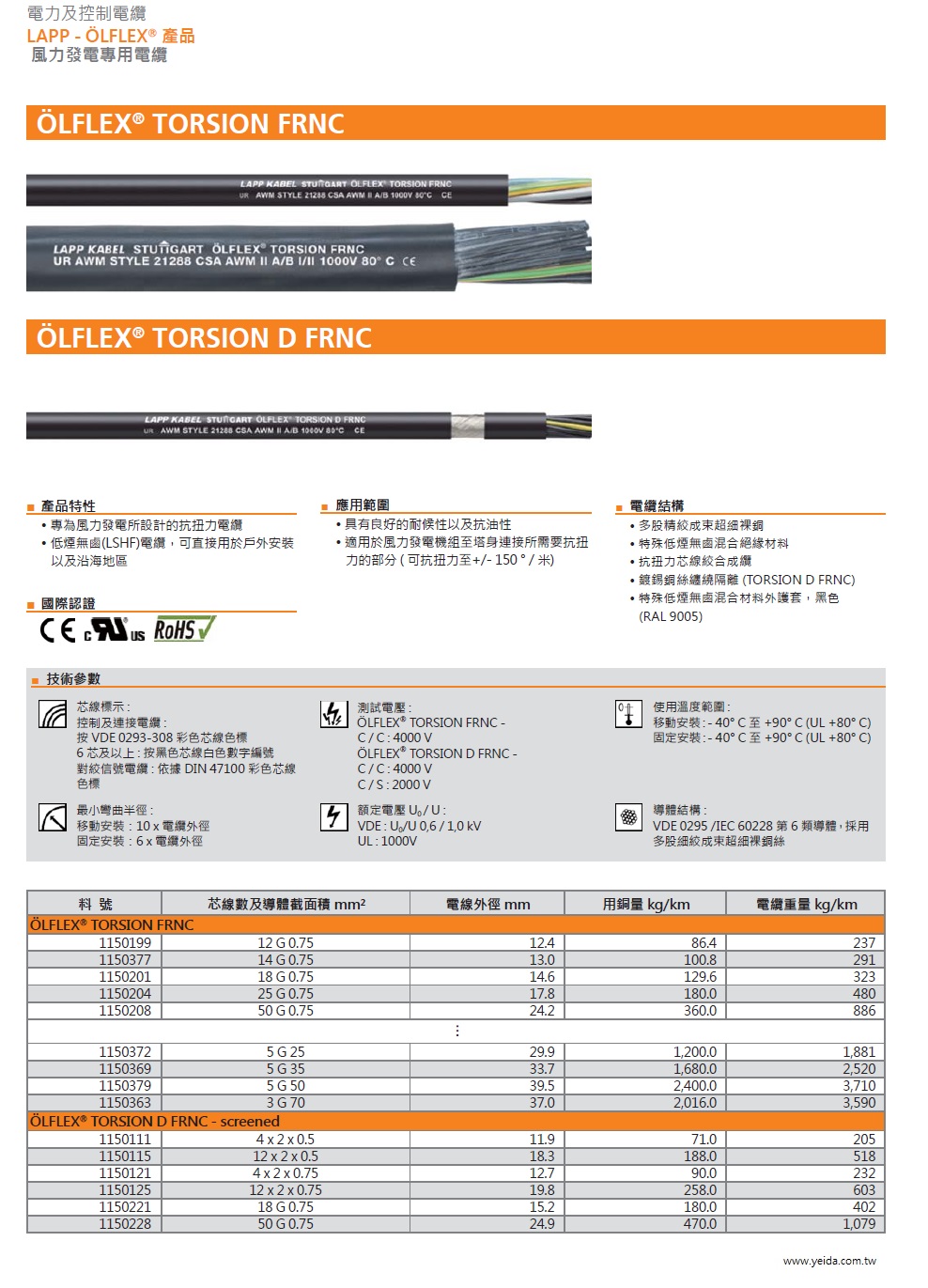

    LAPP OLFLEX® TORSION FRNC Cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV風力發電用線

    ■ 產品特性
    • 專為風力發電所設計的抗扭力電纜
    • 低煙無鹵(LSHF)電纜，可直接用於戶外安裝
    以及沿海地區

    ■ 國際認證 CE, UL, CSA, ROHS

    ■ 應用範圍
    • 具有良好的耐候性以及抗油性
    • 適用於風力發電機組至塔身連接所需要抗扭
    力的部分 ( 可抗扭力至+/- 150 ° / 米)

    ■ 電纜結構
    • 多股精絞成束超細裸銅
    • 特殊低煙無鹵混合絕緣材料
    • 抗扭力芯線絞合成纜
    • 鍍錫銅絲纏繞隔離 (TORSION D FRNC)
    • 特殊低煙無鹵混合材料外護套，黑色
    (RAL 9005)

    ■ 技術參數
    芯線標示:
    控制及連接電纜:
    按VDE 0293-308 彩色芯線色標
    6 芯及以上: 按黑色芯線白色數字編號
    對絞信號電纜: 依據DIN 47100 彩色芯線
    色標

    額定電壓U0 / U :
    VDE : U0/U 0,6 / 1,0 kV
    UL : 1000V

    測試電壓 :
    ÖLFLEX® TORSION FRNC -
    C / C : 4000 V
    ÖLFLEX® TORSION D FRNC -
    C / C : 4000 V
    C / S : 2000 V

    導體結構 :
    VDE 0295 /IEC 60228 第6 類導體，採用
    多股細絞成束超細裸銅絲

    最小彎曲半徑 :
    移動安裝：10 x 電纜外徑
    固定安裝：6 x 電纜外徑

    使用溫度範圍：
    移動安裝：- 40° C 至 +90° C (UL +80° C)
    固定安裝：- 40° C 至 +90° C (UL +80° C)
