    LAPP OLFLEX TORSION D FRNC Screened cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV 風力發電用線
    看原圖
    		5348519

    商品編號: LAPP-OLFLEX-TORSION-D-FRNC, google, yahoo, alibaba

    LAPP OLFLEX TORSION D FRNC Screened cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV 鍍錫銅絲纏繞隔離風力發電用線

    The special construction compensates reliably the permanent torsional movements inside of windmills between the nacelle and the tower; The high flexibility and the good dismantle and stripping properties enable easy space- saving cable installation and fast processing; Saltwater resistant for On- and Off-Shore application; FRNC = Flame Retardant Non Corrosive - Reduction of flame propagation and   density and toxicity of smoke gases   in event of fire - Minimisation of damage to buildings   and production facilities - Safety for maintenance staff resp. in   areas with high personnel concen-   tration; The copper wrapping of the screened D version protects against electromagnetic interference

    Application range

    • For fixed, flexible as well as for torsional moved applications in the field of machinery building and wind power plant engineering
    • Especially for the drip loop installation between the rotating nacelle and the stationary windmill tower to connect the generator and control units
    • As torsional moved cable for application in North America with UL WTTC Listing (Wind Turbine Tray Cable) we recommend ÖLFLEX® FORTIS which complies to the NFPA 79 standard resp. UL 2277 and UL 6140 outline
    Part number Number of cores and mm² per conductor Outer diameter in mm Copper index kg/km Weight kg/km
    ÖLFLEX® TORSION D FRNC - screened
    1150111 4 x 2 x 0,5 11,9 71.0 205
    1150115 12 x 2 x 0,5 18,3 188.0 518
    1150121 4 x 2 x 0,75 12,7 90.0 232
    1150125 12 x 2 x 0,75 19,8 258.0 603
    1150221 18 G 0,75 15,2 180.0 402
    1150228 50 G 0,75 24,9 470.0 1079

    Footnote:
    All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
    Copper price basis: EUR 150 / 100 kg; For utilization and definition of 'Metal price basis' and 'Metal index' see Appendix T17
    Packaging size: Coil ≤ 30 kg and ≤ 250 m, otherwise drum
    Please specify the desired packaging size (e.g. 1 x 500 m drum or 5 x 100 m coils)
    Photographs are not to scale and do not represent detailed images of the respective products.


    Technical Data

    Core identification code
    Control and connection cables: Colour coded according to VDE 0293-308, see Appendix T9 Starting at 6 cores: Black with white numbers
    Paired signal cables: DIN 47100
    　
    Approvals
    UL AWM Style 21288 cUL AWM II A/B
    　
    Specific insulation resistance
    > 20 GOhm x cm
    　
    Conductor stranding
    Extra fine wire in acc. to VDE 0295 Cl.6 / IEC 60228 Cl.6
    　
    Minimum bending radius
    Flexible use: 10 x outer diameter
    Fixed installed: 6 x outer diameter
    　
    Rated voltage
    nach VDE: U0/U 0,6/1,0 kV
    Working voltage acc. UL: 1000V
    　
    Test voltage
    C/C: 4000 V C/S: 2000 V
    　
    Protective conductor
    G = with protective conductor GN/YE
    X = without protective conductor
    　
    Range of temperature
    Flexible use: -40°C up to +90°C (UL +80°C)
    Static use: -40°C up to +90°C (UL +80°C)
    　

    Design

    • Extra fine wired conductor of plain copper
    • Core insulation of LS0H polyolefin polymer
    • Cores torsion optimized twisted into layers
    • Optional screening (D) of helically tinned copper wire wrapping
    • Outer sheath of halogen free special compound, colour black (RAL 9005)

    Approvals (Norm references)

    • UL AWM Style 21288 / cUL AWM II A/B
    • Fire behaviour : - Halogen free (IEC 60754-1) - Corrosivity of gases (IEC 60754-2) - Smoke density (IEC 61034-2) - Flame retardant (IEC 60332-1-2) - No flame propagation (IEC 60332-3-24   resp. IEC 60332-3-25)
    • Oil resistant acc. to EN 60811-2-1 and UL OIL RES I and UL OIL RES II
    • UV-resistant according ISO 4892-2
    • Ozone resistant according EN 50396

    Product features

    • Torsion-resistant up to ±150 °/mtr
    • Good weather-, abrasion-, temperature- and UV resistance
    • Resistant against a multitude of oils
    • Halogen free and highly flame retardant
    • Considering economic minimum quantities also customized designs are possible

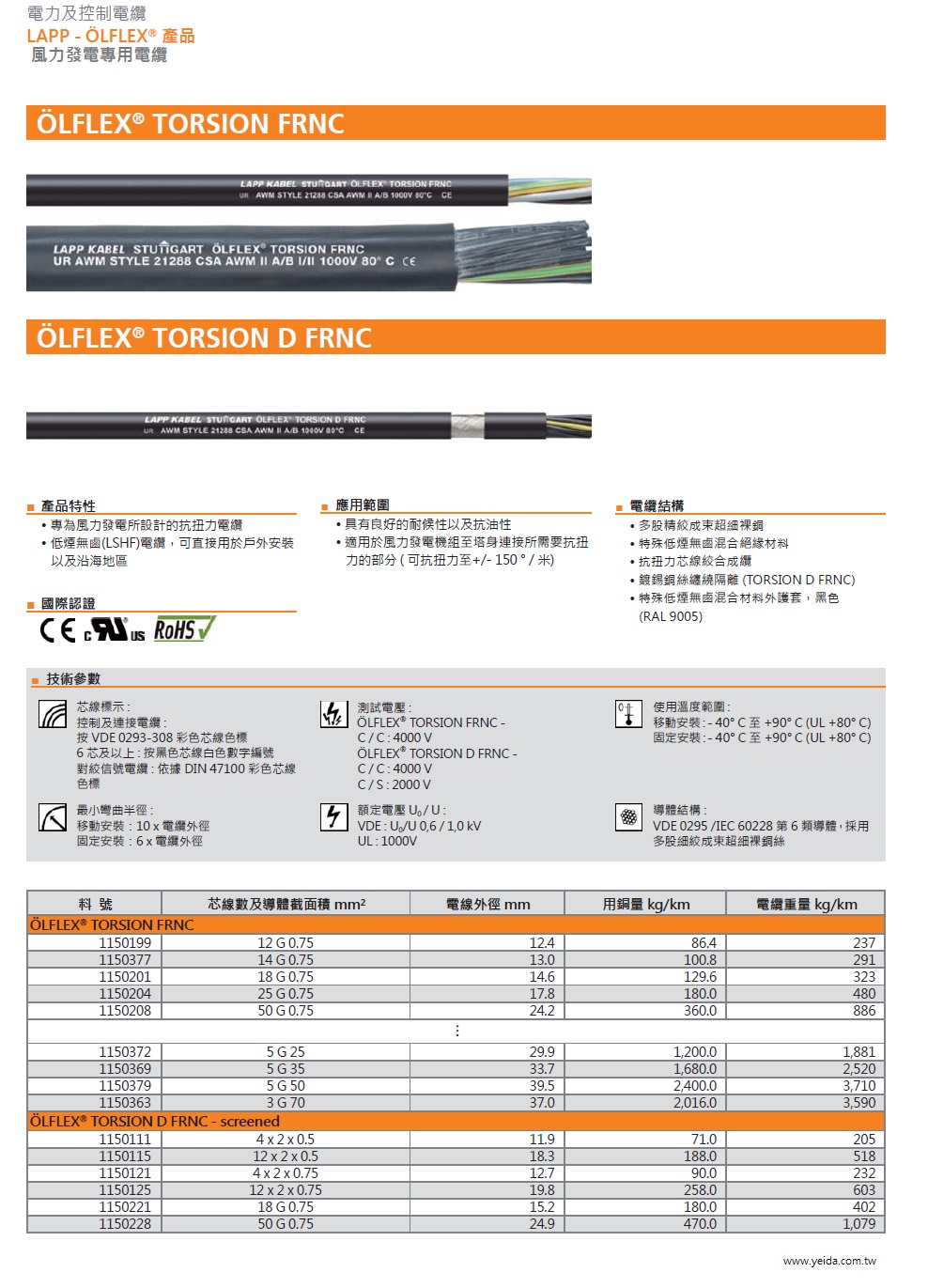

    • LAPP OLFLEX® TORSION FRNC Cold- and oil resistant cables for flexible application under torsional load, halogen free - 0,6/1 kV風力發電用線

      ■ 產品特性
      • 專為風力發電所設計的抗扭力電纜
      • 低煙無鹵(LSHF)電纜，可直接用於戶外安裝
      以及沿海地區

      ■ 國際認證 CE, UL, CSA, ROHS

      ■ 應用範圍
      • 具有良好的耐候性以及抗油性
      • 適用於風力發電機組至塔身連接所需要抗扭
      力的部分 ( 可抗扭力至+/- 150 ° / 米)

      ■ 電纜結構
      • 多股精絞成束超細裸銅
      • 特殊低煙無鹵混合絕緣材料
      • 抗扭力芯線絞合成纜
      • 鍍錫銅絲纏繞隔離 (TORSION D FRNC)
      • 特殊低煙無鹵混合材料外護套，黑色
      (RAL 9005)

      ■ 技術參數
      芯線標示:
      控制及連接電纜:
      按VDE 0293-308 彩色芯線色標
      6 芯及以上: 按黑色芯線白色數字編號
      對絞信號電纜: 依據DIN 47100 彩色芯線
      色標

      額定電壓U0 / U :
      VDE : U0/U 0,6 / 1,0 kV
      UL : 1000V

      測試電壓 :
      ÖLFLEX® TORSION FRNC -
      C / C : 4000 V
      ÖLFLEX® TORSION D FRNC -
      C / C : 4000 V
      C / S : 2000 V

      導體結構 :
      VDE 0295 /IEC 60228 第6 類導體，採用
      多股細絞成束超細裸銅絲

      最小彎曲半徑 :
      移動安裝：10 x 電纜外徑
      固定安裝：6 x 電纜外徑

      使用溫度範圍：
      移動安裝：- 40° C 至 +90° C (UL +80° C)
      固定安裝：- 40° C 至 +90° C (UL +80° C)
