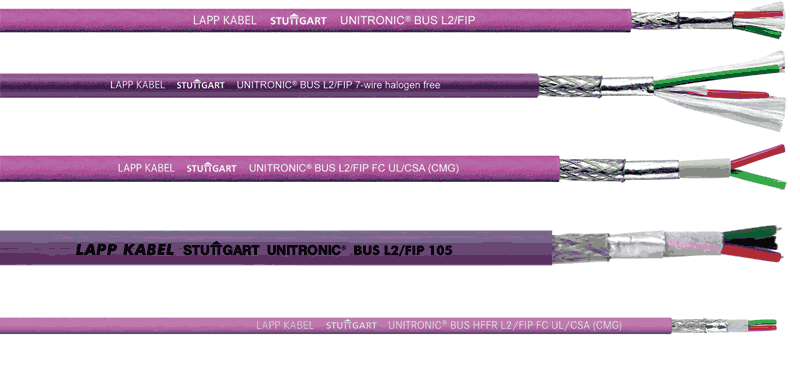

    LAPP-UNITRONIC® BUS- Profibus® DP- Stationary DP (SIMATIC NET), FMS and FIP150 Ohm BUS for Static Applications
    看原圖
    		5077447




    商品編號: LAPP-UNITRONIC-BUS-Profibus-DP

    LAPP-UNITRONIC® BUS- Profibus® DP- Stationary DP (SIMATIC NET), FMS and FIP150 Ohm BUS for Static Applications

    UNITRONIC® BUS - Profibus DP cables are designed for field networks requiring fast, cyclic data exchange between controllers and field devices. Automation devices such as PLCs, PCs, HMI devices, sensors or actuators can communicate via this bus system.

    Recommended Applications:
    Factory, Process and Building Automation field networks.

    Application Advantage:
    • High performance EMC shielding
    • Designed to profibus user Organization (PNO) standards
    • Quick connect option for fast IDC connector termination
    • Suitable for RS-422 and RS-485



    ★★★★商品說明★★★★

    Solid and stranded bare copper conductors; specially designed foil/tinned copper braid shielding; multiple jacketing options for specific applications including PE, Halogen-Free, Quick Connect PVC, TPE and PVC.
    Stationary BUS Cables
    Availability
    		Standard put-ups are 164ft, 328ft, 1640ft and 3,280ft. Bulk reels can be cut to length.

    　
    OR-01
    FR-02
    FL-
    01
    MP-01

    PROFIBUS-DP

    FIP
    Communication Rate
    Feet
    Meters
    Communication Rate
    Feet
    Meters
    9.6 Kbps
    3936
    1200
    1.0 Kbps
    656
    200
    19.2 Kbps
    3936
    1200
    2.5 Kbps
    656
    200
    187.5 Kbps
    3280
    1000
    500 Kbps
    1312
    400
    1.5 Mbps
    656
    200
    12.0 Mbps
    328
    100


    　

    Minimum Bend Radius: 10 x cable diameter
    Temperature Range: -40°C to +80°C
    Nominal Voltage: 250V
    Test Voltage: 1500V
    Character Impedance: 150 Ohm +/- 10 Ohm
    Nominal Capacitance: 9 pf/ft
    Color Code: Red/Green
    Approvals:
      UL: - CMG
        - PLTC
        - 600V AWM


    ★★★★商品規格描述★★★★

    Part Number Jacket Conductor Description Jacket Color Nominal
    Outer Diameter         		Approx
    Weight
    inches mm lbs/mft kg/km
    Profibus DP, FMS, or FIP (Static Install)
    2170219 PVC 22 AWG/1 pr Violet 0.315 8 38 57
    2170233 PE 22 AWG/1pr Violet 0.315 8 38 57
    2170824 PVC 24 AWG/ 1 pr (7/30) Violet 0.315 8 37 55
    Quick Connect- Profibus DP, FMS, or FIP (Static Install)
    2170820 PVC 22 AWG/1pr Violet 0.315 8 51 76
    2170826 PVC 24 AWG/ 1 pr (7/30) Violet 0.315 8 45 67
    2170853 Halogen-Free 22 AWG/1pr Violet 0.315 8 50 75
    High Temp (105蚓)- Profibus DP, FMS or FIP (Static Install)
    2170630 PVC 24 AWG/ 1 pr (7/30) Violet 0.315 8 47 70
    * 2170233 & 2170630- UL/CSA Pending
    ** 2170219- UL (CMX)
