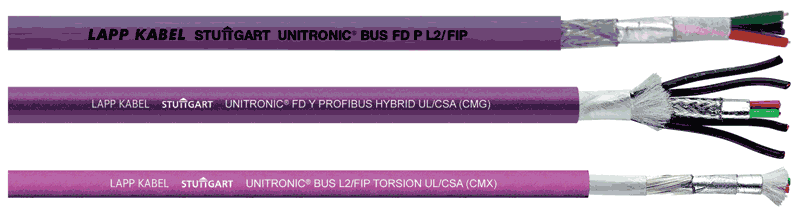

    LAPP-UNITRONIC® BUS FD- Profibus DP (SIMATIC NET), FMS and FIP 150 Ohm for Continuous Flex Applications
    看原圖
    		5077448




    商品編號: LAPP-UNITRONIC-BUS-FD

    LAPP-UNITRONIC® BUS FD- Profibus DP (SIMATIC NET), FMS and FIP 150 Ohm for Continuous Flex Applications



    UNITRONIC® BUS - Profibus DP cables are designed for field networks requiring fast, cyclic data exchange between controllers and field devices. Automation devices such as PLCs, PCs, HMI devices, sensors or actuators can communicate via this bus system.

    Recommended Applications:
    Robotics, Motion Control, Industrial Automation field networks.

    Application Advantage:
    • High performance EMC shielding
    • Stranding for continuous flex operation
    • Designed to profibus user organization (PNO) standards
    • Quick connect option for fast IDC connector termination
    • Suitable for RS-422 and RS-485



    ★★★★商品說明★★★★

    Stranded bare copper conductors; specially designed foil/tinned copper braid shielding; multiple jacketing options for specific applications including Quick Connect PVC, Flexible Abrasion and Oil Resistant PUR.
    Availability
    		Standard put-ups are 164ft, 328ft, 1640ft and 3,280ft. Bulk reels can be cut to length.

    　
    OR-01
    FR-02
    FL-
    01
    MP-01

    PROFIBUS-DP

    FIP
    Communication Rate
    Feet
    Meters
    Communication Rate
    Feet
    Meters
    9.6 Kbps
    3936
    1200
    1.0 Kbps
    656
    200
    19.2 Kbps
    3936
    1200
    2.5 Kbps
    656
    200
    187.5 Kbps
    3280
    1000
    500 Kbps
    1312
    400
    1.5 Mbps
    656
    200
    12.0 Mbps
    328
    100


    Minimum Bend Radius:
      - Static: 8 x cable diameter
      - Flexing: 15 x cable diameter
    Temperature Range: -25°C to +75°C
    Nominal Voltage: 300V
      2170331 & 2170875 600V
    Test Voltage: 2000V
    Character Impedance: 150 Ohm +/- 10 Ohm
    Nominal Capacitance: 9 pf/ft
    Color Code: Red/Green Pairs
    Approvals: UL: - CMG
        - PLTC
        - 600V AWM


    ★★★★商品規格描述★★★★

    Part Number Jacket Conductor Description Jacket Color Nominal
    Outer Diameter         		Approx
    Weight
    inches mm lbs/mft kg/km
    Quick Connect- Profibus DP, FMS, or FIP
    2170322 PVC 24 AWG/ 1pr Violet .315 8 43 64
    2170854 PUR 24 AWG/ 1pr Violet .315 8 43 64
    Torsion Flex- Profibus DP, FMS or FIP
    2170332 PUR 24 AWG/ 1pr Violet .315 8 44 66
    Festoon Cable- Profibus DP, FMS or FIP
    2170331 PVC 24 AWG/ 1pr Violet .315 8 40 60
    Hybrid Cable- Profibus DP, FMS or FIP
    2170875 PVC 24 AWG/ 1pr + 16/4c Violet .433 11 104 155
    * 2170322 & 2170332- UL (CMX)
