    LAPP-UNITRONIC® BUS- INTERBUS™100 Ohm BUS Cable for Static and Continuous Flex Applications
    看原圖
    		5077454




    商品編號: LAPP-UNITRONIC-BUS-INTERBUS

    LAPP-UNITRONIC® BUS- INTERBUS™100 Ohm BUS Cable for Static and Continuous Flex Applications

    UNITRONIC® BUS - Interbus™ cables are widely used for field bus wiring of nodes and I/O due to its inherent high speed and maximum diagnostic capabilities. Due to its unique network topology, Interbus networks are self configuring making startup easy and simplifying troubleshooting.

    Recommended Applications:
    Assembly, welding and material handling machines. Single-cable wiring of multi-input sensor blocks, pneumatic valves, barcode readers, drives and operator interfaces. Also can be used with Sensor Loop and AS-I sub-networks.

    Application Advantage:
    • Oil and UV resistant
    • Highly flexible for ease of routing (static cables) or for use in continuous flex applications (flexing cables)
    • Certified by INTERBUS-CLUB
    • Highly flame resistant (UL-VW1)



    ★★★★商品說明★★★★

    Stranded bare copper conductors; PE insulation; overall flexible tinned copper braid shield (90%); welded corrugated copper armoring also available; PVC or halogen-free PUR jackets.

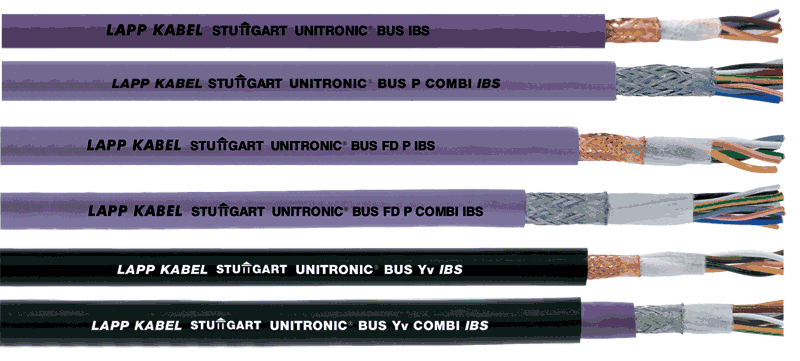

    Flexible Interbus Cables
    Availability
    		Standard put-ups are 164ft, 328ft, 1640ft and 3,280ft. Bulk reels can be cut to length.

    　
    OR-05
    FR-02
    FL-
    02
    MP-01


    Minimum Bend Radius:   8 x cable diameter
    Temperature Range:
      - Static:   -40°C to +80°C
      - Flexing:   -30°C to +70°C
    Nominal Voltage:   250V
    Test Voltage:   1500V
    Character Impedance:   100 Ohm +/- 20 Ohms
    Nominal Capacitance:   18 pF/ft
    Color Code:   DIN 47100, Chart 7
          17/3c: Red, Blue, Green/Yellow
    Approvals: UL: CMX
        CSA: CMX


    ★★★★商品規格描述★★★★

    Part Number AWG Size # of Conductors # of Pairs Description Jacket Color Nominal
    Outer
    Diameter         		Approx
    Weight
    inches mm lbs/mft kg/km
    Static Remote Bus Cable (RBC)
    2170209 24 AWG 　 3 Static RBC Violet 0.283 7.2 48 72
    2170207 24 AWG 　 3 Direct Burial RBC Black 0.366 9.3 63 94
    Static Installation Bus Cable (INBC)
    2170208 24 AWG 3 3 Static INBC Violet 0.311 7.9 57 85
    2170808 24 AWG 3 3 Static INBC (UL/CSA) Violet 0.311 7.9 57 85
    2170817 24 AWG 3 3 Direct Burial INBC Black 0.370 9.4 86 94
    Continuous Flex Remote Bus Cable (RBC)
    2170216 24 AWG 　 3 Flex RBC Violet 0.311 7.9 43 64
    2170816 24 AWG 　 3 Flex RBC (UL/CSA) Violet 0.311 7.9 43 64
    Continuous Flex Installation Bus Cable (INBC)
    2170218 24 AWG 3 3 Flex INBC Violet 0.311 7.9 62 92
    2170818 24 AWG 3 3 Flex INBC (UL/CSA) Violet 0.311 7.9 62 92
    *Key to description terms:
    P=Polyurethane outer jacket
    Combi=Remote installation cable for Interbus (bus cable & power supply)
    IBS=Remote bus cable for Interbus
    Yv=Reinforced PVC jacket

    Interbus is a registered trademark of Phoenix Contact.
    Lapp is a member of the INTERBUS Club.
