    LAPP-OLFLEX PLUG 540 P Connection Cable工業級歐規接頭連接線 Robust, VDE-registered connection cable with international connector plugs
    看原圖
    5323202

    商品編號: LAPP-OLFLEX-PLUG-540-P

    LAPP, OLFLEX PLUG 540 P Connection Cable工業級歐規接頭連接線 Robust, VDE-registered connection cable with international connector plugs

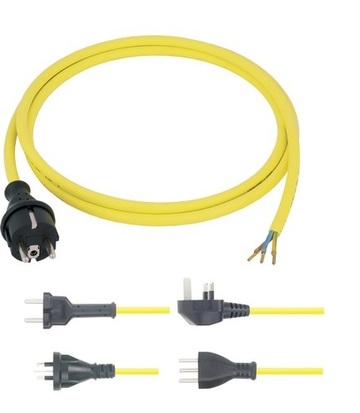

    ÖLFLEX® PLUG 540 P Connection Cable

    Robust, VDE-registered connection cable with international connector plugs

     VDE approval for cable and connector; Safety colour: Yellow

    Application range

    • Harsh use conditions
    • Mechanical engineering
    • Construction industry
    • Medical equipment
    • In damp rooms or outdoors
    Part number Number of cores and mm² per conductor Cable diameter/ in mm Length in m Copper index kg/km
    ÖLFLEX® 540 P VDE-REG.-No. 6583, U0/U: 300/500 V, with contour plug
    73220842 2 X 1 7 2 38.4
    73220843 2 X 1 7 3.5 67.2
    73220844 2 X 1 7 5 96
    ÖLFLEX® 540 P VDE-REG.-No. 6584, U0/U: 450/750 V, with contour plug
    73221558 2 X 1,5 8,4 2 58
    73221559 2 X 1,5 8,4 3 101.5
    73221560 2 X 1,5 8,4 5 145
    ÖLFLEX® 540 P VDE-REG.-No. 6583, U0/U: 300/500 V, with shock-proof plug
    73220846 3 G 0,75 7 2 43.2
    73220847 3 G 0,75 7 3.5 75.6
    73220848 3 G 0,75 7 5 108
    ÖLFLEX® 540 P VDE-REG.-No. 6584, U0/U: 300/500 V, with shock-proof plug
    73221561 3 G 1 7,4 2 58
    73221562 3 G 1 7,4 3.5 101.5
    73221563 3 G 1 7,4 5 145
    ÖLFLEX® 540 P VDE-REG.-No. 6584, U0/U: 450/750 V, with shock-proof plug
    73220849 3 G 1,5 8,9 2 86
    73220850 3 G 1,5 8,9 3.5 150.6
    73220851 3 G 1,5 8,9 5 215

    Design

    • Strands of tinned copper wires
    • Core insulation: TPE
    • Special polyurethane outer sheath
    • First end: injection moulded, straight contour or shock-proof connector
    • 2nd end: 30 mm stripped, with conductor end sleeves

    Product features

    • Good resistance of the outer sheath to cutting and abrasion
    • High resistance to oil, low temperatures, microbes and hydrolysis
    • Special, flame-retardant polyurethane sheath compound
