    LAPP, Pre-wired front plug for PLC SIMATIC® S7-300 工業級含接頭連接線
    看原圖
    		5323221

    商品編號: LAPP-PLUG-SIMATIC-S7-300

    LAPP, Pre-wired front plug for PLC SIMATIC® S7-300工業級欲接線前插頭連接線

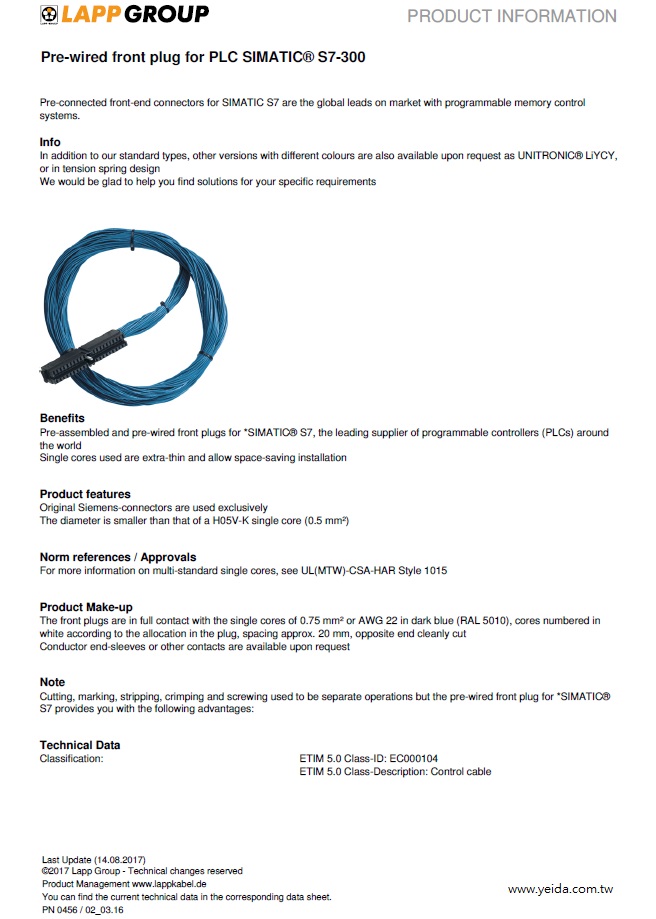

    Pre-wired front plug for PLC SIMATIC® S7-300

     Pre-assembled and pre-wired front plugs for *SIMATIC® S7, the leading supplier of programmable controllers (PLCs) around the world; Single cores used are extra thin and allow space saving installation

    Part number Colour mm² Length in m SEW item designation Copper index kg/km Weight kg/1000 pieces
    Pre-wired front plug for PLC SIMATIC® S7-300 (392-1AJ00-0AA0) 20-pole, screw-on version
    70268724 deep blue RAL 5010 0,75 1   144 350
    70268409 deep blue RAL 5010 0,75 2   288 500
    70267059 deep blue RAL 5010 0,75 3   432 700
    70262618 deep blue RAL 5010 0,75 4   576 900
    70267060 deep blue RAL 5010 0,75 5   720 1150

    Pre-wired front plug for PLC SIMATIC® S7-300 (392-1AM00-0AA0) 40-pole, screw-on version
    70268725 deep blue RAL 5010 0,75 1   288 800
    70268410 deep blue RAL 5010 0,75 2   576 1000
    70268411 deep blue RAL 5010 0,75 3   864 1400
    70260001 deep blue RAL 5010 0,75 4   1152 1800
    70268412 deep blue RAL 5010 0,75 5   1440 2250
    70260018 dark blue RAL 5010 - with UL(MTW) single cores 0,5 / AWG22 2   384 1000
    70260021 dark blue RAL 5010 - with UL(MTW) single cores 0,5 / AWG22 5   960 2250

    Design

    • The front plugs are completely contacted with single cores of 0,75 mm² or AWG 22 in dark blue (RAL 5010), cores numbered in white according to the allocation in the plug, spacing approx. 20 mm, opposite end cleanly cut
    • On request, also available with conductor end sleeves or other contacts on the second end

    Approvals (Norm references)

    • For more information on multi-standard single cores, see UL(MTW)-CSA-HAR Style 1015

    Note

    • Previously, cutting, marking, stripping, crimping and screwing were all separate operations but the pre-wired front plug for *SIMATIC® S7 provides you with the following advantages:
    • Customised construction simply by removing the cores
    • Quick wiring
    • Error minimisation:Confusions of single cores are ruled out

    Product features

    • Original Siemens-connectors are used exclusively
    • Outer diameter is smaller than a H05V-K single core (0,5 mm2)
