    LAPP  OLFLEX® CONTROL TM  Flexible & Oil Resistant Tray and Machine Cable
    看原圖
    5072727

    商品編號: LAPP-OLFLEX-CONTROL-TM, google, yahoo, msn

    LAPP OLFLEX® CONTROL TM Flexible & Oil Resistant Tray and Machine Cable
    UL MTW 工業級 PVC 電力及控制電纜


    ÖLFLEX® CONTROL TM

     Broad application range due to multiple approvals; Cost saving, easy installation due to renouncement of closed raceways (suitable for open wiring)

    Application range

    • Industrial machinery; plant engineering
    • Machine tools UL MTW (Machine Tool Wiring) conforming
    • TC-ER (Tray Cable Exposed Run) approval for open wiring between cable tray and industrial machines/plants acc. to NEC 336.10(7)
    • Wind Turbines: USA Wind Turbine Tray Cable (WTTC)
    • Class 1, Div. 2 per NEC "National Electrical Code" Art. 336, 392, 501

    Technical Data

    Core identification code
    Black with white numbers
    Approvals
    UL MTW, TC-ER, WTTC 1000V, BUS DROP  c(UL) Type TC and CIC FT4 CSA AWM I/II A/B FT4
    Specific insulation resistance
    > 20 GOhm x cm
    Conductor stranding
    Finely stranded bare copper wires
    Minimum bending radius
    6 x cable diameter
    Rated voltage
    UL/CSA: 600 V (TC, MTW, CIC), WTTC 1000V
    UL/CSA: 1000 V (AWM) HAR U0 /U: 300/500 V
    Test voltage
    2000 V
    Protective conductor
    G = with protective conductor GN/YE
    X = without protective conductor
    Range of temperature
    Fixed installation: -40°C up to +90°C

    Design

    • Fine strands of bare copper wires
    • Insulation: PVC with nylon jacket (PA skin)
    • Special blended PVC outer sheath, grey (RAL 7001)

    Approvals (Norm references)

    • Multi standard cables have conductor strands with nominal sizes in mm² or AWG/kcmil nominal sizes. The master size is mentioned in the table below, the equivalent size of the other system can be found in the catalogue appendix table T16. For this related secondary size the conductor cross-section mostly works out greater than the specified nominal value.

    Product features

    • Flame retardant according to CSA FT4 UL Vertical-Tray Flame Test
    • Oil resistant according to UL OIL RES I
    • Water resistant UL Wet Approval 75 °C

    Part number Number of cores and mm² per conductor Outer diameter in mm Copper index kg/km Weight kg/km

    ÖLFLEX® CONTROL TM
    281803 3 G 1,0 7,4 28.8 82
    281804 4 G 1,0 8 38.4 95
    281805 5 G 1,0 8,6 48 112
    281807 7 G 1,0 9,3 67 144
    281812 12 G 1,0 12 115 247
    281818 18 G 1,0 14,9 173 365
    281825 25 G 1,0 16,7 240 464

    281602 2 X 1,5 7,3 28.8 74
    281603 3 G 1,5 8,1 43 100
    281604 4 G 1,5 8,8 58 119
    281605 5 G 1,5 9,5 72 141
    281607 7 G 1,5 10,3 101 183
    281609 9 G 1,5 11,9 129.6 247
    281612 12 G 1,5 14,2 173 328
    281618 18 G 1,5 16,2 259 403
    281625 25 G 1,5 18,6 360 464

    281403 3 G 2,5 9,1 72 125
    281404 4 G 2,5 9,8 96 155
    281405 5 G 2,5 10,7 120 185
    281407 7 G 2,5 11,6 168 244

    281203 3 G 4 10,6 115 165
    281204 4 G 4 11,5 154 220
    281205 5 G 4 12,6 192 269
    281207 7 G 4 14,6 269 482

    281004 4 G 6 14,5 231 382
    281005 5 G 6 15,8 288 457

    280804 4 G 10 19,5 384 615
    280805 5 G 10 22,6 480 771

    280604 4 G 16 22,8 615 864

    Footnote:
    All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
    Copper price basis: EUR 150 / 100 kg; For utilization and definition of 'Metal price basis' and 'Metal index' see Appendix T17
    Please find our standard lengths at:
    Packaging size: Coil ≤ 30 kg and ≤ 250 m, otherwise drum
    Please specify the desired make-up (e.g. 1 x 610 m drum or 8 x 76 m coils)
    Photographs are not to scale and do not represent detailed images of the respective products.

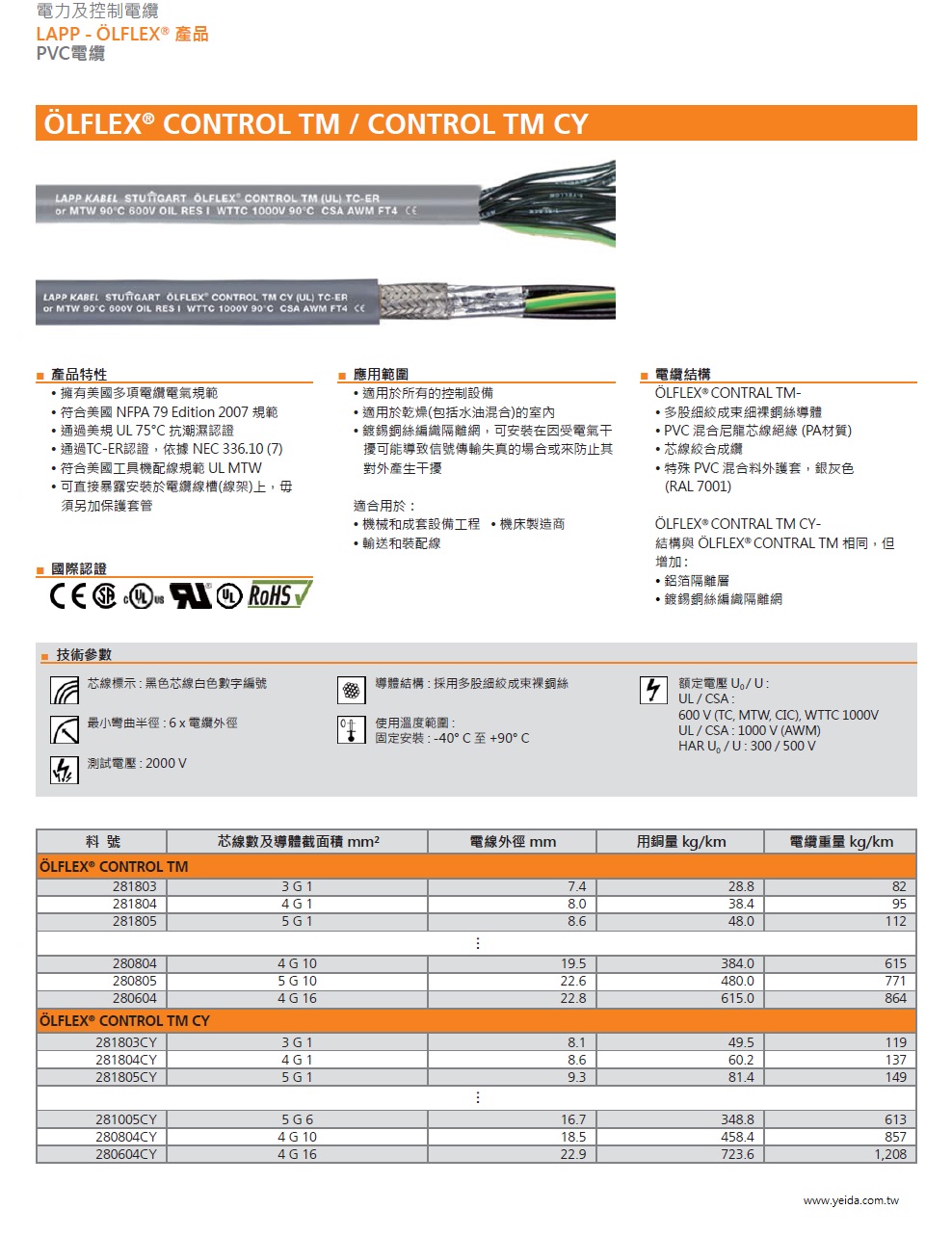

    LAPP OLFLEX® CONTROL TM / CONTROL TM CY UL MTW 工業級 PVC 電力及控制電纜

    ■ 產品特性

    • 擁有美國多項電纜電氣規範

    • 符合美國 NFPA 79 Edition 2007 規範

    • 通過美規 UL 75°C 抗潮濕認證

    • 通過TC-ER認證,依據 NEC 336.10 (7) • 符合美國工具機配線規範 UL MTW

    • 可直接暴露安裝於電纜線槽(線架)上,毋須另加保護套管

    ■ 國際認證

    CE, UL, CSA, ROHS

    ■ 應用範圍

    • 適用於所有的控制設備

    • 適用於乾燥(包括水油混合)的室內

    • 鍍錫銅絲編織隔離網,可安裝在因受電氣干擾可能導致信號傳輸失真的場合或來防止其對外產生干擾

    適合用於:

    • 機械和成套設備工程

    • 機床製造商

    • 輸送和裝配線

    ■ 電纜結構 ÖLFLEX® CONTRAL TM-

    • 多股細絞成束細裸銅絲導體

    • PVC 混合尼龍芯線絕緣 (PA材質)

    • 芯線絞合成纜

    • 特殊 PVC 混合料外護套,銀灰色 (RAL 7001) ÖLFLEX® CONTRAL TM CY- 結構與 ÖLFLEX® CONTRAL TM 相同,但增加 :

    鋁箔隔離層

    • 鍍錫銅絲編織隔離網
