LAPP OLFLEX® CONTROL-TM CY 工業級(鍍錫銅網隔離)連接線Broad application range due to multiple approvals
ÖLFLEX® CONTROL TM CY EMC compliant" alt="" jquery1299894986794="183">
Broad application range due to multiple approvals; Cost saving, easy installation due to renouncement of closed raceways (suitable for open wiring)
Application range
- Industrial machinery; plant engineering
- Machine tools UL MTW (Machine Tool Wiring) conforming
- TC-ER (Tray Cable Exposed Run) approval for open wiring between cable tray and industrial machines/plants acc. to NEC 336.10(7)
- Wind Turbines: USA Wind Turbine Tray Cable (WTTC)
- Class 1, Div. 2 per NEC "National Electrical Code" Art. 336, 392, 501
| |
| 281803CY |
3 G 1,0 |
8,1 |
49.5 |
119 |
|
| 281804CY |
4 G 1,0 |
8,6 |
60.2 |
137 |
|
| 281805CY |
5 G 1,0 |
9,3 |
81.4 |
149 |
|
| 281807CY |
7 G 1,0 |
10 |
101.1 |
193 |
|
| 281812CY |
12 G 1,0 |
12,8 |
161.4 |
330 |
|
| 281818CY |
18 G 1,0 |
15,5 |
228.2 |
438 |
|
| 281825CY |
25 G 1,0 |
17,5 |
326.4 |
574 |
|
| |
| 281602CY |
2 X 1,5 |
8,3 |
49.7 |
115 |
|
| 281603CY |
3 G 1,5 |
8,8 |
65 |
144 |
|
| 281604CY |
4 G 1,5 |
9,4 |
81.9 |
173 |
|
| 281605CY |
5 G 1,5 |
10,2 |
99.1 |
189 |
|
| 281607CY |
7 G 1,5 |
11,1 |
140.4 |
246 |
|
| 281612CY |
12 G 1,5 |
15 |
225.2 |
426 |
|
| 281618CY |
18 G 1,5 |
17,2 |
321.7 |
552 |
|
| 281625CY |
25 G 1,5 |
19,4 |
453.6 |
750 |
|
| |
| 281403CY |
3 G 2,5 |
9,7 |
105.7 |
180 |
|
| 281404CY |
4 G 2,5 |
10,4 |
135.6 |
223 |
|
| 281405CY |
5 G 2,5 |
11,5 |
160.3 |
268 |
|
| 281407CY |
7 G 2,5 |
12,4 |
213 |
327 |
|
| |
| 281204CY |
4 G 4 |
12,3 |
198.5 |
315 |
|
| 281205CY |
5 G 4 |
14,2 |
242.7 |
388 |
|
| 281207CY |
7 G 4 |
15,3 |
323.4 |
499 |
|
| |
| 281004CY |
4 G 6 |
15,3 |
284.6 |
552 |
|
| 281005CY |
5 G 6 |
16,7 |
348.8 |
613 |
|
| |
| 280804CY |
4 G 10 |
18,5 |
458.4 |
857 |
|
| |
| 280604CY |
4 G 16 |
22,9 |
723.6 |
1208 |
|
Footnote:
All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
Copper price basis: EUR 150 / 100 kg; For utilization and definition of 'Metal price basis' and 'Metal index' see Appendix T17
Please find our standard lengths at:
Packaging size: Coil ≤ 30 kg and ≤ 250 m, otherwise drum
Please specify the desired make-up (e.g. 1 x 610 m drum or 8 x 76 m coils)
Photographs are not to scale and do not represent detailed images of the respective products. |

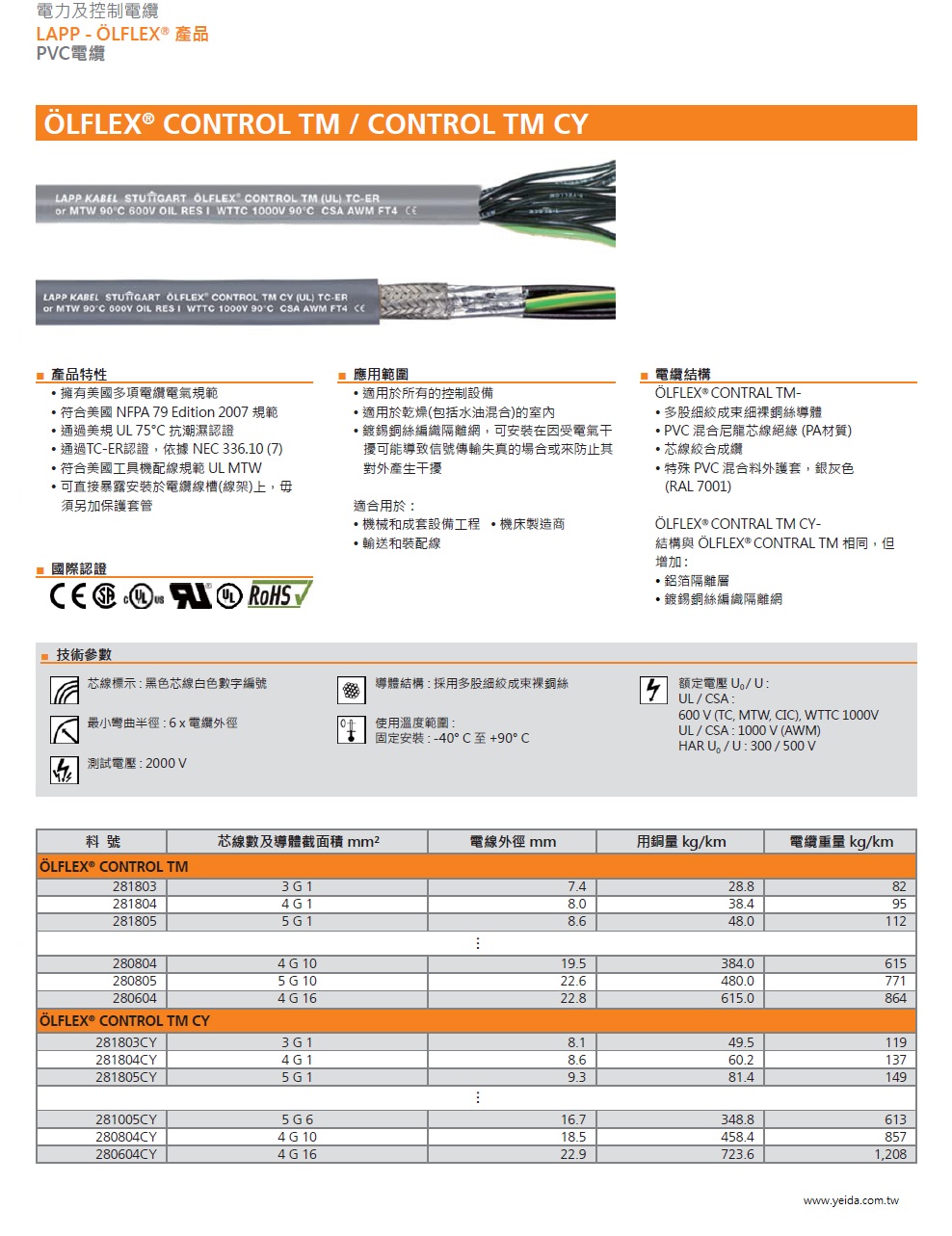

LAPP OLFLEX® CONTROL TM / CONTROL TM CY UL MTW 工業級 PVC 電力及控制電纜
■ 產品特性
• 擁有美國多項電纜電氣規範
• 符合美國 NFPA 79 Edition 2007 規範
• 通過美規 UL 75°C 抗潮濕認證
• 通過TC-ER認證，依據 NEC 336.10 (7) • 符合美國工具機配線規範 UL MTW
• 可直接暴露安裝於電纜線槽(線架)上，毋須另加保護套管
■ 國際認證
CE, UL, CSA, ROHS
■ 應用範圍
• 適用於所有的控制設備
• 適用於乾燥(包括水油混合)的室內
• 鍍錫銅絲編織隔離網，可安裝在因受電氣干擾可能導致信號傳輸失真的場合或來防止其對外產生干擾
適合用於：
• 機械和成套設備工程
• 機床製造商
• 輸送和裝配線
■ 電纜結構 ÖLFLEX® CONTRAL TM-
• 多股細絞成束細裸銅絲導體
• PVC 混合尼龍芯線絕緣 (PA材質)
• 芯線絞合成纜
• 特殊 PVC 混合料外護套，銀灰色 (RAL 7001) ÖLFLEX® CONTRAL TM CY- 結構與 ÖLFLEX® CONTRAL TM 相同，但增加 :
鋁箔隔離層
• 鍍錫銅絲編織隔離網
|
