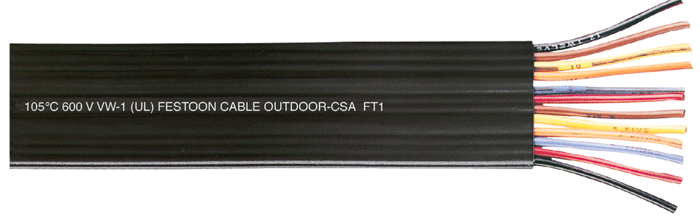

    LAPP-OLFLEX® FLAT UL/CSA Approved Flat Festoon Cable (PVC)
    看原圖
    		5074969




    商品編號: LAPP-OLFLEX-FLAT

    LAPP-OLFLEX® FLAT UL/CSA Approved Flat Festoon Cable (PVC)

    OLFLEX® FLAT is a UL/CSA approved PVC festoon power and control cable. The specially formulated PVC compound is UV resistant and allows continuous festooning over a wide temperature range for both indoor and outdoor applications.

    Recommended Applications:
    For use on Overhead crane, Material handling systems and as Supply line for moving machine parts.




    ★★★★商品說明★★★★

    Application Advantage:
    • Flat construction allows cables to be stacked for applications where space is at a premium
    • Meets North American approvals

    Stranded bare copper conductors; PVC insulation; black or yellow PVC jacket.
     Flat Festoon Cable
    　
    Temperature Range: -55°C to +105°C
    Rated Voltage: 600V
    Color Code:
    　
          Chart 12
          Colors plus numbers
    Approval: UL: Listed
        CSA: Certified


    ★★★★商品規格描述★★★★

    Part Number Color Number of
    Conductors         		Nominal Outer
    Diameter         		Approx Weight
    inches mm lbs/mft kg/km
    16 AWG (65/34) 1.5 mm2
    811261 Black 8 .200 x 1.110 5.1 x 28.2 180 268
    811262 Black 12 .200 x 1.605 5.1 x 40.8 270 402
    811234 Yellow 8 .200 x 1.110 5.1 x 28.2 180 268
    811232 Yellow 12 .200 x 1.605 5.1 x 40.8 270 402
    14 AWG (41/30) 2.5 mm2
    811259 Black 4 .210 x .625 5.3 x 15.9 120 179
    811263 Black 8 .210 x 1.175 5.3 x 29.9 220 328
    811267 Black 12 .210 x 1.700 5.3 x 43.2 340 507
    811269 Yellow 4 .210 x .625 5.3 x 15.9 120 179
    811233 Yellow 8 .210 x 1.175 5.3 x 29.9 220 328
    811272 Yellow 12 .210 x 1.700 5.3 x 43.2 340 507
    12 AWG (65/30) 4 mm2
    811264 Black 4 .230 x .711 5.8 x 18.0 160 238
    811273 Black 8 .230 x 1.340 5.8 x 34.0 320 477
    811235 Yellow 4 .230 x .711 5.8 x 18.0 160 238
    811236 Yellow 8 .230 x 1.340 5.8 x 34.0 320 477
    10 AWG (105/30) 6 mm2
    811266 Black 4 .270 x .880 6.9 x 22.4 240 358
    811237 Yellow 4 .270 x .880 6.9 x 22.4 240 358
    8 AWG (168/30) 10 mm2
    811270 Black 4 .365 x 1.190 9.3 x 30.2 420 626
    811238 Yellow 4 .365 x 1.190 9.3 x 30.2 420 626
    6 AWG (266/30) 16 mm2
    811271 Black 4 .430 x 1.450 10.9 x 36.8 600 894
    811239 Yellow 4 .430 x 1.450 10.9 x 36.8 600 894
    4 AWG (420/30) 25 mm2
    811279 Black 4 .490 x 1.690 12.5 x 42.9 750 1118
    811280 Yellow 4 .490 x 1.690 12.5 x 42.9 750 1118
    2 AWG (665/30) 35 mm2
    811274 Black 4 .590 x 1.955 15.0 x 49.7 1270 1892
    811240 Yellow 4 .590 x 1.955 15.0 x 49.7 1270 1892
    Shielded: 16 AWG (65/34) 1.5 mm2
    811358 Black 4 .240 x .760 6.1 x 19.3 160 239
    811357 Black 8 .240 x 1.445 6.1 x 36.7 220 328
    811356 Black 12 .240 x 2.110 6.1 x 53.6 460 685
