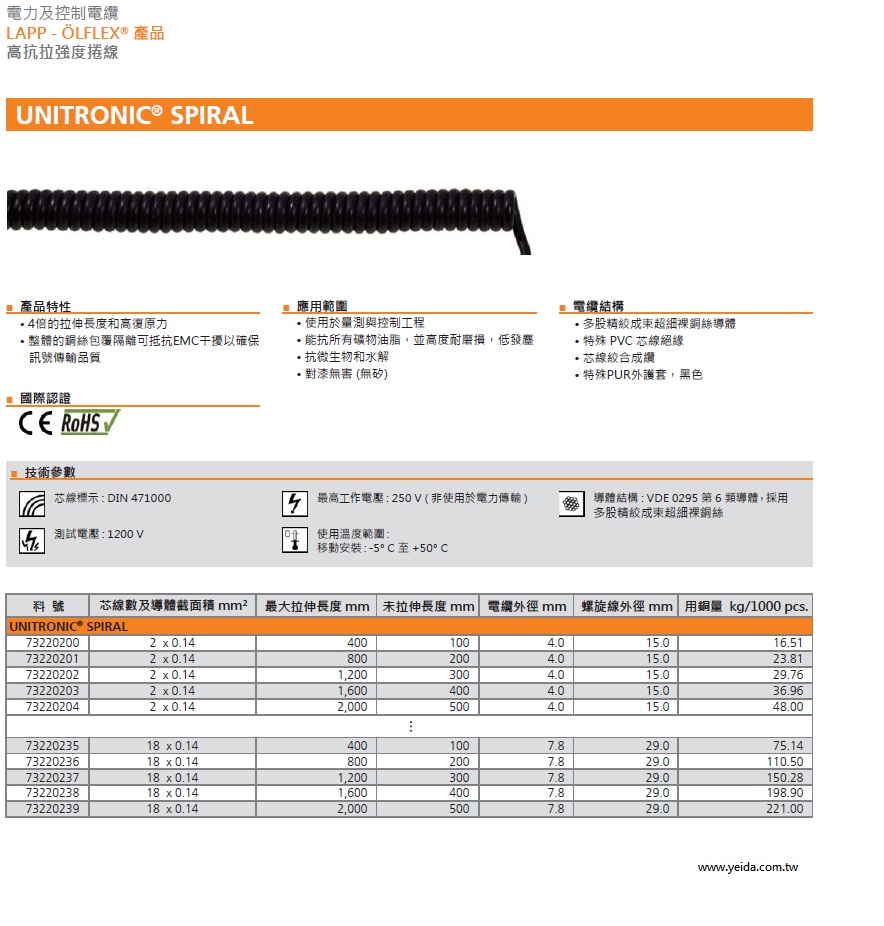

    LAPP UNITRONIC SPIRAL Retractable Shielded Data Cable with Polyurethane Jacket (可伸縮式信號傳輸線)
    看原圖
    		5075187

    商品編號: LAPP-UNITRONIC-SPIRAL, google, yahoo, alibaba, abb

    LAPP-UNITRONIC-SPIRAL VDE Retractable Shielded Data Cable with Polyurethane Jacket (可伸縮式信號傳輸線)


    UNITRONIC® SPIRAL is a shielded, multi-conductor signal and data cable designed to extend 4 times the retracted length.

    Recommended Applications:
    For use with computers, Data transmission, Office equipment, Process control and Instrumentation applications.

    Application Advantage:
    • Overall screening prevents interference and guarantees accurate pulse transmission
    • Highly flexible for ease of use
    • For use in confined areas where installation is tight.

    Finely stranded bare copper conductors; PVC insulation; conductors cabled together with non-wicking fillers; dry lubricant; overall copper spiral shield, specially formulated black polyurethane jacket.

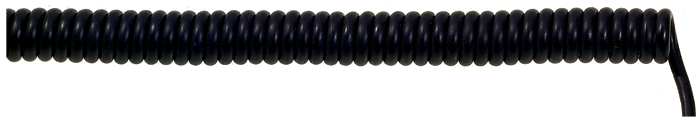

     Spirex Data Cable
    • Length of tails 8 in./200 mm and 24 in./600mm
    • Tail type- Tangent
    　
    Temperature Range:   -5°C to +50°C
    Nominal Voltage:   350V
    Test Voltage:   1200V
    Conductor Stranding:   Super Fine wire per VDE 0295, Class 6
    Color Code:   DIN 47100, Chart 8
    　
    Approvals:   Based on VDE specifications

    Part Number Number of
    Conductors         		Nominal Cable
    Outer Diameter         		Spiral Length
    Extended         		Spiral Length
    Retracted         		Nominal Spiral
    Outer Diameter
    inches mm inches mm inches mm inches mm
    26 AWG (18/38) 0.14 mm2
    73220200 2 0.157 4.0 16 400 4 100 0.591 15
    73220201 2 0.157 4.0 31 800 8 200 0.591 15
    73220202 2 0.157 4.0 47 1200 12 300 0.591 15
    73220203 2 0.157 4.0 63 1600 16 400 0.591 15
    73220204 2 0.157 4.0 79 2000 20 500 0.591 15
    73220205 3 0.165 4.2 16 400 4 100 0.709 18
    73220206 3 0.165 4.2 31 800 8 200 0.709 18
    73220207 3 0.165 4.2 47 1200 12 300 0.709 18
    73220208 3 0.165 4.2 63 1600 16 400 0.709 18
    73220209 3 0.165 4.2 79 2000 20 500 0.709 18
    73220210 4 0.173 4.4 16 400 4 100 0.748 19
    73220211 4 0.173 4.4 31 800 8 200 0.748 19
    73220212 4 0.173 4.4 47 1200 12 300 0.748 19
    73220213 4 0.173 4.4 63 1600 16 400 0.748 19
    73220214 4 0.173 4.4 79 2000 20 500 0.748 19
    73220215 5 0.201 5.1 16 400 4 100 0.787 20
    73220216 5 0.201 5.1 31 800 8 200 0.787 20
    73220217 5 0.201 5.1 47 1200 12 300 0.787 20
    73220218 5 0.201 5.1 63 1600 16 400 0.787 20
    73220219 5 0.201 5.1 79 2000 20 500 0.787 20
    73220220 6 0.213 5.4 16 400 4 100 0.827 21
    73220221 6 0.213 5.4 31 800 8 200 0.827 21
    73220222 6 0.213 5.4 47 1200 12 300 0.827 21
    73220223 6 0.213 5.4 63 1600 16 400 0.827 21
    73220224 6 0.213 5.4 79 2000 20 500 0.827 21
    73220225 7 0.213 5.4 16 400 4 100 0.827 21
    73220226 7 0.213 5.4 31 800 8 200 0.827 21
    73220227 7 0.213 5.4 47 1200 12 300 0.827 21
    73220228 7 0.213 5.4 63 1600 16 400 0.827 21
    73220229 7 0.213 5.4 79 2000 20 500 0.827 21
    73220230 12 0.276 7.0 16 400 4 100 1.063 27
    73220231 12 0.276 7.0 31 800 8 200 1.063 27
    73220232 12 0.276 7.0 47 1200 12 300 1.063 27
    73220233 12 0.276 7.0 63 1600 16 400 1.063 27
    73220234 12 0.276 7.0 79 2000 20 500 1.063 27
    73220235 18 0.307 7.8 16 400 4 100 1.142 27
    73220236 18 0.307 7.8 31 800 8 200 1.142 27
    73220237 18 0.307 7.8 47 1200 12 300 1.142 27
    73220238 18 0.307 7.8 63 1600 16 400 1.142 27
    73220239 18 0.307 7.8 79 2000 20 500 1.142 27
