    LAPP-SVF & SVF-K Series Cable Connectors Compact Strain Relief Connectors for Flat and Festoon Cable
    看原圖
    		5075268




    商品編號: LAPP-SVF-Connectors

    LAPP-SVF & SVF-K Series Cable Connectors Compact Strain Relief Connectors for Flat and Festoon Cable

    SVF Brass Connector
    The SVF is a compact strain relief connector for flat cable made of nickel-plated brass. The special Neoprene bushing provides a flexible seal over a wide range of cable widths.
    　

    SVF-K Plastic Connector
    The SVF-K is a compact strain relief connector for flat cable made of polystyrene. The special neoprene bushing provides a flexible seal over a wide range of cable widths




    ★★★★商品說明★★★★

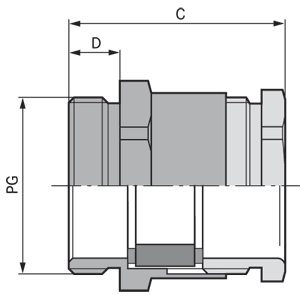

    SVF Brass Connector
    The SVF is a compact strain relief connector for flat cable made of nickel-plated brass. The special Neoprene bushing provides a flexible seal over a wide range of cable widths.
    　
      Flat Cable Glands
    		Material: Body of nickel-plated brass with neoprene bushing
    		Seal: IP 54
    		Temperature range: -20ºC to 100ºC

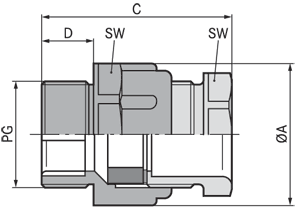

    SVF-K Plastic Connector
    The SVF-K is a compact strain relief connector for flat cable made of polystyrene. The special neoprene bushing provides a flexible seal over a wide range of cable widths.
    　
      Plastic Flat Cable Glands
    Material: Body of polystyrene with neoprene bushing
    Seal: IP 54
    Temperature range: -20ºC to 60ºC


    ★★★★商品規格描述★★★★

    Part Number Thread Type & Size Flat Cable Width Cable Thickness
    inches         		C
    Overall Length Inches         		D
    Thread Length
    inches         		Wrenching Flats Standard Pack Size
    inches mm Top Mounting
    SVF Brass
    52005480 PG 16 0 - .591 0 - 15 0 - .197 1.08 .26 .866 .945 25
    52005490 PG 21 .354 - .827 9 - 21 .118 - .315 1.18 .28 1.102 1.181 25
    52005500 PG 29 .551 - 1.181 14 - 30 .157 - .453 1.24 .31 1.457 1.575 10
    52005510 PG 36 .945 - 1.575 24 - 40 .157 - .453 1.42 .35 1.850 1.969 10
    52005520 PG 42 1.142 - 1.772 29 - 45 .197 - .472 1.57 .39 2.126 2.244 5
    52005530 PG 48 1.139 - 1.969 34 - 50 .197 - .472 1.63 .39 2.362 2.598 5
    SVF-K Plastic
    52005470 PG 16 0 - .591 0 - 15 0 - .197 1.56 .344 .906 1.063 25
    52005680 PG 21 .354 - .827 9 - 21 .118 - .315 1.69 .433 1.181 1.260 25
    52005690 PG 29 .551 - 1.181 14 - 30 .157 - .453 1.77 .433 1.614 1.634 25
    52005700 PG 36 .945 - 1.575 24 - 40 .157 - .453 2.01 .512 1.969 2.087 10
    52005710 PG 42 1.142 - 1.772 29 - 45 .197 - .472 2.13 .512 2.165 2.362 5
    52005720 PG 48 1.139 - 1.969 34 - 50 .197 - .472 2.17 .551 2.362 2.559 5
