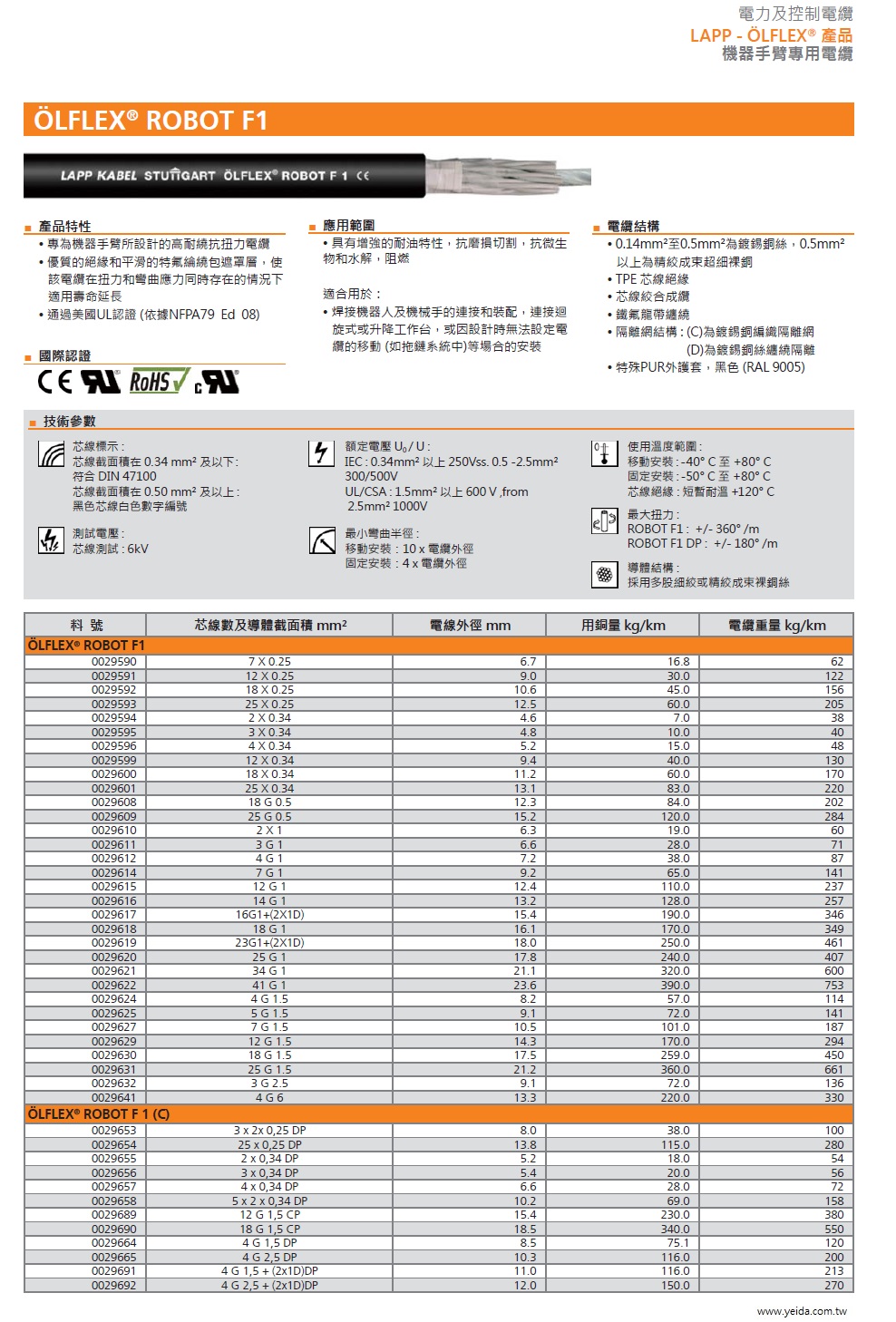

LAPP-OLFLEX® ROBOT F1 Robotic Cable for Continuous Twisting Motion 超柔移動式防水防油汙耐磨損扭曲機器手臂專用電纜

5069292

商品編號: LAPP-ROBOTF1, google, yahoo, msn, alphabet, belden,

LAPP-OLFLEX® ROBOT F1 Robotic Cable for Continuous Twisting Motion 超柔移動式防水防油汙耐磨損扭曲機器手臂專用電纜

OLFLEX® ROBOT F1 is designed to transmit control and monitoring signals as well as power supply in installations where combined twisting and bending stresses occur. The special polyurethane jacket compound is resistant against oils, microbes, hydrolysis and abrasion. OLFLEX® ROBOT F1 is also available in a shielded version.

Recommended Applications:
For connecting handling tools of assembly and polyarticulated robots, also to connect rotations on tilting tables

Application Advantage:
• UL AWM approval for USA and Canada
• The smooth TPE core insulation and low friction tape improves service life in applications where combined twisting and
bending occur
• The specially formulated PUR provides protection in the most harsh industrial plant environments preventing unplanned downtime and associated costs

Highly flexible tinned copper conductors, special polymer insulation cores (or core pairs) twisted in bundles or layers, low friction tape wrapping, shielded version- braid or spinning of tinned copper, and of polyurethane elastomer jacket.


Minimum Bend Radius:
for continuous flexing:		10 x cable diameter
Max. torsion (twist):
without shield:		±360°/Meter
with shield:		±180°/Meter
Temperature Range:		-40°C to +80°C
Nominal Voltage:
UL/CSA:
up to 1.5 mm2:		600V
2.5 mm2 and larger		1000V
IEC:
up to 0.34 mm2:		250V
0.5 - 2.5 mm2:		300/500V
Conductor stranding:		Flexible Fine Wire
Color Code :
up to 0.34 mm2:		DIN 47100, Chart 8
0.5 mm2 and larger:		White with black numbers plus green/yellow ground
Approvals:	UL:	UL AWM Style 20940 VW1
	CSA:	cUL AWM I/II A/B FT1

Part Number	Number of Conductors includes ground	Nominal Outer Diameter		Approx Weight
Part Number	Number of Conductors includes ground	inches	mm	lbs/mft	kg/km
24 AWG (0.25 mm2)
0029590	7	0.264	6.7	42	62
0029591	12	0.354	9.0	52	122
0029592	18	0.417	10.6	105	156
0029593	25	0.492	12.5	138	205
22 AWG (0.34 mm2)
0029594	2	0.181	4.6	26	38
0029595	3	0.189	4.8	27	40
0029596	4	0.205	5.2	32	48
0029599	12	0.370	9.4	87	130
0029600	18	0.441	11.2	114	170
0029601	25	0.516	13.1	148	220
20 AWG (0.50 mm2)
0029608	18	0.484	12.3	136	202
0029609	25	0.599	15.2	191	284
18 AWG (1.00 mm2)
0029610	2	0.248	6.3	40	60
0029611	3	0.260	6.6	48	71
0029612	4	0.283	7.2	58	87
0029614	7	0.362	9.2	95	141
0029615	12	0.488	12.4	159	237
0029616	14	0.520	13.2	173	257
0029617	16	0.606	15.4	233	346
0029618	18	0.634	16.1	235	348
0029619	23	0.709	18.0	310	461
0029620	25	0.591	15.0	273	407
0029621	34	0.831	21.1	403	600
0029622	41	0.929	23.6	506	753
0029624	4	0.323	8.2	77	114
16 AWG (1.50 mm2)
0029625	5	0.358	9.1	95	141
0029627	7	0.413	10.5	126	187
0029629	12	0.563	14.3	198	294
0029630	18	0.689	17.5	302	450
0029631	25	0.835	21.2	444	661
14 AWG (2.50 mm2)
0029632	3	0.358	9.1	91	136
10 AWG (6 mm2)
0029641	4	0.524	13.3	222	330
Shielded: 24 AWG (0.25mm2)
0029653	3 pr	0.315	8.0	67	100
Shielded: 24 AWG (0.25 mm2)
0029654	25	0.543	13.8	188	280
Shielded: 22 AWG (0.34 mm2)
0029655	2	0.205	5.2	36	54
0029656	3	0.213	5.4	38	56
0029657	4	0.260	6.6	48	72
0029658	5 prs	0.402	10.2	106	158
Shielded: 16 AWG (1.5 mm2)
0029689	12	0.606	15.4	255	380
0029690	18	0.728	18.5	370	550
