YEIDA 10GS LAN FTP CAT-6A 4Pair/ 23AWG, CAT-6A鋁箔隔離網路線

5129282

YEIDA 10GS LAN FTP CAT-6A 4Pair/ 23AWG, CAT-6A鋁箔隔離網路線
。10GS-F SUPPORTS IEEE 802.3an 10G BASE-T STANDARD, AND TIA/EIA 568-B.2-10 DRAFT.9
。ALL MATERIALS COMPLY WITH ROHS STANDARD
。TEST RANGE FROM 1 TO 650 MHZ
。SMALLER OD COMPARES TO ELITE

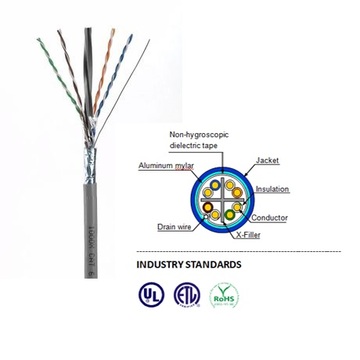

= Jacket：Low-smoke, flame-retardant PVC

= Insulation：PE/FEP

= Spline：PE/FEP

= Conductor：23 AWG Solid bare copper

= Cable assembly：4 pairs cabled together with a spline core separator

PRODUCT NO.	DIAMETER	WEIGHT	FLAME RATING	Packaging
PRODUCT NO.	(mm/inch)	(lb/kg)	FLAME RATING	Put-Up
TSR2304SXX	7.6 / 0.30	40.3 / 18.3	CMR	1,000ft Reel
TSP2304SXX	7.6 / 0.30	45.6 / 20.7	CMP	1,000ft Reel

= FEATURES: IMPEDENCE 100 ± 15 W (10-550MHz)

= DC RESISTANCE, UNBALANCE OF A PAIR: 3% MAX

= CAPACITANCE UNBALANCE(PAIR TO GROUND): 330ΡF/100M MAX

= PROPAGATION DELAY SKEW: 25 ns/100m

REFERENCE ELECTRICAL CHARACTERISTICS

FREQ	INS LOSS	RETURN	NEXT	PS NEXT	ACRF	PS ACRF	PROP	ALIEN CROSSTALK
FREQ	INS LOSS	LOSS	NEXT	PS NEXT	ACRF	PS ACRF	DELAY	PS ANEXT	PS AACRF
(MHz)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)	(dB/100m)
	max	min	Min	min	min	min	max	min	min
1	2	20	74.3	72.3	71.8	68.8	570	71	71
4	3.7	24.2	65.3	63.3	59.8	56.8	552	71	70.2
8	5.2	26.3	59.8	58.8	53.7	50.7	546.7	71	64.1
10	5.9	27	59.3	57.3	51.8	48.8	545.4	71	62.2
16	7.4	27	56.2	54.2	47.7	44.7	543	71	58.1
20	8.3	27	54.8	52.8	45.8	42.8	542	71	56.2
25	9.3	26.3	53.3	51.3	43.8	40.8	541.2	71	54.2
31.25	10.4	25.6	51.9	49.9	41.9	38.9	540.4	71	52.3
62.5	14.9	23.5	47.4	45.4	35.9	32.9	538.6	69.6	46.3
100	19	22.1	44.3	42.3	31.8	28.8	537.6	66.5	42.2
155	24	20.8	41.4	39.4	28	25	536.9	63.6	38.4
200	27.5	20	39.8	37.8	25.8	22.8	536.5	62	36.2
250	31	19.3	38.3	36.3	23.8	20.8	536.3	60.5	34.2
300	34.2	18.8	37.1	35.3	22.3	19.3	536.1	59.3	32.7
350	37.2	18.3	36.1	34.1	20.9	17.9	535.9	58.3	31.3
400	40	17.9	35.3	33.3	19.8	16.8	535.8	57.5	30.2
500	45.3	17.5	33.8	31.8	17.8	14.8	535.6	56	28.2
550	47.7	17.2	33.2	31.2	-	-	-	-	-
600	50.1	16.9	32.6	30.6	-	-	-	-	-
650	52.4	16.7	32.1	30.1	-	-	-	-	-

The TIA is working to complete a new specification that will define enhanced performancestandards for unshielded twisted pair cable systems. Draft specification ANSI/TIA/EIA-568-B.2-10 specifies cable systems, called "Augmented Category 6" or more frequently as "Category 6a", that operate at frequencies up to 500 MHz and will provide up to 10 Gbit/s bandwidth. The new specification has limits on alien crosstalk in cabling systems. Augmented Category 6 specifies cable operating at minimum cable operating at minimum frequency of 500 MHz, for both shielded and unshielded. It can support future 10 Gbit/s applications up to the maximum distance of 100 meters on a 4-connector channel
