.jpg "UL21143, Braid Shield , FRPE/HF, 300V, 80℃, RS232 Computer Cable 鋁箔銅網雙隔離, 廣播聲音, 音響, 儀表電腦控制電線")
W-UL21143SF
W-UL21143BFUL21143, Braid Shield , FRPE/HF, 300V, 80℃, RS232 Computer Cable 鋁箔銅網雙隔離, 廣播聲音, 音響, 儀表電腦控制電線keyword: Yeida, belden, alpha, hitachi, 宜大電線, google, amazon, wikipedia, 維基百科, 工業自動化, 機器人, AI人工智慧, 電競遊戲運動產業,無人駕駛電動車, FAAMG, UL21143, Brald Shield, FRPE/HF, 300V, 80℃, RS232 Computer Cable 鋁箔銅網雙隔離儀表電腦控制電線

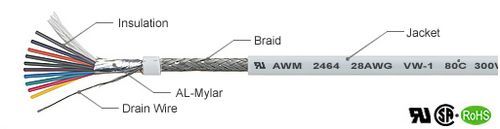

= Conductor: Stranded Tinned Copper
= Insulation: FRPE/HF material
= Shield:Aluminum/Mylar foil with stranded,tinned copper drain wire plus overall braid of tinned copper
= Jacket: FRPE/HF material
= Rated Temperature: 80℃
= Voltage Rating: 300 Volt
= LSOH Wire & Cable halogen(CI,F,Br,I,At)<50ppm
= Passes UL VW-1SC vertical flame test
= Computer cables for EIA RS-232 and CAD/CAM application
UL Style
&
CSA TypeConductor
No.of Cores
Insulation Thickness
Braid Shield
Jacket Thickness
Overall Diameter
Nominal Capa.
Standard Put-Up
A
B
Ft/Coil
M/Coil
AWG
No./mm
mm
mm
mm
mm
pF/ft
pF/ft
UL21143
CSA I/II A
(AWM)28
7/0.127
3
0.25
16/5/0.120
0.8
4.20±0.15
28
51
1000
305
4
16/5/0.120
0.8
4.60±0.15
28
51
1000
305
5
16/6/0.120
0.8
4.70±0.15
28
51
1000
305
6
16/6/0.120
0.8
5.00±0.15
26
47
1000
305
7
16/6/0.120
0.8
5.20±0.15
26
47
1000
305
8
16/6/0.120
0.8
5.40±0.15
26
47
1000
305
9
16/6/0.120
0.8
5.50±0.15
26
47
1000
305
10
16/8/0.120
0.8
5.80±0.15
26
47
1000
305
15
16/8/0.120
0.85
6.40±0.15
26
47
1000
305
25
24/8/0.120
1.00
8.10±0.20
26
47
500
152
37
24/8/0.120
1.00
8.90±0.25
26
47
500
152
50
24/8/0.120
1.00
10.10±0.30
26
47
500
152
UL21143
CSA I/II A
(AWM)26
7/0.160
3
0.25
16/6/0.120
0.80
4.50±0.15
32
52
1000
305
4
16/6/0.120
0.80
4.70±0.15
32
52
1000
305
5
16/6/0.120
0.80
5.00±0.15
32
52
1000
305
6
16/7/0.120
0.80
5.30±0.15
28
51
1000
305
7
16/7/0.120
0.80
5.40±0.15
28
51
1000
305
8
16/7/0.120
0.80
5.60±0.20
28
51
1000
305
9
16/8/0.120
0.80
6.00±0.15
28
51
1000
305
10
16/8/0.120
0.80
6.30±0.20
28
51
1000
305
15
16/8/0.120
0.85
7.00±0.20
28
51
1000
305
25
24/8/0.120
1.00
8.60±0.25
28
51
500
152
37
24/7/0.120
1.00
9.70±0.25
28
51
500
152
50
24/8/0.120
1.00
11.00±0.30
28
51
500
152
UL21143
CSA I/II A
(AWM)24
7/0.200
3
0.25
16/5/0.120
0.80
4.10±0.15
35
65
1000
305
4
16/5/0.120
0.80
4.60±0.15
35
65
1000
305
5
16/6/0.120
0.80
4.90±0.15
35
65
1000
305
6
16/6/0.120
0.80
5.10±0.15
30
55
1000
305
7
16/8/0.120
0.80
5.10±0.15
30
55
1000
305
8
16/8/0.120
0.80
5.50±0.20
30
55
1000
305
9
16/8/0.120
0.85
5.80±0.20
30
55
1000
305
10
16/8/0.120
0.85
6.20±0.20
30
55
1000
305
15
16/9/0.120
0.85
6.90±0.20
30
55
1000
305
25
24/8/0.120
1.00
8.60±0.20
30
55
500
152
37
24/8/0.120
1.00
9.80±0.25
30
55
500
152
50
24/10/0.120
1.00
11.40±0.30
30
55
500
152
UL21143
CSA I/II A
(AWM)22
7/0.252
3
0.25
16/8/0.120
0.80
5.30±0.15
37
67
1000
305
4
16/8/0.120
0.80
5.60±0.15
37
67
1000
305
5
16/8/0.120
0.80
6.10±0.15
37
67
1000
305
6
16/8/0.120
0.80
6.30±0.15
35
63
1000
305
7
16/8/0.120
0.80
6.30±0.15
35
63
1000
305
8
16/8/0.120
0.85
6.90±0.15
35
63
1000
305
9
24/9/0.120
0.85
7.30±0.25
35
63
1000
305
10
24/9/0.120
0.85
7.40±0.25
35
63
1000
305
15
24/9/0.120
0.85
8.30±0.25
35
63
1000
305
25
24/9/0.120
1.00
10.60±0.25
35
63
500
152
37
24/10/0.120
1.00
11.90±0.30
35
63
500
152
50
24/10/0.120
1.00
13.50±0.30
35
51
500
152
UL21143
CSA I/II A
(AWM)18
34/0.176
2
0.40
16/8/0.120
0.80
6.50±0.20
70
120
1000
305
3
16/8/0.120
0.80
6.60±0.20
70
120
1000
305
4
24/8/0.120
0.85
7.30±0.25
70
120
1000
305
5
24/8/0.120
0.85
7.90±0.25
70
120
500
152
A:Capactiance between conductors
B:Capactiance between one conductors and other conductors connected to shield
Note:Capacitance is measured at 1KHz
