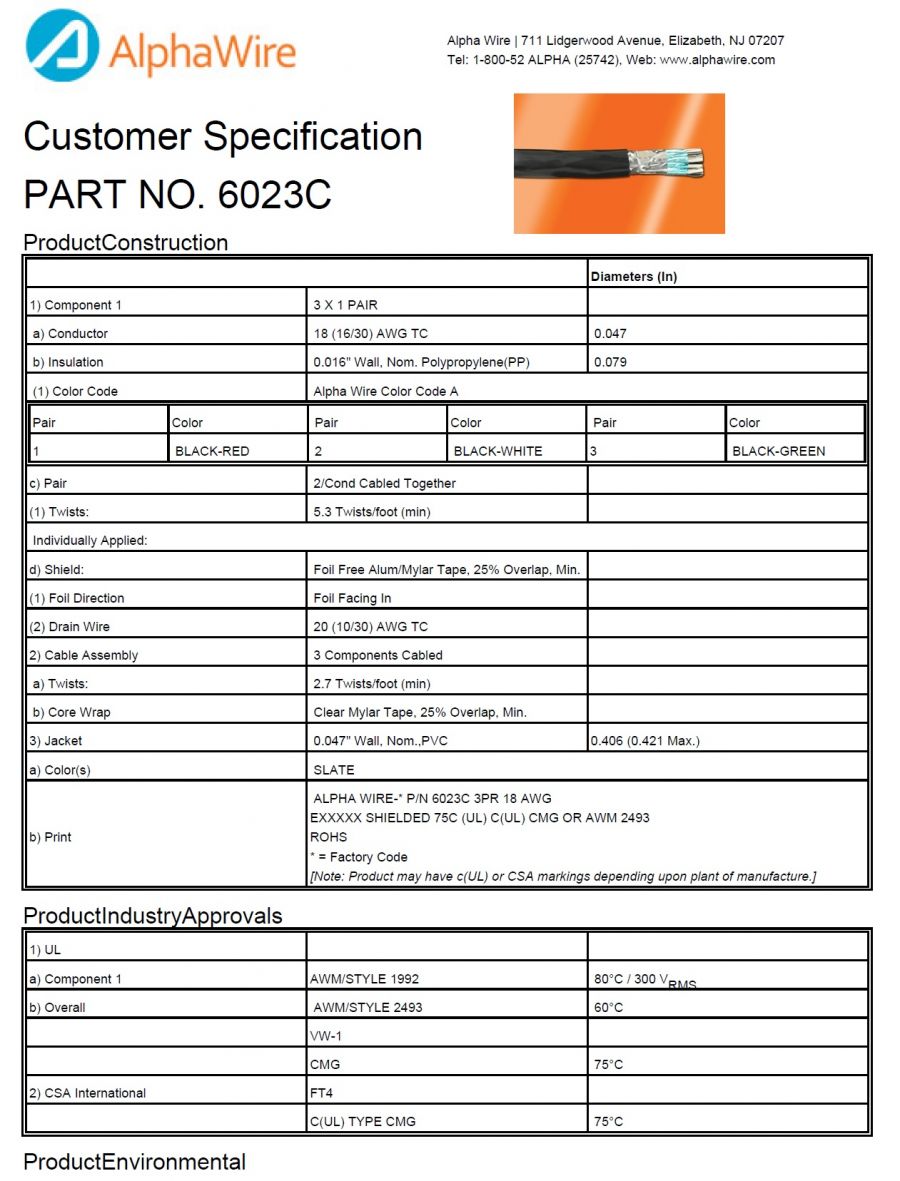

ProductConstruction

		Diameters (In)
1) Component 1	3 X 1 PAIR
a) Conductor	18 (16/30) AWG TC	0.047
b) Insulation	0.016" Wall, Nom. Polypropylene(PP)	0.079
(1) Color Code	Alpha Wire Color Code A
Pair Color Pair Color Pair Color 1 BLACK-RED 2 BLACK-WHITE 3 BLACK-GREEN
c) Pair	2/Cond Cabled Together
(1) Twists:	5.3 Twists/foot (min)
Individually Applied:
d) Shield:	Foil Free Alum/Mylar Tape, 25% Overlap, Min.
(1) Foil Direction	Foil Facing In
(2) Drain Wire	20 (10/30) AWG TC
2) Cable Assembly	3 Components Cabled
a) Twists:	2.7 Twists/foot (min)
b) Core Wrap	Clear Mylar Tape, 25% Overlap, Min.
3) Jacket	0.047" Wall, Nom.,PVC	0.406 (0.421 Max.)
a) Color(s)	SLATE
b) Print	ALPHA WIRE-* P/N 6023C 3PR 18 AWG  EXXXXX SHIELDED 75C (UL) C(UL) CMG OR AWM 2493 ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

ProductIndustryApprovals

1) UL
a) Component 1	AWM/STYLE 1992	80°C / 300 VRMS
b) Overall	AWM/STYLE 2493	60°C
	VW-1
	CMG	75°C
2) CSA International	FT4
	C(UL) TYPE CMG	75°C

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) REACH Regulation (EC 1907/2006):
	This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
3) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

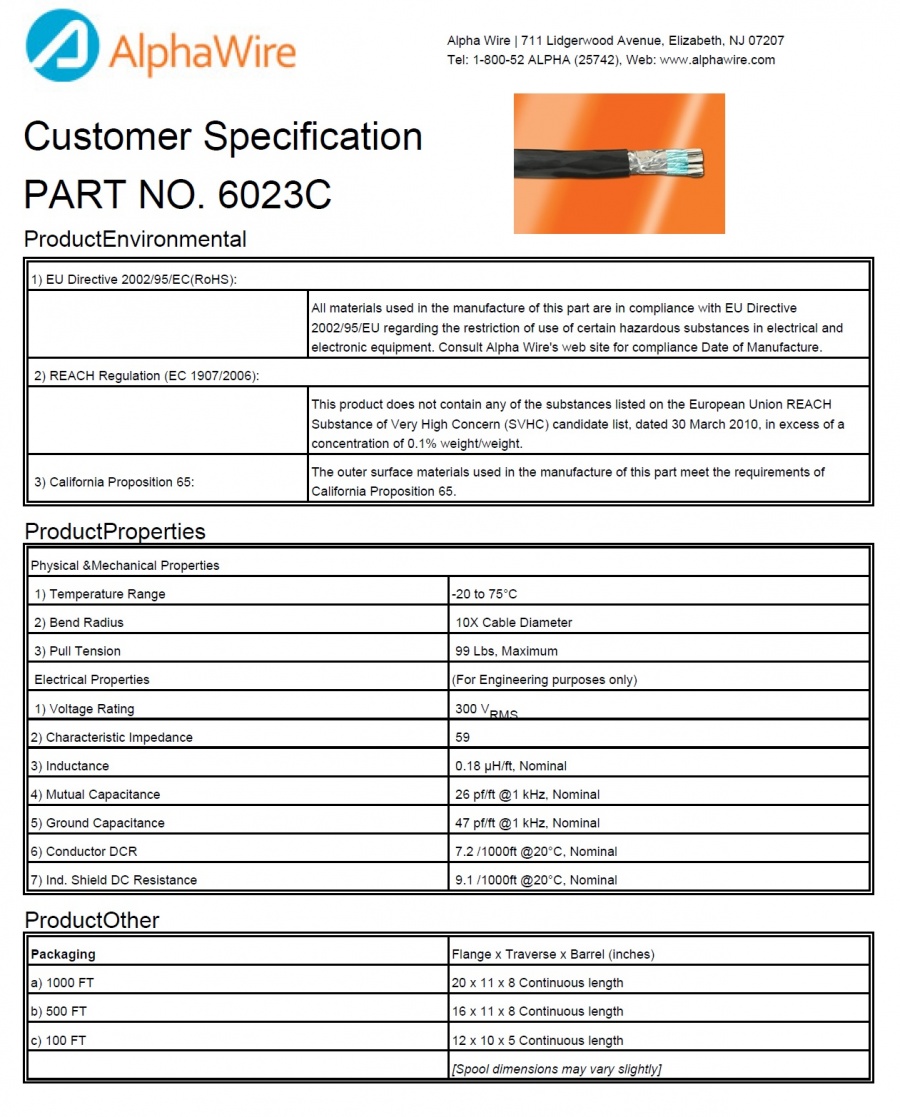

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-20 to 75°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	99 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 VRMS
2) Characteristic Impedance	59 Ω
3) Inductance	0.18 µH/ft, Nominal
4) Mutual Capacitance	26 pf/ft @1 kHz, Nominal
5) Ground Capacitance	47 pf/ft @1 kHz, Nominal
6) Conductor DCR	7.2 Ω/1000ft @20°C, Nominal
7) Ind. Shield DC Resistance	9.1 Ω/1000ft @20°C, Nominal

ProductOther

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	20 x 11 x 8 Continuous length
b) 500 FT	16 x 11 x 8 Continuous length
c) 100 FT	12 x 10 x 5 Continuous length
	[Spool dimensions may vary slightly]

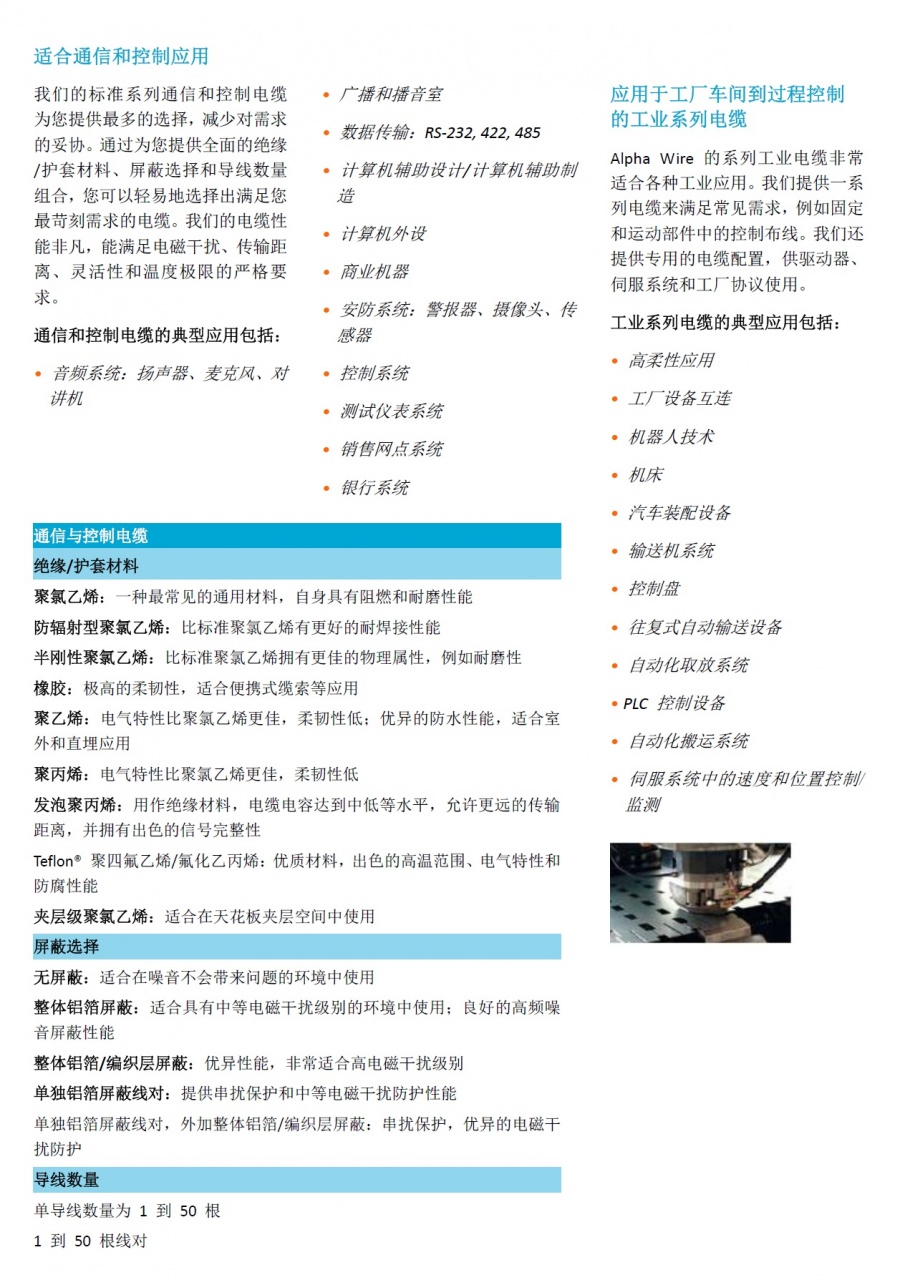

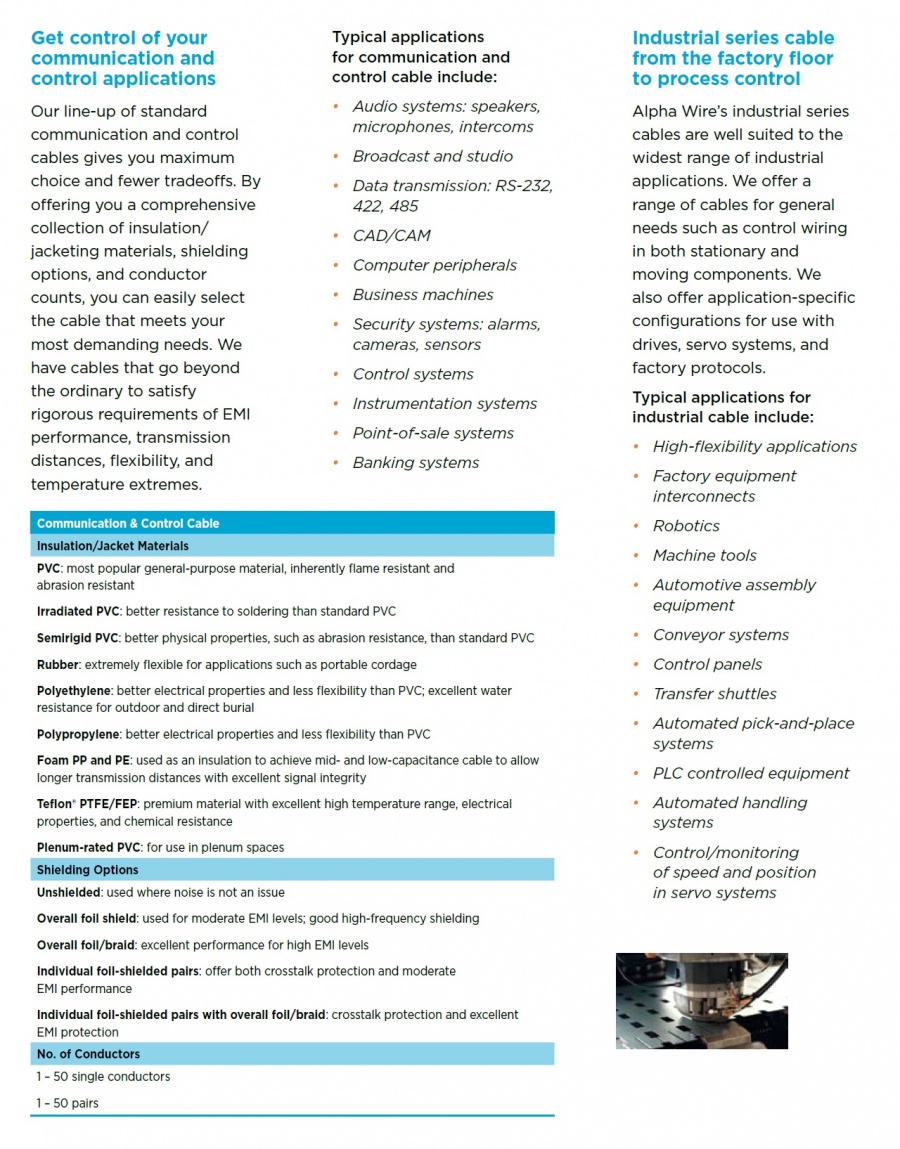

通信和控制应用，尽在掌握之中
