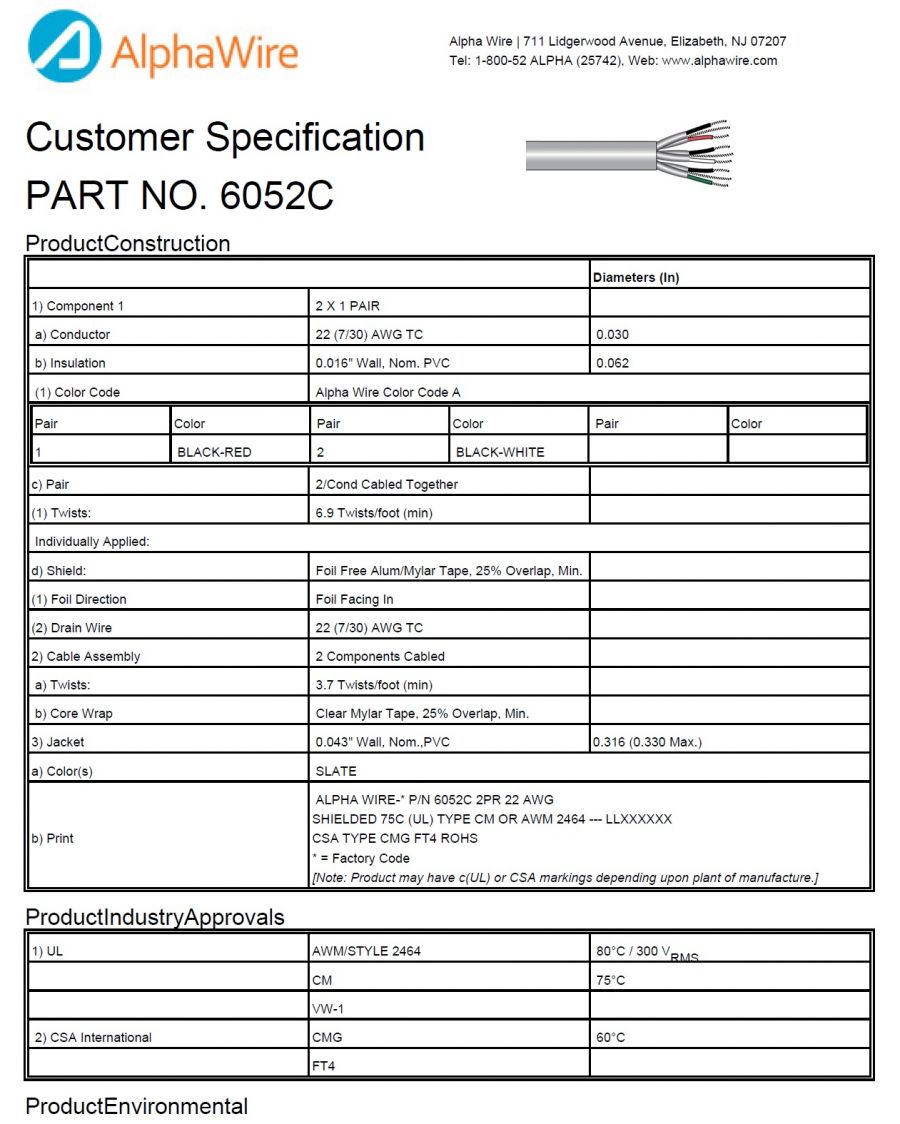

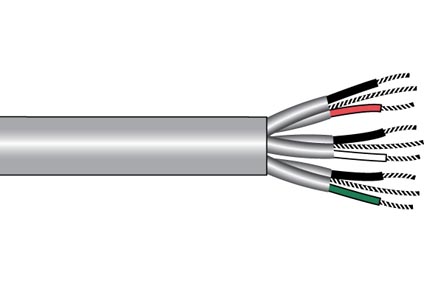

ProductConstruction

		Diameters (In)
1) Component 1	2 X 1 PAIR
a) Conductor	22 (7/30) AWG TC	0.030
b) Insulation	0.016" Wall, Nom. PVC	0.062
(1) Color Code	Alpha Wire Color Code A
Pair Color Pair Color Pair Color 1 BLACK-RED 2 BLACK-WHITE
c) Pair	2/Cond Cabled Together
(1) Twists:	6.9 Twists/foot (min)
Individually Applied:
d) Shield:	Foil Free Alum/Mylar Tape, 25% Overlap, Min.
(1) Foil Direction	Foil Facing In
(2) Drain Wire	22 (7/30) AWG TC
2) Cable Assembly	2 Components Cabled
a) Twists:	3.7 Twists/foot (min)
b) Core Wrap	Clear Mylar Tape, 25% Overlap, Min.
3) Jacket	0.043" Wall, Nom.,PVC	0.316 (0.330 Max.)
a) Color(s)	SLATE
b) Print	ALPHA WIRE-* P/N 6052C 2PR 22 AWG  SHIELDED 75C (UL) TYPE CM OR AWM 2464 --- LLXXXXXX CSA TYPE CMG FT4 ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

ProductIndustryApprovals

1) UL	AWM/STYLE 2464	80°C / 300 VRMS
	CM	75°C
	VW-1
2) CSA International	CMG	60°C
	FT4

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-20 to 80°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	33 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 VRMS
2) Mutual Capacitance	43 pf/ft @1 kHz, Nominal
3) Ground Capacitance	77 pf/ft @1 kHz, Nominal
4) Characteristic Impedance	53 Ω
5) Inductance	0.2 µH/ft, Nominal
6) Conductor DCR	16.5 Ω/1000ft @20°C, Nominal
7) Component Shield DCR	13.8 Ω/1000ft @20°C, Nominal

ProductOther

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	18 x 12 x 8 Continuous length
b) 500 FT	12 x 10 x 5 Continuous length
c) 100 FT	10 x 4 x 3.5 Continuous length
	[Spool dimensions may vary slightly]
