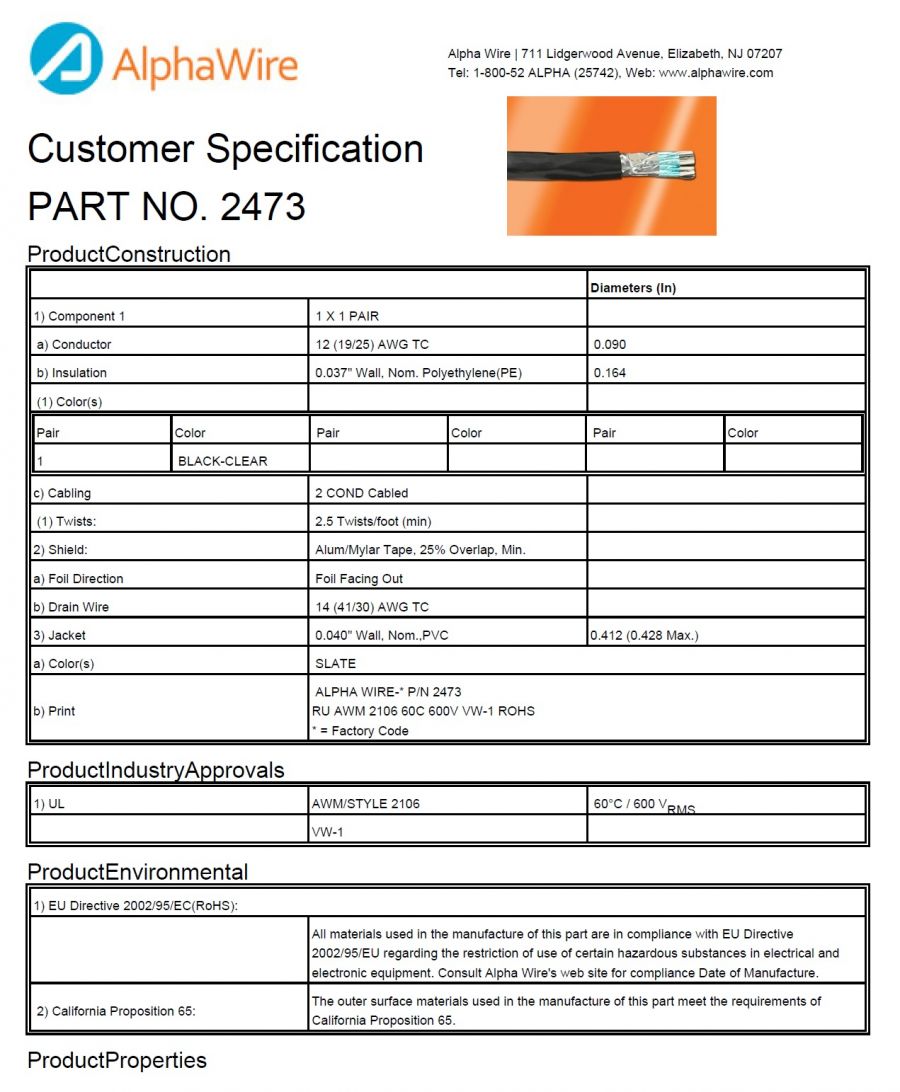

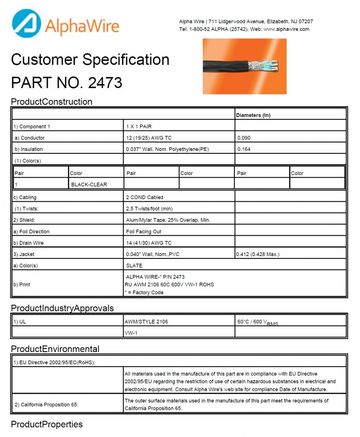

ProductConstruction

		Diameters (In)
1) Component 1	1 X 1 PAIR
a) Conductor	12 (19/25) AWG TC	0.090
b) Insulation	0.037" Wall, Nom. Polyethylene(PE)	0.164
(1) Color(s)
Pair Color Pair Color Pair Color 1 BLACK-CLEAR
c) Cabling	2 COND Cabled
(1) Twists:	2.5 Twists/foot (min)
2) Shield:	Alum/Mylar Tape, 25% Overlap, Min.
a) Foil Direction	Foil Facing Out
b) Drain Wire	14 (41/30) AWG TC
3) Jacket	0.040" Wall, Nom.,PVC	0.412 (0.428 Max.)
a) Color(s)	SLATE
b) Print	ALPHA WIRE-* P/N 2473  RU AWM 2106 60C 600V VW-1 ROHS * = Factory Code

ProductIndustryApprovals

1) UL	AWM/STYLE 2106	60°C / 600 VRMS
	VW-1

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

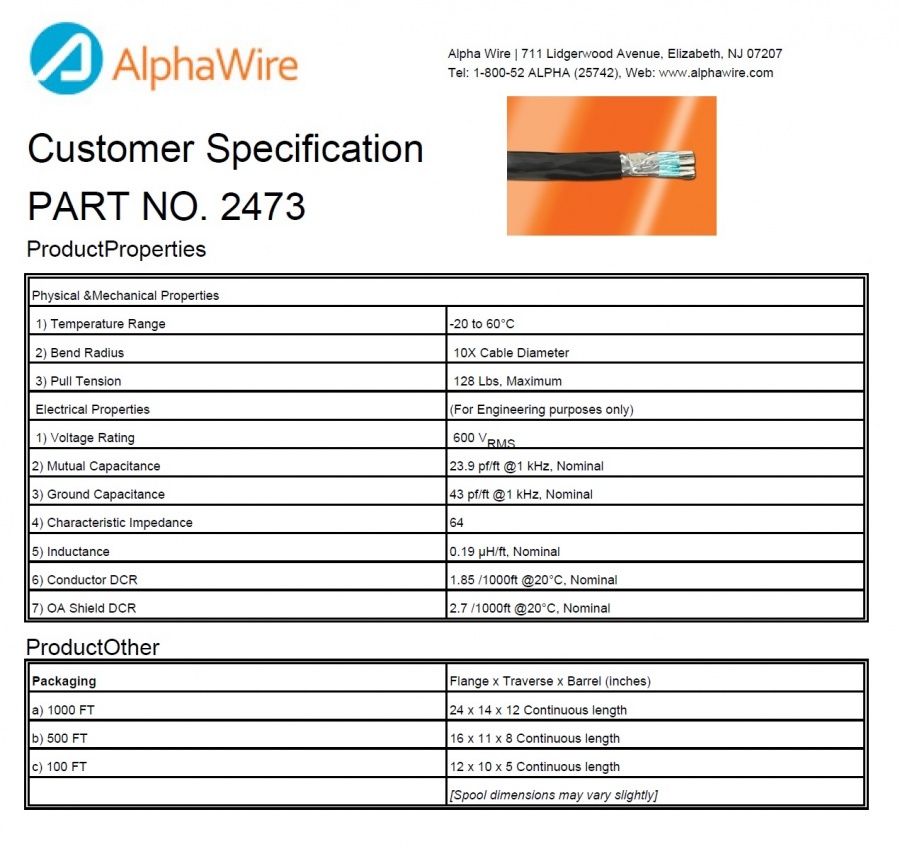

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-20 to 60°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	128 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 VRMS
2) Mutual Capacitance	23.9 pf/ft @1 kHz, Nominal
3) Ground Capacitance	43 pf/ft @1 kHz, Nominal
4) Characteristic Impedance	64 Ω
5) Inductance	0.19 µH/ft, Nominal
6) Conductor DCR	1.85 Ω/1000ft @20°C, Nominal
7) OA Shield DCR	2.7 Ω/1000ft @20°C, Nominal

ProductOther

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	24 x 14 x 12 Continuous length
b) 500 FT	16 x 11 x 8 Continuous length
c) 100 FT	12 x 10 x 5 Continuous length
	[Spool dimensions may vary slightly]

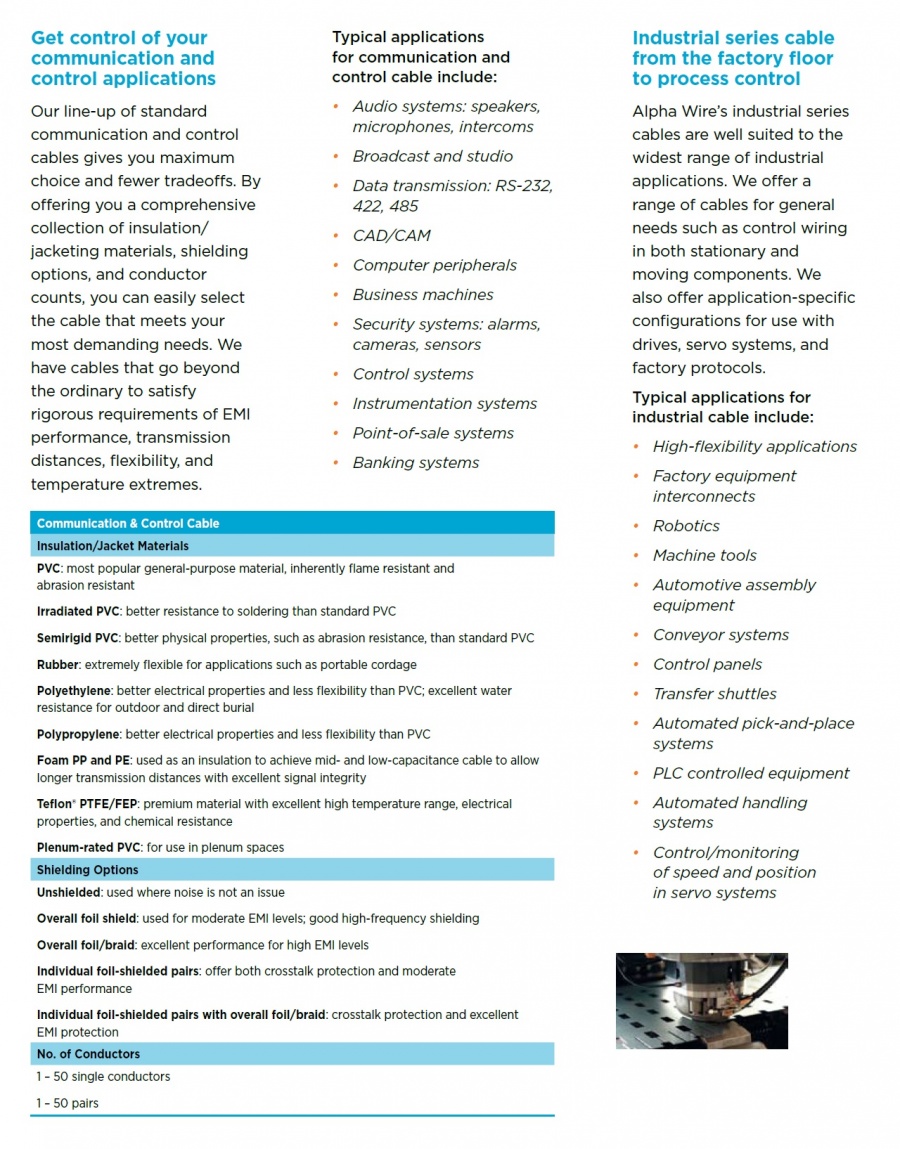

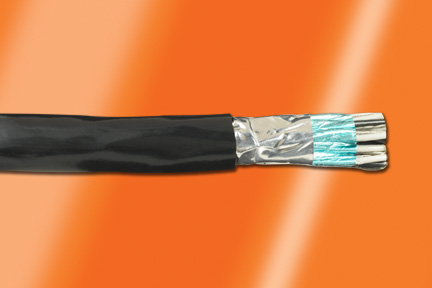

通信和控制应用，尽在掌握之中

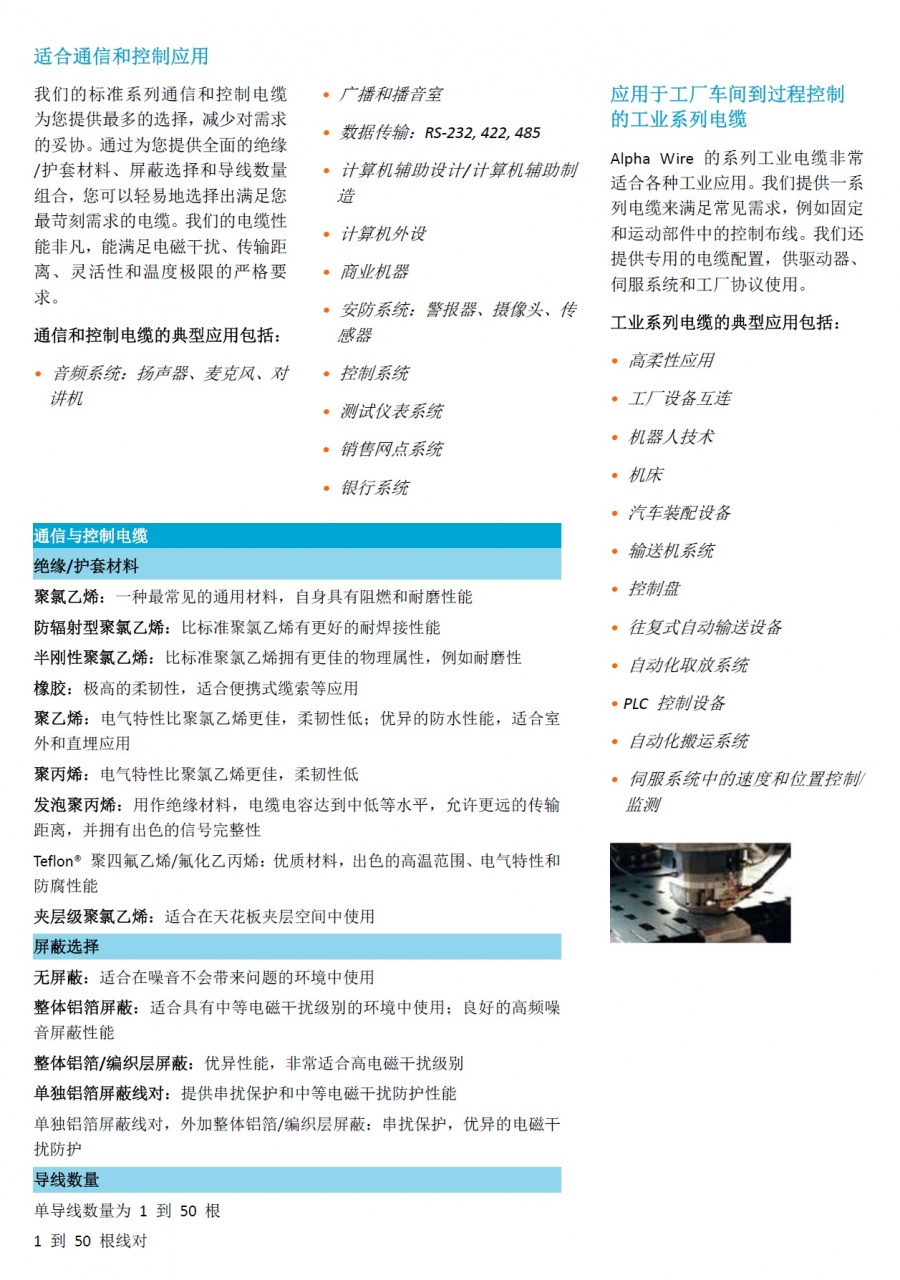

我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。
