    ALPHA-2414C PE-PVC Awg20 x4C 300V FOIL Shielding CA Prop 65, CSA CMG, FT4, UL 2092, VW/1 鋁箔隔離通信和控制电缆
    看原圖
    		ALPHA-2414C



    商品編號: ALPHA-2414C

    ALPHA-2414C PE-PVC Awg20 x4C 300V FOIL Shielding CA Prop 65, CSA CMG, FT4, UL 2092, VW/1 鋁箔隔離通信和控制电缆

    部件号 Type Shielding Voltage AWG # of Elements Jacket Material Insulation Material Jacket Diameter Applicable Specifications
    2414C Multi-Conductor FOIL 300 20 4 PVC PE 0.213 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1

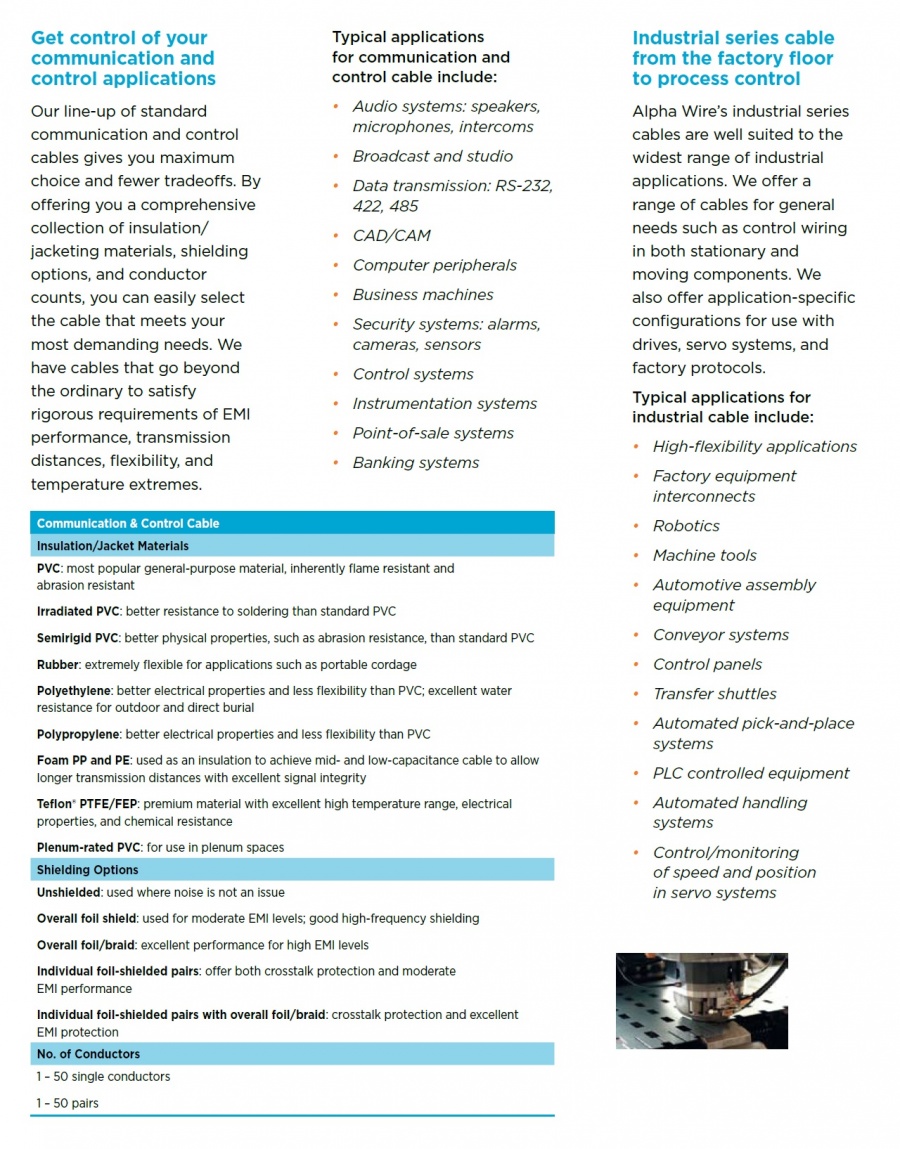

    Communication and Control Typical applications:
    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

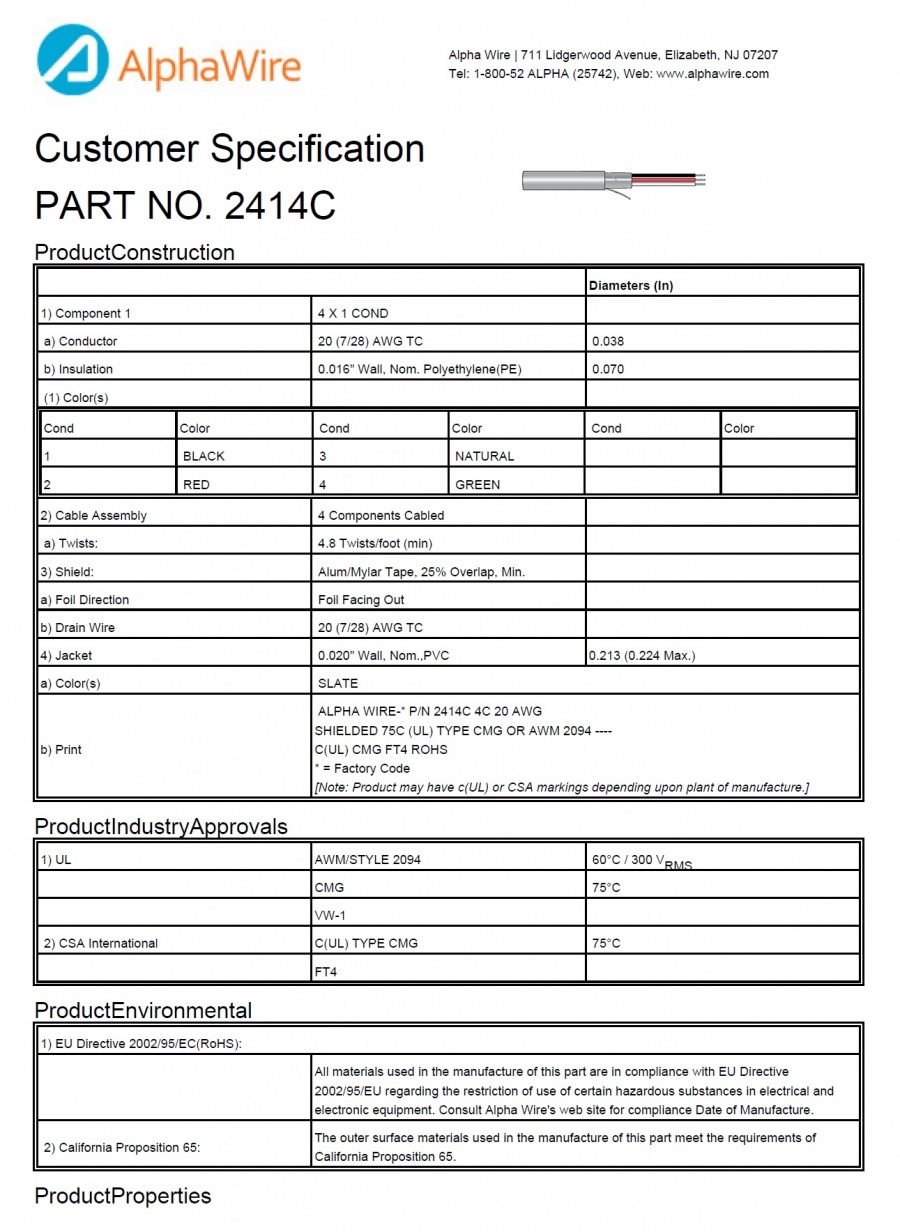

    ProductConstruction
    　 Diameters (In)
    1) Component 1 4 X 1 COND 　
    a) Conductor 20 (7/28) AWG TC 0.038
    b) Insulation 0.016" Wall, Nom. Polyethylene(PE) 0.070
    (1) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 BLACK 3 NATURAL 　 　
    2 RED 4 GREEN 　 　
    2) Cable Assembly 4 Components Cabled 　
    a) Twists: 4.8 Twists/foot (min) 　
    3) Shield: Alum/Mylar Tape, 25% Overlap, Min. 　
    a) Foil Direction Foil Facing Out 　
    b) Drain Wire 20 (7/28) AWG TC 　
    4) Jacket 0.020" Wall, Nom.,PVC 0.213 (0.224 Max.)
    a) Color(s) SLATE
    b) Print ALPHA WIRE-* P/N 2414C 4C 20 AWG
    SHIELDED 75C (UL) TYPE CMG OR AWM 2094 ----
    C(UL) CMG FT4 ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL AWM/STYLE 2094 60°C / 300 VRMS
    　 CMG 75°C
    　 VW-1 　
    2) CSA International C(UL) TYPE CMG 75°C
    　 FT4 　
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

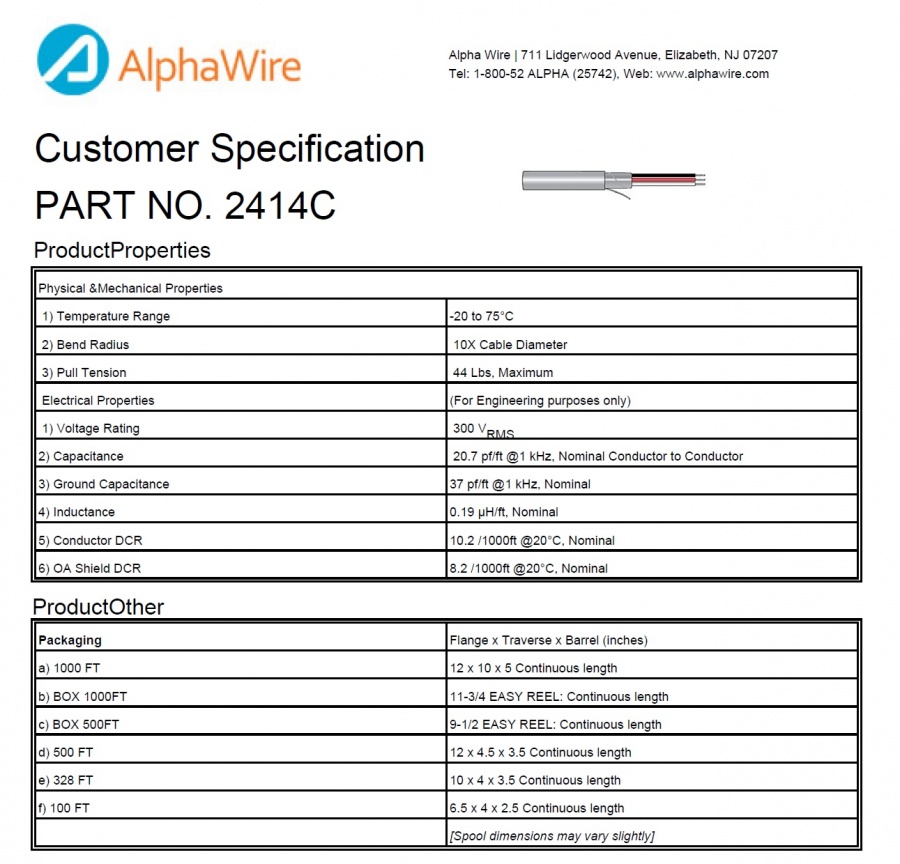

    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -20 to 75°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 44 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Capacitance 20.7 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Ground Capacitance 37 pf/ft @1 kHz, Nominal
    4) Inductance 0.19 µH/ft, Nominal
    5) Conductor DCR 10.2 Ω/1000ft @20°C, Nominal
    6) OA Shield DCR 8.2 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 10 x 5 Continuous length
    b) BOX 1000FT 11-3/4 EASY REEL: Continuous length
    c) BOX 500FT 9-1/2 EASY REEL: Continuous length
    d) 500 FT 12 x 4.5 x 3.5 Continuous length
    e) 328 FT 10 x 4 x 3.5 Continuous length
    f) 100 FT 6.5 x 4 x 2.5 Continuous length
    　 [Spool dimensions may vary slightly]

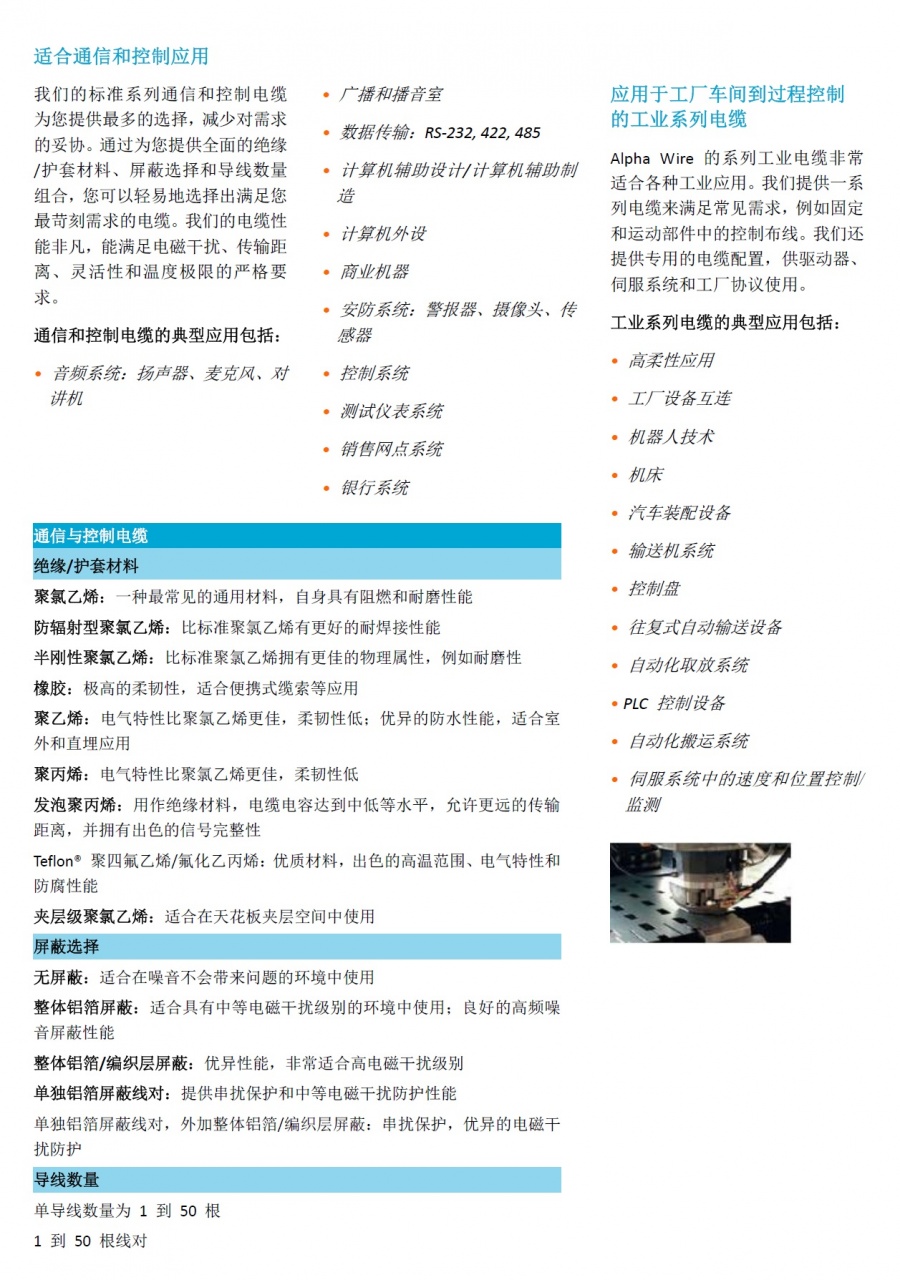

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。

    符合性证明
    敬启者：
    Alpha Wire 部件号：2414C
    2414C ，符合RoHS标准，以 2004/11/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson
    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements

    　

    		 Jacket Material

    　

    		 Insulation Material

    　

    		 Jacket Diameter
    2403C Multi-Conductor FOIL 300 22 3 PVC PE 0.178 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2404C Multi-Conductor FOIL 300 22 4 PVC PE 0.194 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
    2411C Multi-Conductor FOIL 300 20 2 PVC PE 0.184 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CM, UL VW/1
    2412C Multi-Conductor FOIL 300 20 2 PVC PE 0.184 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2413C Multi-Conductor FOIL 300 20 3 PVC PE 0.195 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2414C Multi-Conductor FOIL 300 20 4 PVC PE 0.213 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
    2421C Multi-Conductor FOIL 300 18 2 PVC PE 0.202 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2422C Multi-Conductor FOIL 300 18 2 PVC PE 0.202 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2423C Multi-Conductor FOIL 300 18 3 PVC PE 0.214 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2424C Multi-Conductor FOIL 300 18 4 PVC PE 0.235 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
    2432C Multi-Conductor FOIL 300 16 2 PVC PE 0.226 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
    2433C Multi-Conductor FOIL 300 16 3 PVC PE 0.24 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
    2442C Multi-Conductor FOIL 150 14 2 PVC PE 0.292 CA Prop 65, CSA AWM II A, CSA FT4, UL CL2
    2444C Multi-Conductor FOIL 150 12 2 PVC PE 0.33 CA Prop 65, CSA AWM II A, CSA FT4, UL CL2
    2460C Multi-Conductor FOIL 300 22 2 PVC PP 0.126 CA Prop 65, CSA CMG, CSA FT4, UL CM
    2461C Multi-Conductor FOIL 300 22 2 PVC PP 0.136 CA Prop 65, CSA CMG, CSA FT4, UL CMG
    2466C Multi-Pair FOIL 300 22 2 PVC PP 0.17 CA Prop 65, CSA CMG, UL CM
    2468 Composite FOIL 400 25+25 3 PVC PE 0.165 CA Prop 65, UL AWM 1598
    2471 Pair FOIL 600 16 1 PVC PE 0.314 CA Prop 65, UL AWM 2106, UL VW/1
    2472 Pair FOIL 600 14 1 PVC PE 0.344 CA Prop 65, UL AWM 2106, UL VW/1
