    10G-Plus LAN S/FTP CAT.7 4Pair/ 23AWG CAT-7 鋁箔銅網(雙隔離)網路線
    看原圖
    		代碼 C7-SF



    商品編號: C7-SF

    10G-Plus LAN S/FTP CAT.7 4Pair/ 23AWG CAT-7 鋁箔銅網(雙隔離)網路線

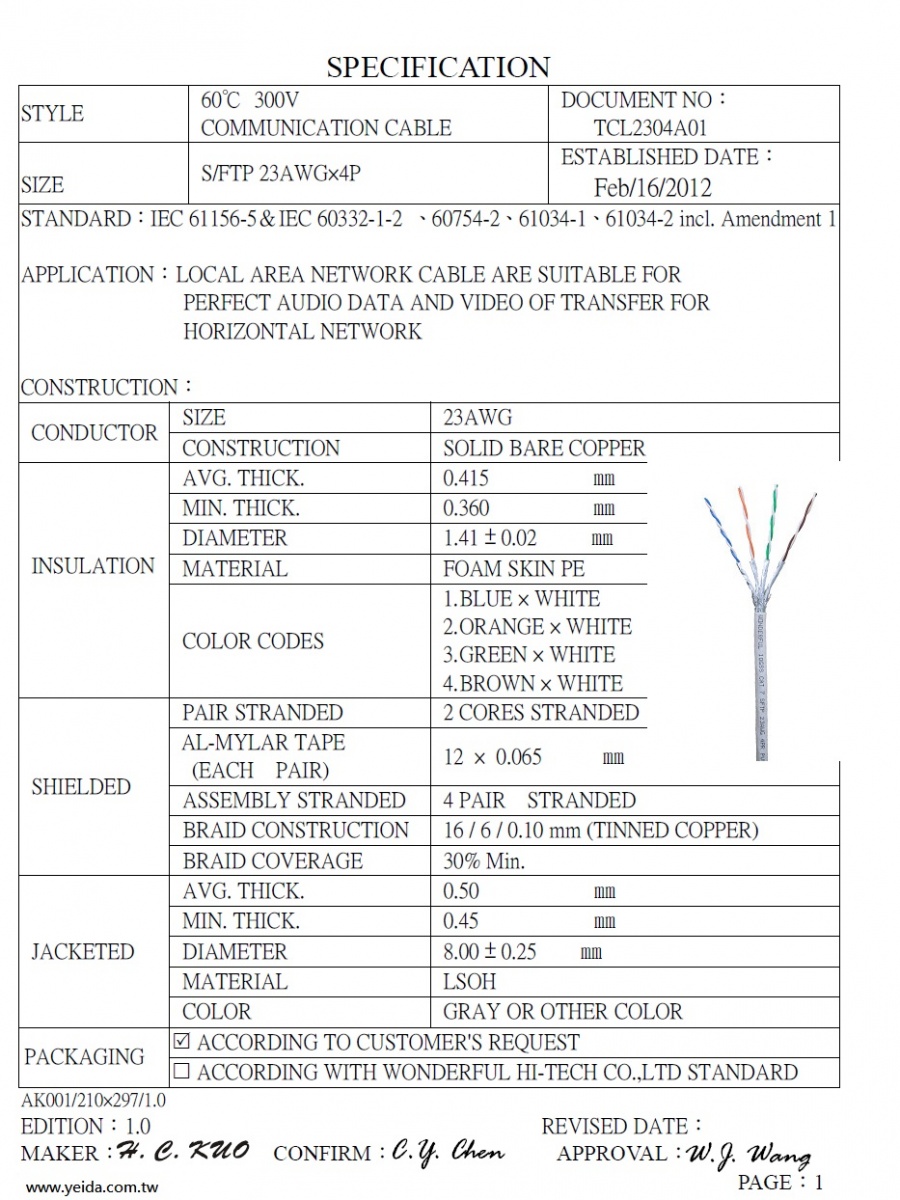

    10G-Plus LAN S/FTP CAT.7 4Pair/ 23AWG
    。IEC 61156-5＆IEC 60332-1-2、60754-2、61034-1、61034-2,incl.Amendment 1

    = Conductor : Solid Bare Copper (23AWG)

    = Insulation : Foamskin PE

    = Twisting :  2 cores to the pair

    = Foil : Laminated aluminium-polyester (Aluminium facing outside)

    = Shielded : 4, all twisted together

    = Braid : Solid tinned copper (≥ 30% coverage)

    = Jacket : LSZH


    PRODUCT NO.

    DIAMETER

    FLAME RATING

    Packaging

    (mm/inch)

    　

    Put-Up

    TCL2304A01

    8.0 / 0.314

    LSZH

    1,000FT Reel

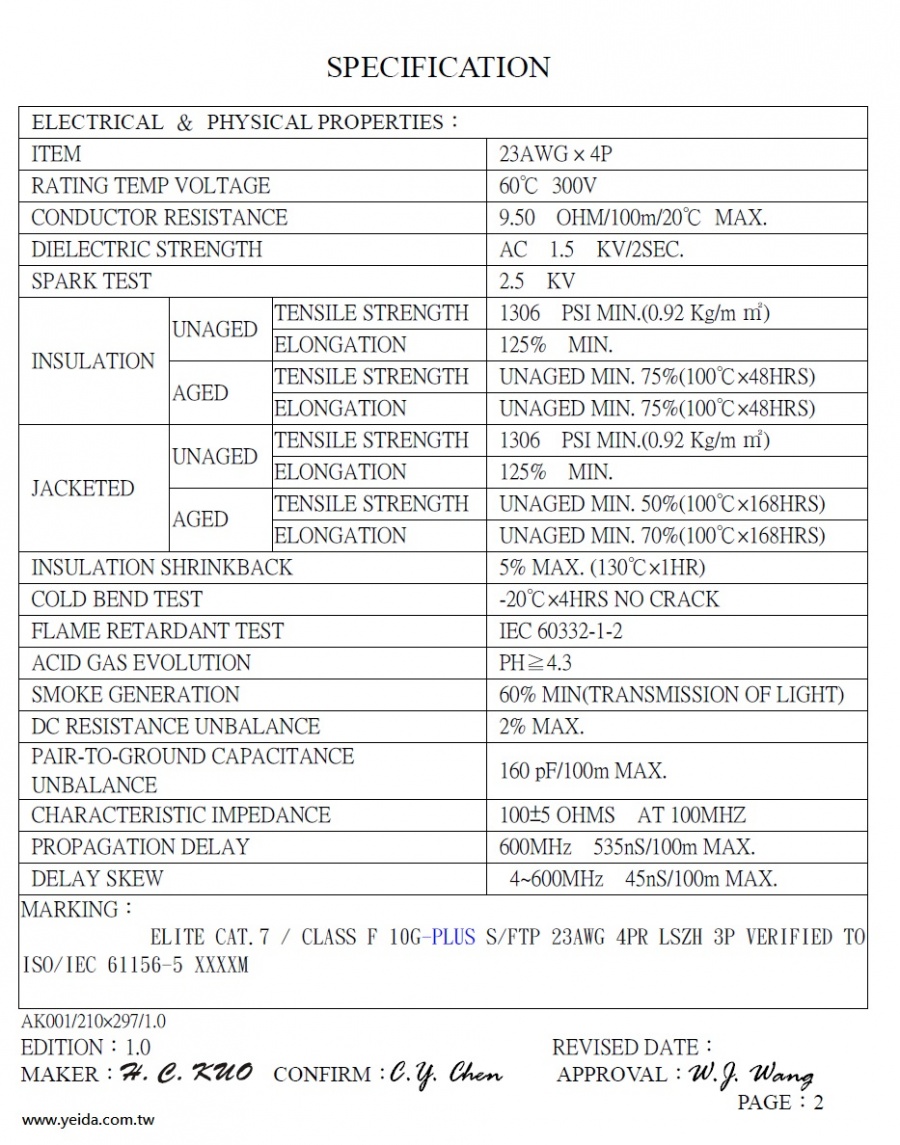

    = Characteristic Impedance : 100 ± 5Ω (@100MHz)

    = DC Resistance, Unbalance of a Pair : 2%  MAX

    = Capacitance Unbalance(Pair to Ground) : 160pF/100m MAX

    = Delay Skew : 45 ns/100m MAX

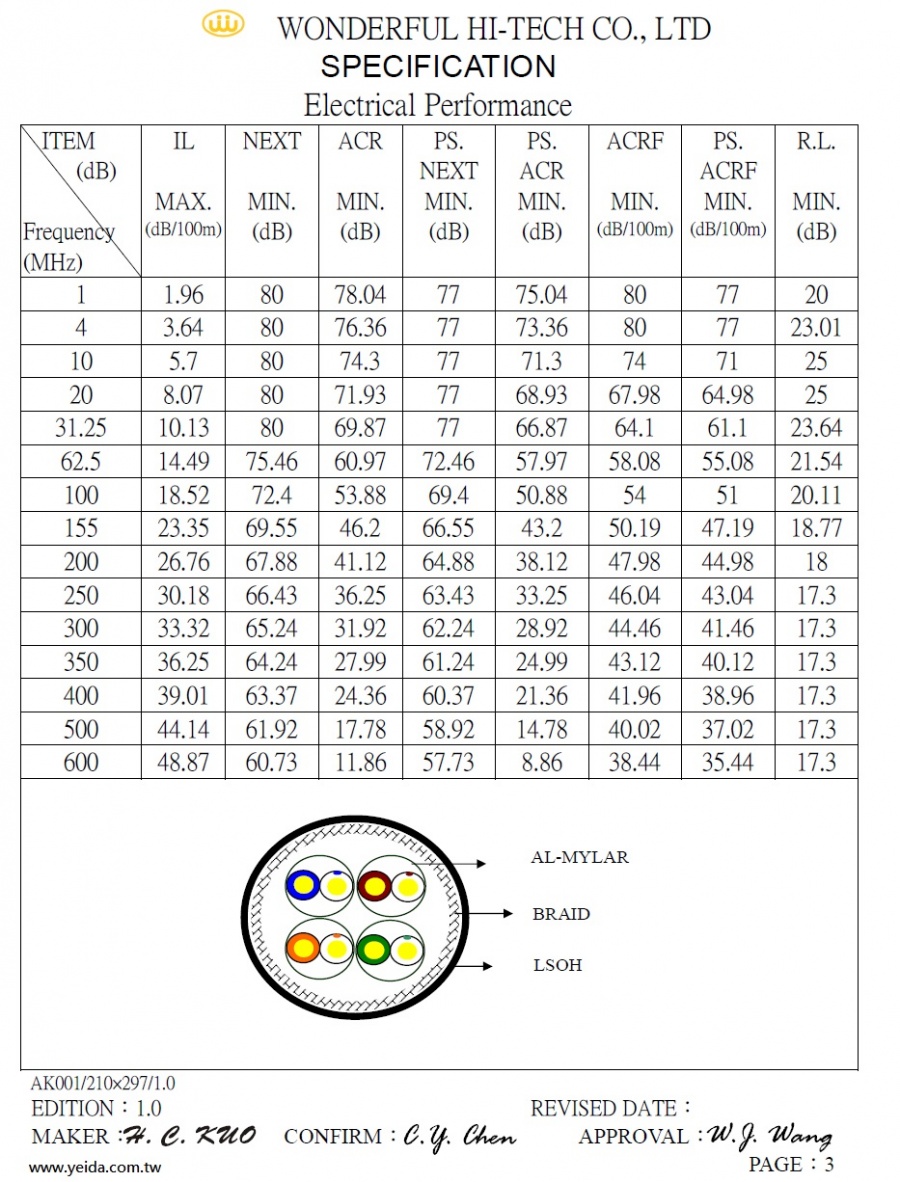

    REFERENCE ELECTRICAL CHARACTERISTICS



    FREQ

    INS LOSS

    NEXT

    ACR

    PS. NEXT

    PS. ACR

    ACRF

    PS. ACRF

    RETURN

    LOSS

    (MHz)

    (dB/100m)

    (dB)

    (dB)

    (dB)

    (dB)

    (dB/100m)

    (dB/100m)

    (dB)

    　

    max

    min

    min

    min

    min

    min

    min

    min

    1

    1.96

    80

    78.04

    77

    75.04

    80

    77

    20

    4

    3.64

    80

    76.36

    77

    73.36

    80

    77

    23.01

    10

    5.7

    80

    74.3

    77

    71.3

    74

    71

    25

    20

    8.07

    80

    71.93

    77

    68.93

    67.98

    64.98

    25

    31.25

    10.13

    80

    69.87

    77

    66.87

    64.1

    61.1

    23.64

    62.5

    14.49

    75.46

    60.97

    72.46

    57.97

    58.08

    55.08

    21.54

    100

    18.52

    72.4

    53.88

    69.4

    50.88

    54

    51

    20.11

    155

    23.35

    69.55

    46.2

    66.55

    43.2

    50.19

    47.19

    18.77

    200

    26.76

    67.88

    41.12

    64.88

    38.12

    47.98

    44.98

    18

    250

    30.18

    66.43

    36.25

    63.43

    33.25

    46.04

    43.04

    17.3

    300

    33.32

    65.24

    31.92

    62.24

    28.92

    44.46

    41.46

    17.3

    350

    36.25

    64.24

    27.99

    61.24

    24.99

    43.12

    40.12

    17.3

    400

    39.01

    63.37

    24.36

    60.37

    21.36

    41.96

    38.96

    17.3

    500

    44.14

    61.92

    17.78

    58.92

    14.78

    40.02

    37.02

    17.3

    600

    48.87

    60.73

    11.86

    57.73

    8.86

    38.44

    35.44

    17.3





    =LOCAL AREA NETWORK CABLE ARE SUITABLE FOR PERFECT AUDIO DATA AND VIDEO OF TRANSFER FOR

      HORIZONTAL NETWORK
