商品編號: IDA-UL3135
UL 3135 Silicone Wire / シリコーンワイアー 耐高溫矽橡膠電線, 600V, -60度 到 +200度
Product Application
- The wire can be used in various thermal places ranging from household appliances, lighting devices, industrial machines, to high-temperature furance.
TECHNICAL DATA
- Nominal voltage: 600V-AC
- Temperature range: -60oC ~ +200 oC
- O.D. Tolerance: ±0.1mm
- Testing voltage: 1500V/2000V

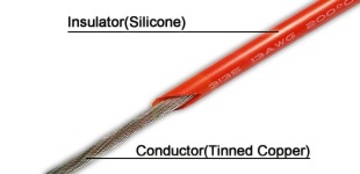

- Conductor: Tinned Copper
- Insulator: Silicone
- Braid Colours: White Blue Red Black Brown Yellow Green Yellow Green
Specifications
Conductor |
Insulator |
Electrical Characteristic |
Packing |
AWG |
Composition
NO. x mm |
Cross section area mm |
Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Maximum Resistance at 20℃ ohm/km |
Intens. Max 1. maxa 170℃-AMR |
Mt/ Coils |
26 |
7 x 0.18
16 x 0.1 |
0.18 |
0.55 |
0.75 |
2.05 |
152.00 |
1.50 |
610 |
24 |
7 x 0.20
26 x 0.1 |
0.22 |
0.61 |
0.75 |
2.11 |
88.60 |
2.00 |
610 |
22 |
7 x 0.254
12 x 0.18 |
0.36 |
0.80 |
0.75 |
2.3 |
62.50 |
3.00 |
610 |
20 |
7 x 0.40
20 x 0.18 |
0.56 |
0.92 |
0.75 |
2.42 |
39.50 |
5.00 |
305 |
18 |
7 x 0.40
30 x 0.18 |
0.84 |
1.20 |
0.75 |
2.7 |
24.40 |
7.00 |
305 |
16 |
7 x 0.50
50 x 0.18 |
1.37 |
1.53 |
0.75 |
3.03 |
15.60 |
12.00 |
305 |
14 |
45 x 0.32 |
1.96 |
1.80 |
0.78 |
3.36 |
9.80 |
17.00 |
200 |
12 |
43 x 0.32 |
3.62 |
2.48 |
1.00 |
4.48 |
6.30 |
23.00 |
200 |
|
